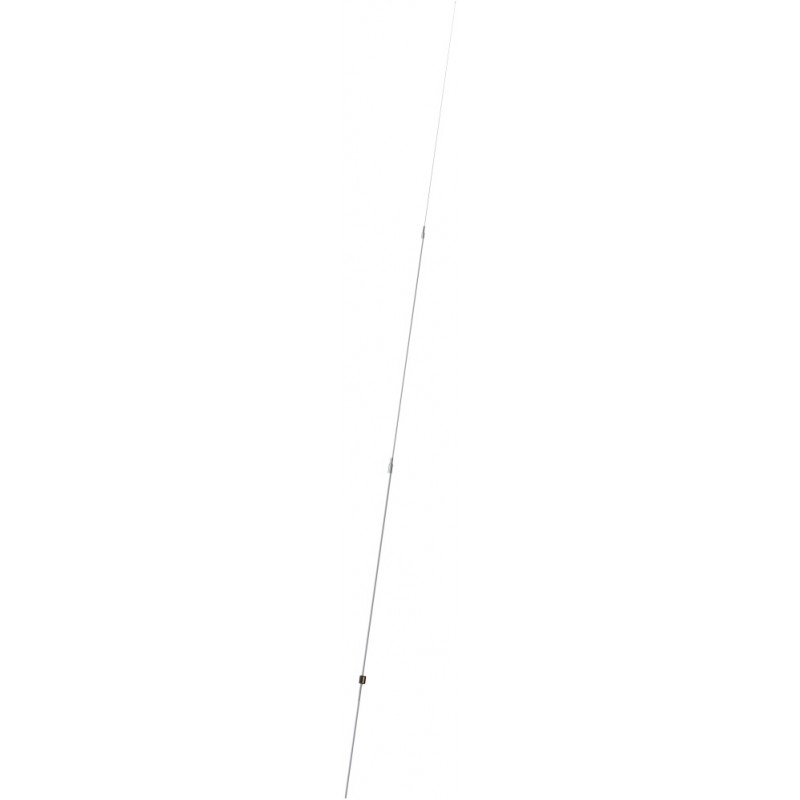

Scan Antenna HF9200 RX 9 m three-part LF/HF Fibreglass Antenna with coaxial connection box, with brackets (13920-012)

Product Overview

• High-Performance HF Antenna: A 9-meter HF antenna with a built-in matching transformer for enhanced low-frequency reception.
• Professional Design: Ideal for demanding applications, featuring a rugged construction with chrome-plated solid brass joints.
• Rail Mounting Compatibility: Designed for installation on rail or pole setups using a Rail Bracket Kit (Large).
• Efficient Signal Reception: Equipped with a screw terminal inside a connection box, supporting standard coaxial cables (Ø 5 - 10 mm).
• Omni-Directional Receiving Pattern: Provides 360-degree reception for consistent signal quality.

Packaging Details

• Packaging Type: Sturdy carton tube for safe shipping.
• Dimensions: Ø 106 mm x 3850 mm.
• Weight: Approximately 12.7 kg.

Electrical Specifications

• Frequency Range: Covers 0.15 to 30 MHz, including LF, MF, and HF bands.
• Impedance: 50 Ohm for efficient signal transfer.
• Polarisation: Vertical for optimal reception performance.
• Maximum Input Power: Not applicable (receive-only antenna).
• Static Capacitance: 100 pF, ensuring stability.
• Insulation Resistance: 10 GOhm to minimize noise and signal loss.
• Electric Length: 7870 mm for enhanced reception.

Mechanical Details

• Color: White for a clean, professional appearance.
• Height: 9 meters.
• Weight: 7.2 kg.
• Diameter: Tapers from Ø 40 mm to Ø 5 mm.
• Mounting Method: Suitable for rail or pole installations (Ø 30 - 90 mm) with the required bracket kit.
• Mounting Instructions: Provided with the product for easy setup.
• Materials: Manufactured using PU-painted heavy-duty glass-fiber tubes and chromed solid brass for durability.
• Wind Resistance: Withstands survival wind speeds of up to 55 m/s (125 mph).
• Temperature Range: Operates reliably between -55°C and +70°C, compliant with IEC 60068-2-1 and IEC 60068-2-2 standards.
• Connector: Screw terminal inside a connection box for secure connections.
• Cable: Not included; requires a standard coaxial cable (Ø 5 - 10 mm).
• Serial Number: Clearly marked on the product label for identification.

Ordering Information

• Part Number: 13920-012 (brackets included).
