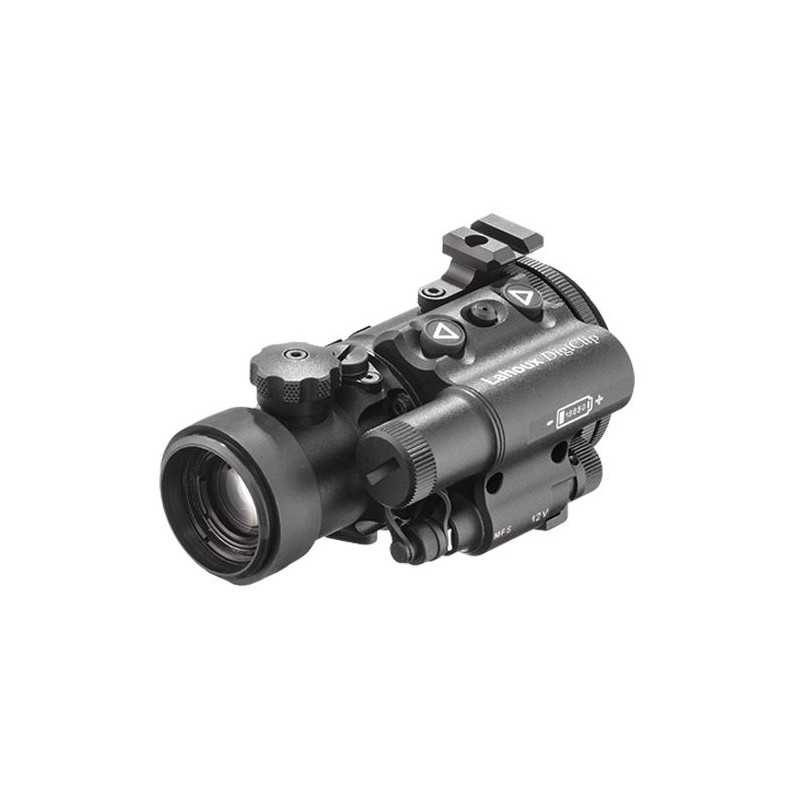

Lahoux DigiClip Camera

The Lahoux DigiClip is one of the smallest and lightest digital night vision attachments in the world. The Sony HD sensor enables a high-contrast, stable and clear image when used at night, even at long ranges, which is shown on a 1280×960 HD display. The units are rugged (IPX&), high recoil resistance even for large calibres (up to .375 H&H), accurate (usually no zeroing is required) and repeatable (less than 0.3 MOA).

Comes standard with the following accessories:

Carrying bag, User manual, Charger + USB Cable, 2x CR-123 Battery, Ocular.

Advantages

Increased detection during night and twilight

Proven reliability and durability

Super simple operation without any complicated menu or special settings

1280×720 HD sensor with a 1280×960 HD OLED display

Very high recoil resistance with heavy calibres such as 12 cal., 9.3×64, .375 H&H Magnum

Several IR illuminators can be used for improved night time imaging which are also available from Lahoux Optics

Great repeatability with not more than 0.3 MOA divergence when repeatedly dismounted and mounted

Can be used with USB power banks

Video out-connector. Can be used together with the power bank PB2R with built in recorder

Technical specifications

Technical

CMOS 1/2″, 1280×720, PAL Sensor type

0.4 to 1.1 µm Spectral range

50 Hz Frame rate

0.0001 to 30,000 Lux Sensitivity

67 lp/mm Resolution

1x Clip-on visual magnification

4× Eyepiece visual magnification

1-12× Day sight recommended magnification

36 mm F/1.4 Lens

6m to ∞ Lens focusing range

400 m Detection range (boar)

Colour OLED 1280×960 pixels Display

9°×12° FOV

+3 to-3 D Diopter adjustment

Lahoux or Rusan adapter M52x0.75 mm Quick release adapter

1 × 18650 Battery

4 hours (at 24 °C) * Battery runtime

3.2-15 V External power

480 g Weight (without battery)

128×60×70 mm Dimensions

-20°C – +50°C Working temperature range

IPX6 Protection class IEC 60529

500 g Max. recoil energy

* Depending on the usage conditions
