AGM Rattler TC50-640 - Thermal Clip-On System
2059.35 £ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

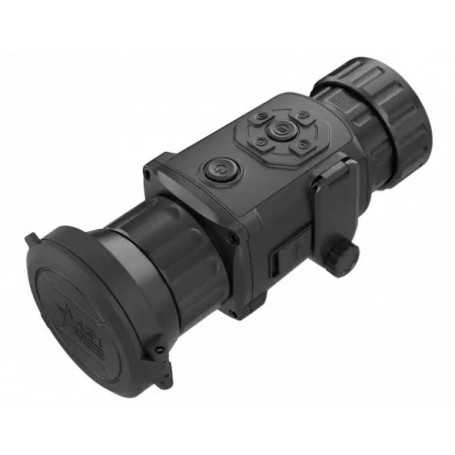

AGM Rattler TC50-640 High-Performance Thermal Imaging Clip-On System
The AGM Rattler TC50-640 is a versatile and compact thermal imaging clip-on system designed to transform your daytime optics into a high-precision thermal imaging device effortlessly. Perfect for use in challenging environments, this advanced system is ideal for scenarios such as patrolling and hunting. With its sophisticated technology, the Rattler TC50-640 ensures a clear image even in darkness, fog, smoke, and other adverse conditions.
Key Features:
- Easy Conversion: Quickly converts day optics into a thermal imaging scope without special tools.
- High Sensitivity: 12μm detector with 640×512 thermal resolution.
- High-Quality Display: 1024x768 resolution on a 0.39-inch OLED monitor.
- Long-Range Capability: Compatible with rifle scopes up to 8x magnification.
- Onboard Wi-Fi: Stream live video and record video/images via an app.
- Durable Design: Waterproof and shockproof, built to withstand rigorous conditions.
- Extended Battery Life: Up to 4.5 hours of continuous operation.
- Storage: Built-in 16 GB EMMC for video recording and snapshots.
- Warranty: Comes with a limited 3-year warranty.
Specifications:
- Color Palettes: Black Hot, White Hot, Red Hot, Fusion
- Shock and Vibration: 750 g/ms
- Exit Pupil Diameter: 22 mm
- Distance Measurement: Yes (Stadiometric Rangefinder)
- Scene Mode: Jungle, Recognition
- Hotspot Detection: Yes
- Detector Type: 12 μm VOx Uncooled Focal Plane Arrays
- Response Waveband: 8 μm to 14 μm
- Flat Field Correction: Auto, Manual, External
- Temperature Tracking: Highest Temperature Spot Tracking
- Standby Mode: Yes
- Refresh Rate: Sensor 50 Hz / OLED 50 Hz
- Detection Range: 2,500m/yd
- Lens System: 50 mm, F1.0
- Optical Magnification: 1x
- Power Supply: 5 VDC/2 A, USB Type-C interface, supports external power supply
- Field of View: 8.8° x 7.0°
- Monitor: 1024x768, 0.39 inch, OLED
- Battery Type: Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
- Battery Operating Time: Up to 4.5 hours continuous (@25°C, WiFi off), 4.0 hours (@25°C, WiFi on)
- Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Weight: 0.49 kg (1.08 lb)
- Dimensions: 153 mm × 78 mm × 66 mm (6.0 × 3.1 × 2.6 in)
- Protection Level: IP67
With its cutting-edge technology and robust features, the AGM Rattler TC50-640 is the perfect solution for those seeking reliable thermal imaging capabilities in a compact and easy-to-use package.
