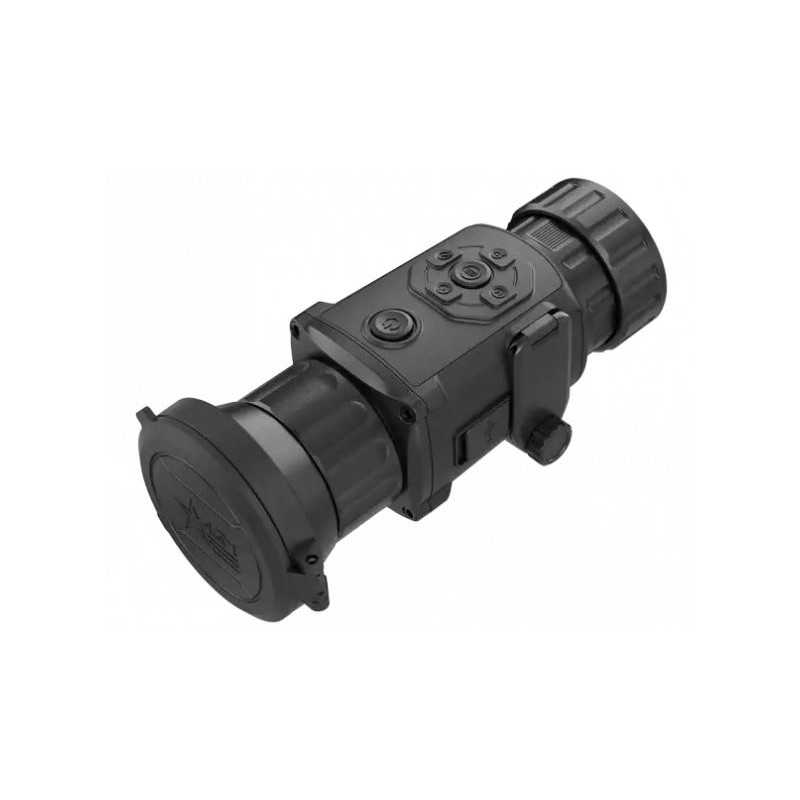

AGM Rattler TC50-640 - Thermal Clip-On System
Introducing the AGM Rattler TC50-640, a cutting-edge thermal clip-on system designed to enhance your night vision capabilities. Equipped with a 12µm VOx Uncooled Focal Plane Array detector, this device offers an impressive refresh rate of 50 Hz and a high-resolution image of 640x512 pixels. With a field of view (FOV) of 8.8° x 7.0°, the Rattler TC50-640 ensures optimal clarity and coverage for your nighttime adventures. Whether you're hunting, monitoring wildlife, or ensuring security, this is the ideal upgrade for your night vision equipment. Part Unit: 3092756006TC51.
2655 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM Rattler TC50-640 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC50-640 has high sensitivity 12μm thermal detector with 640×512 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC50-640 can easily be attached in front of rifle scopes with magnification up to 8x for long range use.
Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
- Quick conversion of daytime optics into thermal imaging scope
- 12μm high sensitivity detector
- 640x512 thermal resolution
- 1024x768 resolution 0.39-inch OLED display
- 8x digital zoom
- Video recording and snapshot, built-in EMMC (16 GB)
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- Limited 3-year warranty
SPECIFICATIONS
Palettes Black Hot, White Hot, Red Hot, Fusion
Shock and vibration 750 g/ms
Exit Pupil Diameter 22 mm
Distance Measurement Yes (Stadiometric Rangefinder)
Scene Mode Jungle, Recognition
Hotspot Yes
Detector type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate Sensor 50 Hz / OLED 50 Hz
Resolution 640 x 512
Detection Range 2,500m/yd
Lens system 50 mm, F1.0
Optical magnification 1x
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting Optional Front Quick Release Adapters for different front lens diameter or Quick
Field of view (H × X) 8.8° x 7.0°
Monitor 1024x768, 0.39 inch, OLED
Storage Built-in 16 GB EMMC
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Operating Time Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display Yes
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Weight 0.49 kg (1.08 lb)
Overall Dimensions 153 mm × 78 mm × 66 mm (6.0 × 3.1 × 2.6 in)
Protection Level IP67
Data sheet
