AGM TMAIM Laser System

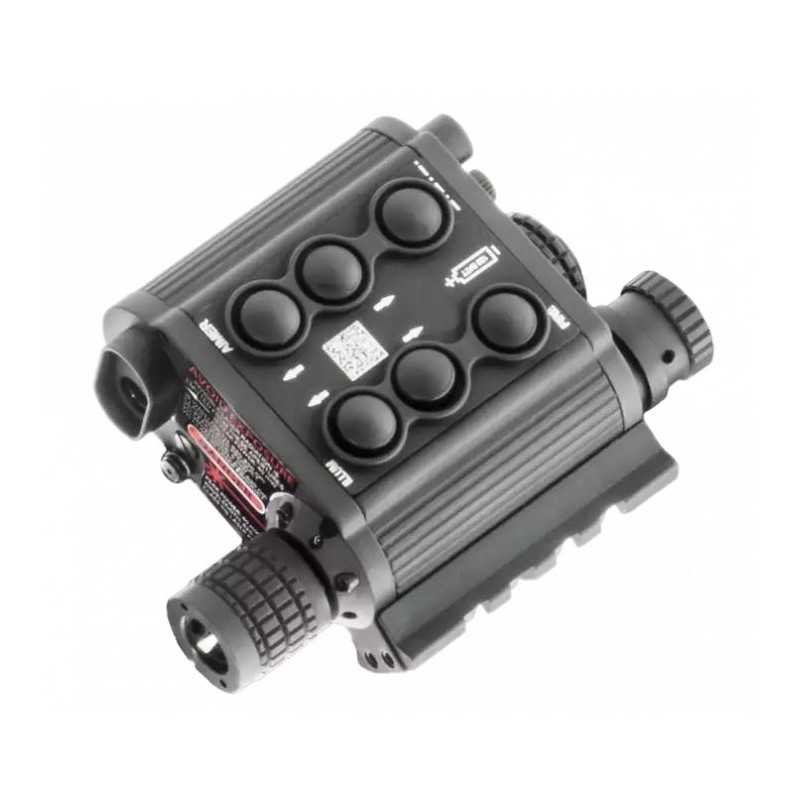

AGM TMAIM Tactical Laser Aiming System

The AGM TMAIM Tactical Laser Aiming System is a robust and adaptable Class 3b aiming device, designed for precision targeting in diverse conditions. Equipped with a red visible laser, an infrared (IR) laser, and an adjustable focus IR illuminator, this system is ideal for identifying and designating targets at varying distances. Whether you are on an unaided mission or using Night Vision, the TMAIM ensures accuracy and reliability.

Engineered to meet the needs of the most demanding operators, the AGM TMAIM is your go-to solution for tactical aiming in harsh environments.

Key Features

Precision Multispectral Outputs:

• Includes a Visible Red Aiming Laser, near-infrared aiming laser, and an adjustable focus near-infrared illuminator.
• All outputs are collimated, with a single windage/elevation adjustment controlling all simultaneously.

Intelligent & Rugged Design:

• Features a Low Battery Indicator and an Active Laser “ON” Indicator.
• Two remote cable switches are included: one for Eye Safe (Class 1) operation and one for High Power Modes.
• Integrated mount compatible with MIL-STD-1913 Picatinny or Weaver rails.
• Offers 256 individual output levels from 50μW to 25mW, allowing quick adjustment for specific missions. This conserves battery and prevents accidental flashes.
• Choice between constant wave or pulsed mode outputs for unique user identification.
• Rugged, waterproof design that is compact yet maintains a functional control layout. Rear-facing indicators and dials keep eyes downrange and hands ready.
• Device can be activated by either a remote control switch or a “FIRE” button, supporting multiple shooting positions and providing a failsafe feature.

Specifications

• Divergence:
  • IR LASER: 0.5 mRad
  • VISIBLE LASER: 0.8 mRad
  • IR ILLUMINATOR: 1-108 mRad
• Class:
  • IR LASER: IIIb (near IR)
  • VISIBLE LASER: IIIr
  • IR ILLUMINATOR: IIIb (near-IR)
• Output Power:
  • IR LASER: 100 μW (Low) / 25 mW (High)
  • VISIBLE LASER: 4.0 mW
  • IR ILLUMINATOR: 500 μW (Low) / 25 mW (High)
• Operating Distance:
  • IR LASER: > 200 m (Low) / 2,000 m (High)
  • VISIBLE LASER: > 25 m (in direct sunlight)
  • IR ILLUMINATOR: > 100 m (Low) / > 2,000 m (High)
• Wavelength:
  • IR LASER: 820 nm – 850 nm
  • VISIBLE LASER: 620 nm – 650 nm
  • IR ILLUMINATOR: 820 nm – 850 nm
• Battery Life: >10 hours in near-IR Aim Mode
• Operating Temperature: -51°C to 57°C
• Storage Temperature: -57°C to 85°C
• Waterproof: Up to 20 m for 1 hour
• Weight: 0.2 kg (0.44 lb)
• Dimensions: 105 × 81 × 43 mm (4.1 × 3.2 × 1.7 in)
• Color (housing): Black or Tan
• Battery Type: One (1) CR123 3.0VDC lithium battery

Package Includes

• Aiming/Illumination Module
• Remote Switch Black
• Remote Switch Blue
• Operation and Maintenance Manual
• Soft Carrying Case
