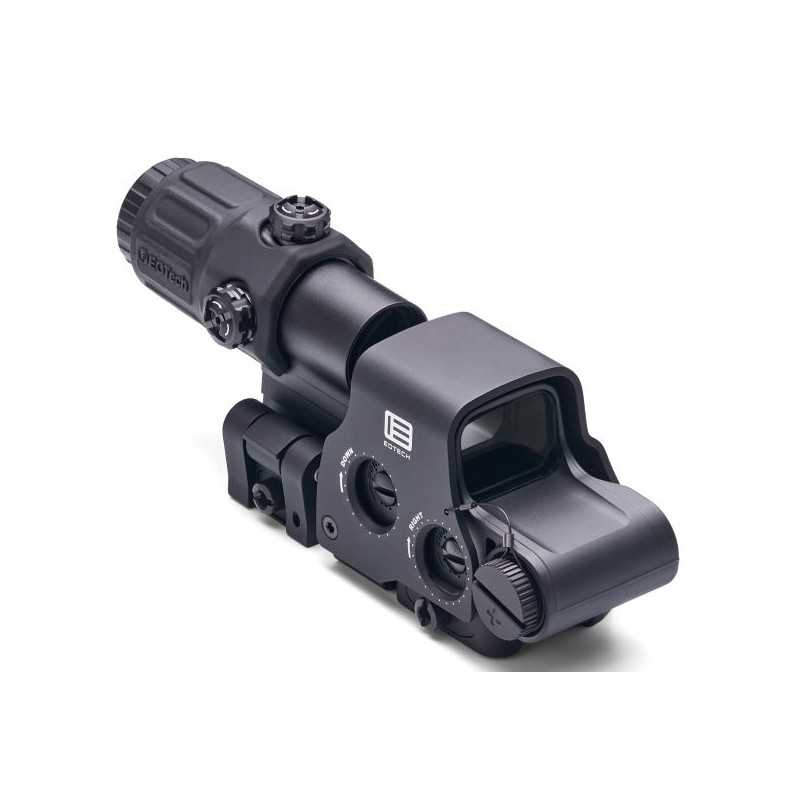

EOTech HHS II Hybrid Sight

Regardless of the scenario, the Holographic Hybrid Sight II (HHS II), featuring an EXPS2-2 with a G33.STS magnifier, provides an amazing advantage when transitioning from close-quarters to long-range shooting. Instant transition is achieved through a quick Switch-To-Side (STS) mount that offers a simple, quick disengagement of the magnifier.

Reticle Options

EOTECH’s unique reticle patterns are a criti- cal to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

EOTECH Two Dot Reticle

Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For or- dering this reticle, the model codes will end in -2.

Range Estimation with Unmagnified HWS

The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.

Brightness Options

The EXPS2™ HWS offers multiple brightness settings offering quick adjustability to accommodate any shooting situation.

Included in the box:

HHS™ II (EXPS2-2 & G33.STS)

Quick-Start Guide

Warranty & Registration Card

CR123 Battery

Protective Case

Non-Night Vision Compatible

L X W X H 8.2" x 2.3" x 3.3" (208.3 x 58.4 x 83.8 mm)

Weight 22.4oz (635g)

Water Resistant 10ft. (3 m) depth

Mount 1" Weaver or MIL-STD-1913 rail

Windage & Elevation Adjustment 0.5 MOA per click

Brightness 20 daylight settings

Power Source 1 x CR123 battery

Battery Life 1,000 continuous hours at nominal setting 12 at room temperature

Operating Temperature -40°F to 140°F (-40°C to 60°C)

Fixed Magnification 3X

Eye Relief 2.2" (55.9 mm)

Field-of-View w/ Magnifier 7.3°

Sealing Fog resistant internal optics

Country of Origin HWS: Made in USA, G33: Assembled in USA
