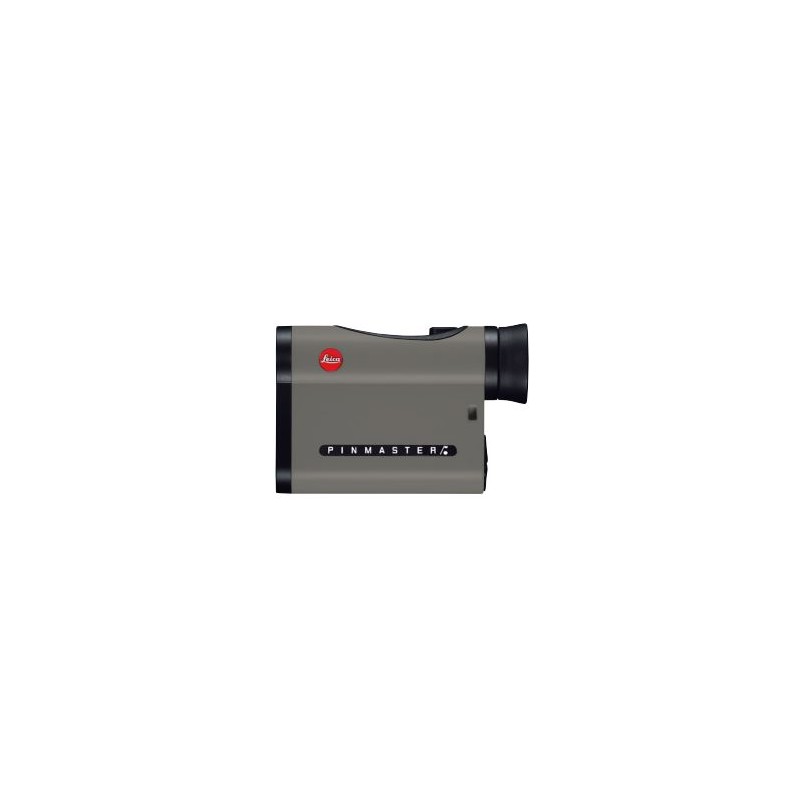

Leica Pinmaster II Golf Laser Rangefinder

• Leica Pinmaster II is a perfect companion on the golf course
• Features First Target mode, specially designed for the demands of golf
• Beautifully and ergonomically designed to fit in your hands and pockets
• An outstanding optical performance as it’s usual for Leica
• Clear LED display readable in any weather condition

Rangefinder Leica Pinmaster II

Order No. 40 533

Delivery scope Carrying cord, battery, Cordura case

Magnification 7 x

Front lens diameter 24 mm

Exit pupil 3.4 mm

Twilight factor 13

Field of view at 1,000 yds / 1,000 m 347 ft / 115 m

Eye-relief 15 mm

Objective angle of view 6.6°

Diopter compensation ± 3.5 diopters

ACD™ – Angle Compensated Distance no

Range 10 to 750 m / 10 to 825 yds

Accuracy ± 1 to 400 yds / ± 1 to 366 m, ± 2 to 825 yds, / ± 2 to 750 m, ± 0,5 % over 750 m / ± 0,5 % 825 yds

Read-outs LED display with four digits, easily legible in any light

Eyepieces for eyeglass wearers yes

Eyecups turn down rubber eyecups

Prism system Roof prism with phase correction coating P40

Watertightness Watertight to a depth of 3.2 ft / 1 m

Housing Carbon fibre-reinforced plastic material

Dimensions (W x H x D) 4.5 x 2.25 x 1.25 in / 113 x 75 x 34 mm

Weight approx. 7.8 oz / 220 incl. battery

Meter/Yard Selector yes

Laser Eye-safe invisible laser according to EN and FDA class1

Laser beam divergence approx. 0.5 x 2.5 mrad

Measuring time maximum approx. 0.85 s

Measuring mode Scanning mode

First target logic The nearest distance value is displayed when several measured values are available

Power supply 1 x 3 V/Lithium-type C2R

Battery lifetime approx. 2,000 measurements at 20°C / 68°F
