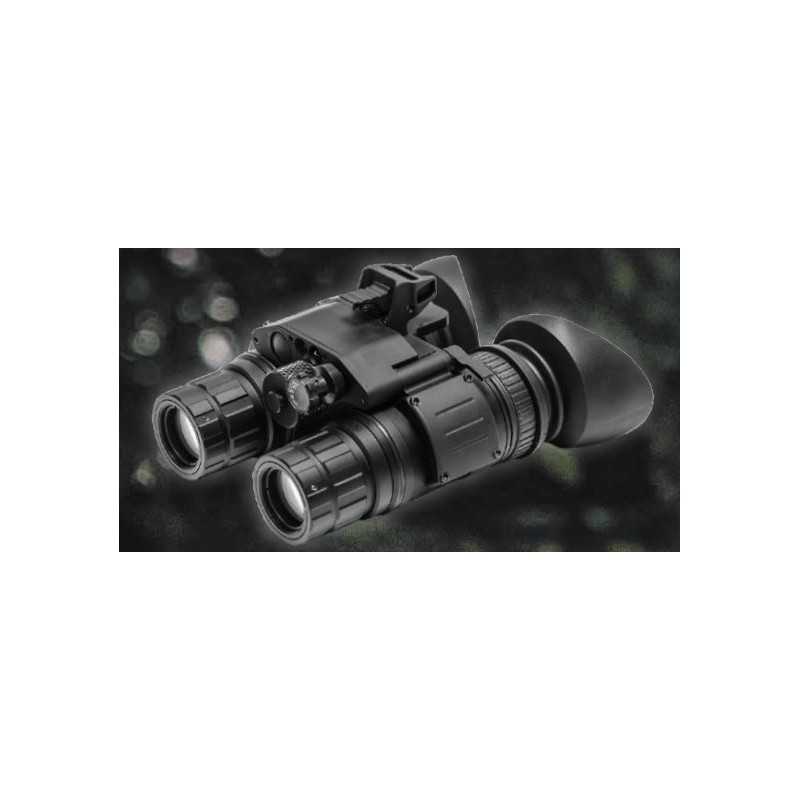

Lahoux LVS-31 Onyx Elite (ECHO HF) Night Vision Binocular (black and white)
8448.79 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The new Lahoux LVS-31 is a dual-tube goggle system with ergonomic design and improved functionality. It accommodates features such as a dedicated Instant-On-IR button to quickly and momentarily engage IR illuminator without having to operate the switch. The connector located at the front of the unit is used to supply power to the unit from almost any power source: external battery pack, USB power bank, 12V car socket and so on. By customer’s request, the unit can be equipped with Bayonet (PVS-7 system) or Dove-Tail style bracket.
General specifications
Optical magnification 1×
Focusing range 25 cm – infinity
Diopter adjustment aange -6 to +4
Interpupillary adjustment range 50 – 90 mm
Built-in IR illuminator Yes
Momentary IR-on button Yes
Power source 1× AA or 1× CR123 or external 4 VDC – 15 VDC
Battery life Up to 40 hours
Operating temperature -40 °C to +50 °C
Dimensions, mm 112x105x70 mm
Weight, grams 675
Technical specifications
Tubes: Photonis™, ECHO HF
Lenses: Lenses optimized for ECHO HF and 4G
Field of view: 40°
Objective lens: 27 mm
Relative aperture: f/1.2
FOM: 1,800 – 2,000 (ECHO HF)
ECHO and ECHO HF include manual gain control and ATG
