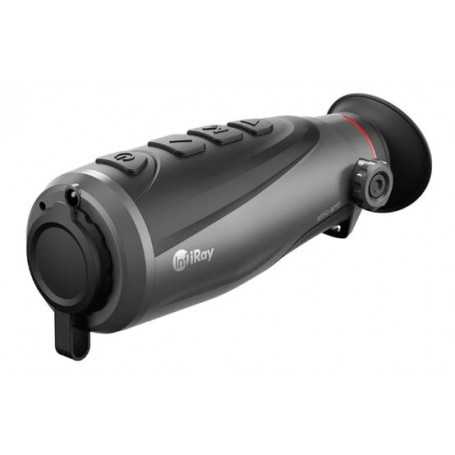

AFFO Series AL19 - Compact Thermal Imaging Monocular for Hunting

The AFFO Series AL19 is a compact and stylish thermal imaging monocular, ideal for hunting enthusiasts. This entry-level device combines a sleek design with powerful performance, offering a crisp and clear thermal imaging experience. With a self-developed 12μm detector, the AL19 ensures high-definition images and supports both photo capture and video recording with its substantial 32GB built-in storage capacity.

Key Features

High-Performance Detector

The AL19 utilizes a self-developed 12μm uncooled Vox thermal imaging sensor that delivers sharp and detailed HD images, making it perfect for precise observation.

Compact and Ergonomic Design

Designed with a rounded curve body to fit comfortably in the hand, the AL19 is compact and easy to carry, ensuring convenience on your adventures.

Seamless Connectivity with HDMI Interface

Featuring an HDMI interface, the AL19 allows for direct connection to HD screens and laptops, facilitating high-quality video and audio transmission for an enhanced viewing experience.

Extended Battery Life

Equipped with low-power components, the AL19 offers an impressive battery life of up to 9.5 hours, ensuring it lasts throughout your hunting expeditions.

Practical Additional Functions

• Stadiametric Rangefinding: Accurately estimate prey distance to enhance your hunting precision.
• PIP (Picture-in-Picture): Magnifies the screen at the cursor position to highlight and observe target details more effectively.

Diverse Image Modes

The AL19 provides multiple image modes, including white hot, black hot, red-hot, and color palette, along with a hot target highlight mode and hotspot tracking, to cater to various scenarios and environments.

Enhanced Durability and Protection

• Rugged Lens Protection: Features a durable plastic lens cap with enhanced hardness and impact resistance.
• Waterproof Design: Equipped with an external screen for use in rainy conditions, preventing water ingress into the interface.

Ample Storage Capacity

With a 32GB built-in memory, the AL19 can record extensive footage, capturing the entire hunting process seamlessly.

Technical Specifications

• Sensor Type: Uncooled Vox
• Resolution: 384×288
• Pixel Pitch: 12μm
• NETD: ≤ 40 mK
• Frame Rate: 50 Hz
• Objective Lens: 19 mm
• Field of View (FOV): 13.8°×10.4°
• Digital Zoom: 1x, 2x, 4x
• Diopter Adjustment: -7 ~ +2 D
• Detection Range: 986 m (for targets 1.7m×0.5m, P(n)=99%)
• Display Type: OLED
• Display Resolution: 640×400
• Battery Type: Built-in lithium-ion
• Battery Capacity: 3.6Ah / 3.6V
• Operation Time: 7.5 hours at 22°C
• External Power Supply: 5V Type C
• Ingress Protection Rating: IP67
• Wi-Fi/APP Support: Yes (InfiRay Outdoor)
• Operating Temperature: -20°C to +50°C
• Weight: Less than 350 g
• Dimensions: 169×60×60 mm

The AFFO Series AL19 is your perfect companion for all hunting adventures, combining advanced technology with user-friendly features for a superior thermal imaging experience.
