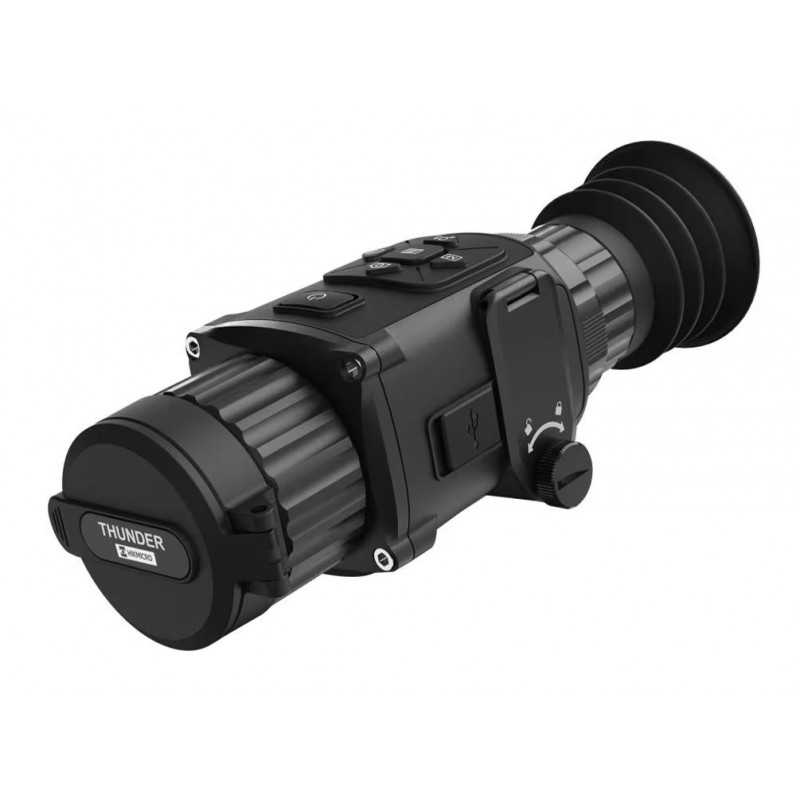

Hikvision Hikmicro Thunder Pro TE25 - Thermal Imaging Sight

Hikmicro Thunder Pro TE25 is a thermal imaging sight equipped with a 256 × 192 sensor with a sensitivity of 35 mK, a high-quality OLED 1024 × 768 px display, a rangefinder and a lightweight and lightweight aluminum alloy body, resistant to submersion in water, snow and rain.

Construction

Hikmicro Thunder Pro TE25 has a light and durable body made of aluminum alloy (magnalia). This makes the Thunder Pro TE25 the lightest sight in its class on the market with dimensions of 187.2 × 62.5 × 59.2 mm. The aluminum structure also guarantees resistance to shocks, impacts and weather conditions. The body is protected against water, dust and moisture (IP67 class), therefore the sight is resistant to all weather conditions that may occur during hunting. It is extremely important to keep silence during the game approach, therefore the sight is operated by rubber buttons with silent operation.

Modular design

One of the main advantages of HikMicro thermal imagers is their modular design, thanks to which one device can perform different tasks. Our offer includes the necessary accessories thanks to which the HikMicro thermal imager will become your favorite tool for hunting and observation. Accessories are fully compatible with all HIKMICRO Thunder and Thunder PRO thermal imaging devices, so everyone can adjust them to their own needs.

If you have an attachment and you want to turn it into a thermal imaging sight, just equip it with a mounting rail and an eyecup. People who want to use the HikMikro sight as a cap can use the appropriate adapter and enjoy the richer functionality of the Imager.

Image parameters

Hikmicro Thunder PRO TE25 uses a sensitive 256 × 192 px sensor with <35mk sensitivity, a high quality 1024 × 768 px OLED display, a 25 mm lens and a functional rangefinder. The lower the NETD value, the better the sensor detects temperature differences between the objects, which contributes to the excellent image quality. Such parameters provide a clear image in all environmental conditions, thanks to which the viewfinder can be used in complete darkness, in fog, in smoke, dust, and also during rain and snowfall. The thermal imager has an optical magnification of 3.25 ×, which enables target detection at a distance of up to 1800 m. HikMicro Thunder PRO TE25 has the popular PiP (picture-in-picture) function that allows the hunter to be simultaneously and observation of the target while maintaining a wide field of view. Thunder also uses the 2 ×, 4 × and 8 × digital zoom.

The hunter has 4 most popular display modes at his disposal, he can choose between:

• White hot - warm with a bright color. The higher the temperature, the lighter the key is.

• Black hot - warm with a dark color. The higher the temperature, the darker the tone is.

• Red hot - image as in "black hot" with red highlighting the hottest elements

• Fusion - From high temperature to low temperature, the image is white, yellow, red, pink to purple in color.

Thermal image technologies:

• DDE (digital detail enhancement) - digital enhancement of details,

• 3D DNR (3D digital noise reduction) - digital noise reduction,

• AGC (automatic gain control) - automatic gain control.

Variable reticle

Hikmicro Thunder PRO TE25 offers 5 versions of reticles in 3 colors and the option of completely switching off the reticle when using the sight for normal observation. An add-on that all hunters will appreciate is the static rangefinder, which measures distances based on factory default values or user-defined settings. Hikmicro Thunder TE25 not only provides excellent support during hunting, but also in observation and patrol operations.

Functionality

The Thunder PRO TE25 thermal imager is powered by two 3.0 V CR123 batteries (included). The working time is 4.5 hours and can be increased by connecting a power bank (USB-C port). The device has 16 GB of built-in memory, on which you can store captured images or video material. Additionally, the image can be transmitted via Wi-Fi to a phone or other device on which an appropriate application has been installed (Android or iOS system).

The most important features of the Thunder TE25 thermal imager

• maximum detection range up to 1800 m

• OLED 0.39 "1024 × 768 display ensuring high comfort of observation

• PiP function

• static rangefinder

• 3.25 × optical magnification

• 5 versions of the reticle in 3 colors

• integrated 16 GB internal memory

• rubberized, noiseless buttons

• 50 Hz refresh

Technical specifications

• matrix: 256 x 192 px

• pixel size: 12 µm

• refresh rate: 50 Hz

• viewing angle: 5.28 °

• linear field of view at 100 m: 9.24 m

• Objective diameter: 25 mm

• optical magnification: 3.25x

• digital magnification: 2x, 4x, 8x

• display: OLED, 1024 x 768 px

• number of image color palettes: 4

• battery: replaceable, 2x CR123 3.0 V (included)

• battery life: up to 4.5 hours with the WiFi module turned off

• charging: USB-C socket, 5 V DC, 2 A

• powered from an external power bank: yes

• WiFi module: yes

• built-in memory: yes, 16 GB

• movie recording: yes

• save photos: yes

• sealed housing: yes, IP67

• working temperature: -20 ÷ 55 ° C

• dimensions: 187 x 63 x 59 mm

• weight: 436 g

Elements of the set

• Thunder TE25 Pro thermal imager

• case

• CR123A batteries (2 pieces)

• USB-C cable

• optics cleaning cloth

• rubber eyecup

• documentation

guarantee

36 months
