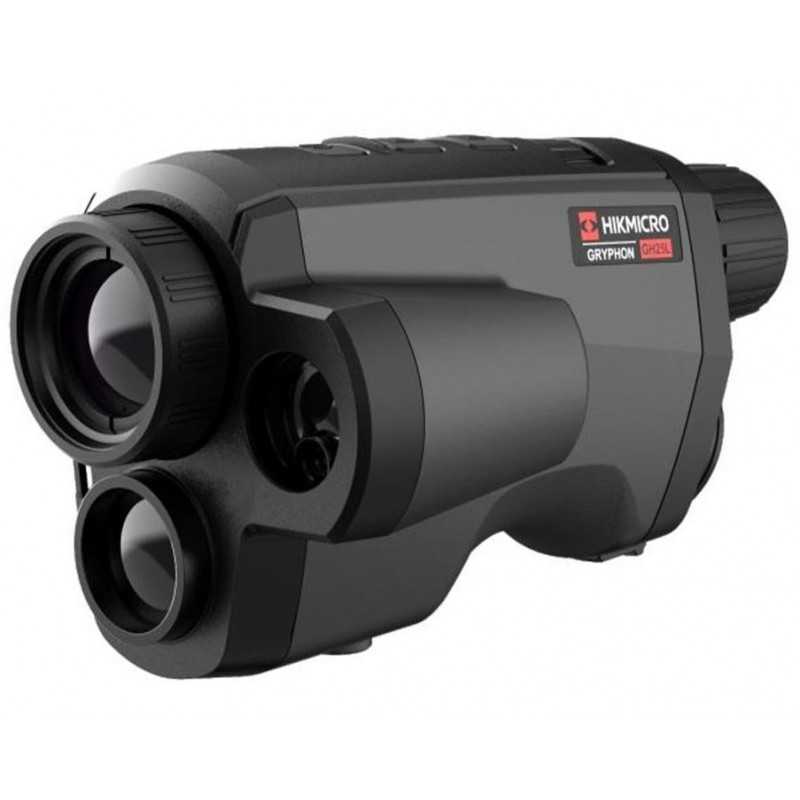

Hikvision Hikmicro Gryphon HD LRF GH25L - Thermal Imaging Camera

HIKMICRO Gryphon - the revolution is about to happen! Release of the year 2021.

Gryphon is more than just a thermal imaging camera, it's a complete observation device for special tasks, a full body design, for any task, at any time, created to make less be more!

HIKMICRO Gryphon - 3-in-1 hunting thermal imager

Thermal imaging - all Gryphon cameras are equipped with a state-of-the-art detector made with 12μm technology, available in two resolutions of 384 × 288 or 640 × 512 and 50 Hz refresh rate. Nothing, both day and night, will manage to hide from it.

Night vision - a high-sensitivity sensor in full HD resolution using an additional infrared illuminator (required, not included) makes the Gryphon camera illuminate any darkness at a distance of up to several hundred meters.

Fusion - the technology of the future, a combination of thermal and digital images, the mirage of the two will give what you are watching a whole new perspective. Thanks to the superimposition of the two images, the observer gets a no-compromise tool in his hands, allowing to conduct a preview full of details in HD resolution both day and night (only with an additional IR, not included) with the thermal image applied. From now on, details that could hide from you in a classic thermal imaging camera will be visible as on the palm of your hand.

Rangefinder (LRF version only) - accurate, fast, dynamic, with a range of up to 600 meters, and most importantly, one less device in your pocket!

The Gryphon thermal imager has 16 GB of built-in memory for storing photos and recorded video footage, moreover, the Gryphon can be connected to the T-Vision app (iOS or Android) to operate it remotely.

TheHIKMICRO Gryphon is powered by a single 18650 cell, which allows up to 5 hours of continuous operation. This is a popular rechargeable battery that can be replaced with another rechargeable one of the same standard if it runs down. Like all other HIKMICRO cameras, the Gryphon series can also be powered via USB-C port from external sources such as a power bank.

Resistant to IP67! HIKMICRO confirms its high quality workmanship by giving the Gryphon cameras an IP67 standard. Each is fully dustproof and waterproof up to 1 meter!

Share the screen in real time

The function redirects the image from the target device to the smartphone, so that at the same moment both the shooter and the companion can have a view of the area visible through the lens. In addition, it is possible to connect one sighting device to multiple phones allowing the image to be transmitted to the entire group. By rotating the screen, we can switch to landscape mode or receive the viewfinder image horizontally.

Remote control with a smartphone

Thanks to the HIKMICRO Sight app, we get the possibility to control the viewfinder with a smartphone. Thanks to this, settings such as brightness, zoom, color modes or even calibration are possible to change on the phone screen.

Sharing on social media

If we want to share our impressions of using the viewfinder with a social group, the application allows us to upload the material at any time.

Saving recordings and photos on the device

The application allows you to save video and audio recordings on your phone, allowing you to return to your favorite memories at any time.

TECHNICAL DATA

Basic data

Angular field of view [°] 7,9

Digital zoom [×]. 2/4/8

Display resolution (W × H) [px] 1024×768

Internal memory 16 GB

Lens size [mm]. 25

Linear field of view at 100 m [m]. 18,42

 Max. operating time [h min]. 5 h

 Max. range [m] 2778

Operating temperature [°C]. -20° to 55°

Optical zoom [×]. 2,39

Refresh rate [Hz]. 50

Sensor resolution (W × H) [px]. 384×288

USB output yes

Security

IP protection class IP67

Dimensions

Overall height [mm] 61

Overall length [mm]. 158

Weight [g] 510

Width [mm] 57
