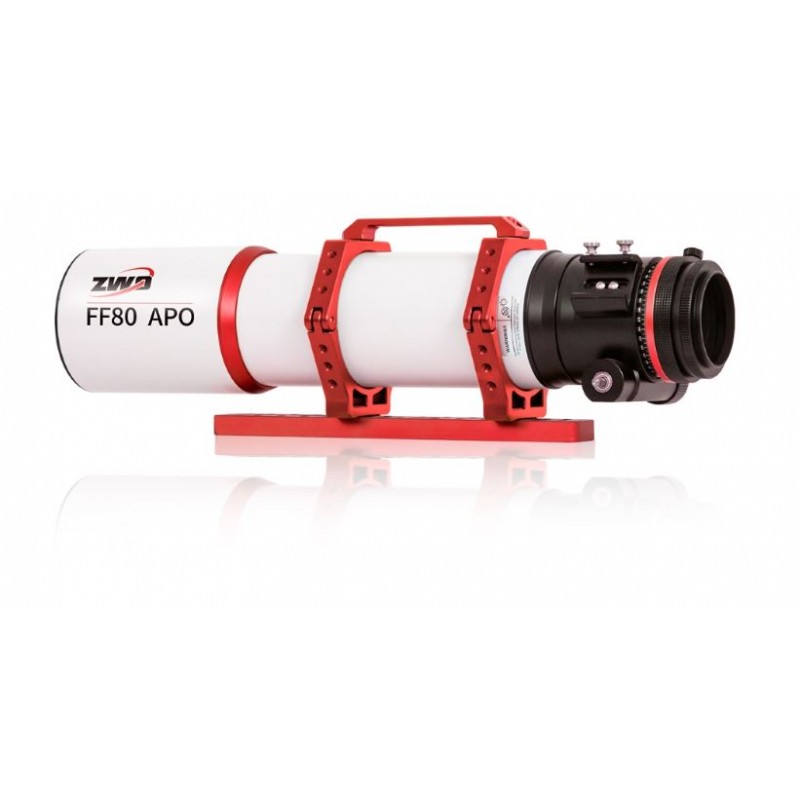

ZWO FF80-APO 80 mm F/7,5 quadruplet

Preorder - The ZWO FF80 APO telescope is now available for pre-order until July 31, 2023. As a bonus, ZWO is including a dedicated 0.76x F80RE flattener for free with the optical tube.

The ZWO FF80 APO is a top-of-the-line telescope designed specifically for astrophotography. Its optimized structure and advanced features make it the perfect tool for capturing stunning celestial images. With automatic field curvature correction and a four-element camera adapter, this telescope is ready to use right out of the box, eliminating the need for additional accessories.

This advanced telescope utilizes a four-element air gap apochromat design. To ensure the best possible correction of chromatic aberrations, ZWO has incorporated two elements made of low-dispersion (ED) glass, a feature typically found in high-end astrographs. In addition to exceptional color reproduction, the ZWO FF80 APO maintains an incredibly flat field, resulting in distortion-free images even at the edges of the frame, without the need for an extra flattener.

The ZWO FF80 APO not only boasts exceptional optical performance but also exhibits high-quality and precise mechanical elements. Its robust focuser can accommodate even the heaviest astronomical cameras, while the CNC-machined mounting rings and Losmandy foot guarantee stability and reliability.

Key Features of the ZWO FF80 APO Telescope:

• High-class astrograph featuring two low-dispersion lenses to eliminate chromatic aberrations.
• Advanced optical design ensures perfect field curvature correction without the need for an additional flattener.
• Four-piece camera adapter allows for versatile camera connectivity.
• Full frame coverage with a diameter that ensures full illumination circle.
• Suitable for both astrophotography and visual observations.

Technical Specifications:

• Optical design: Apochromatic refractor
• Lens system: ED quadruplet with air gap
• Number of low dispersion lenses: Two
• Front lens diameter (aperture): 80 mm
• Focal length: 600mm
• Focal ratio: f/7.5
• Diameter of the full illumination disc: 44 mm
• Full-frame sensor compatibility: Yes
• Camera/camcorder adapter: Four-piece
• Back focus for M48x0.75 adapter: 115 mm (measured from the base of the thread)
• Back focus for M54x0.75 adapter: 135 mm (measured from the base of the thread)
• Back focus for M68x1 adapter: 155 mm (measured from the base of the thread)
• Back focus for M76x1 adapter: 168.5 mm (measured from the base of the thread)
• Filter compatibility: 2" in the M52x0.75 - M48x0.75 adapter
• Focuser diameter: 3"
• Focuser type: Rack & pinion with dual-speed 1:10 and 360° rotator
• Mounting bracket: Vixen foot
• Tube length (unfolded with dew shield and adapters): 570 mm
• Tube length (folded with dew shield and adapters): 480 mm
• Tube weight (without accessories): 3.9 kg
• Tube weight (with accessories): 4.7 kg

Included Accessories:

• ZWO FF80 APO optical tube
• Four-piece camera adapter
• Mounting clamps
• Vixen rail

Warranty:

The ZWO FF80 APO telescope comes with a 24-month warranty, ensuring peace of mind with your purchase.
