ZWO FF130-APO 130 mm F/7,7 quadruplet
3717.97 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

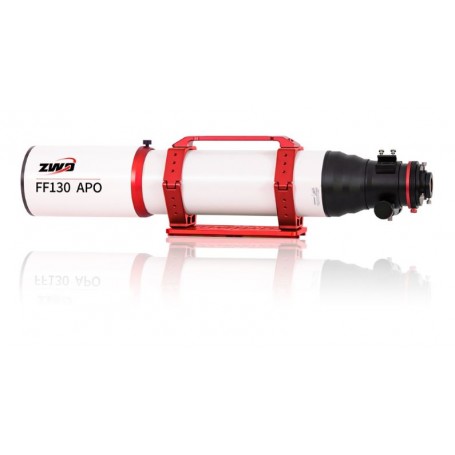

Preorder now and receive a complimentary ZWO 0.7x F107130RE flattener with the optical tube. The ZWO FF130 APO is a highly professional telescope designed specifically for astrophotography. It features optimized optics with automatic field curvature correction and a four-element adapter for easy camera attachment, allowing you to start capturing stunning images right out of the box without the need for additional accessories.
This advanced telescope utilizes a four-element air gap apochromat design to ensure optimal chromatic aberration correction. ZWO has incorporated two elements made of low-dispersion (ED) glass, a feature typically found in more expensive flagship astrographs. The result is exceptional color reproduction and minimal field curvature, providing distortion-free images even at the edge of the frame, even without the use of an additional flattener.
In addition to its impressive optical performance, the ZWO FF130 APO boasts high-quality mechanical elements. The sturdy focuser can handle heavy astronomical cameras, while the CNC-machined mounting rings and Losmandy foot ensure rock-solid stability.
Key Features of the ZWO FF130 APO Telescope:
- Premium astrograph with two low-dispersion lenses for chromatic aberration elimination.
- Advanced optical design that delivers perfect field curvature correction without requiring an extra flattener.
- Four-part adapter for seamless connection with various cameras.
- Large full illumination disc diameter, providing coverage for full-frame and medium format sensors.
- Can also be used for visual observations.
Technical Specifications:
- Optical construction: Apochromatic refractor.
- Lens system: Four-element ED quadruplet with air gap.
- Number of low dispersion lenses: Two.
- Front lens diameter (aperture): 130 mm.
- Focal length: 1000 mm.
- Focal ratio: f/7.7.
- Full illumination disc diameter: 60 mm.
- Compatibility with full-frame sensors: Yes.
- Camera/camcorder adapter: Four-piece.
- Working distance for M48x0.75 thread adapter: 116 mm (from base of the thread).
- Working distance for M54x0.75 thread adapter: 136 mm (from base of the thread).
- Working distance for M68x1 thread adapter: 156 mm (from base of the thread).
- Working distance for M86x1 thread adapter: 186 mm (from base of the thread).
- Filter compatibility: 2" in the M52x0.75 - M48x0.75 adapter.
- Focuser diameter: 3.4".
- Focuser type: Rack & pinion with 10:1 ratio and 360° rotator.
- Mounting bracket: Losmandy foot.
- Tube length (unfolded dew shield and mounted adapter): 1012 mm.
- Tube length (folded dew shield and mounted adapter): 1062 mm.
- Tube weight (without accessories): 10.5 kg.
- Tube weight (with accessories): 12.5 kg.
Included in the Set:
- ZWO FF130 APO optical tube.
- Four-piece photo adapter.
- Mounting clamps.
- Losmandy rail.
Warranty:
The ZWO FF130 APO comes with a 24-month guarantee.
Data sheet
