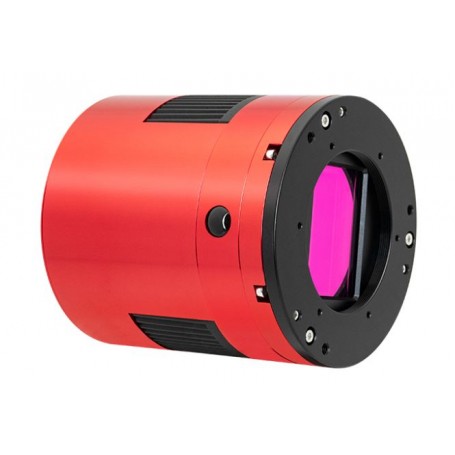

ZWO ASI 6200 MC-P (aka ASI6200MC Pro)

The ZWO ASI 6200MC-PRO color camera is designed specifically for astrophotography enthusiasts who demand the highest quality. With its full-frame Sony IMX455 sensor, which boasts high quantum efficiency and exceptionally low noise, along with a 16-bit ADC, this camera produces stunning images with unparalleled sharpness and tonal dynamics.

One of the standout features of the ASI 6200MC-PRO is its two-stage cooling system, utilizing Peltier cells, which effectively maintains a low dark current in the sensor, even during long exposures. The active matrix cooling technology ensures that the noise remains minimal, measuring only 0.003 e/s/pix at 0°C. This means that even during extended exposures of up to 300 seconds, the noise level will be negligible.

In addition to its impressive cooling system, the ASI 6200MC-PRO camera incorporates amp glow suppression technology, ensuring the highest sensitivity and eliminating the undesirable amp glow effect often found in CMOS sensors. This remarkable product leaves nothing to chance when it comes to delivering exceptional performance.

Key Features of the ASI 6200MC-PRO Camera:

Full-frame Sony IMX455 sensor utilizing back-illuminated technology for enhanced sensitivity

16-bit ADC converter enabling a high dynamic range

256 MB DDR3 memory acting as a buffer for stable data transmission

No amp glow effect for superior image quality

Efficient two-stage cooling system based on Peltier cells

Polyamide heater preventing condensation on the sensor window

Technical Specifications:

• Sensor: Sony IMX455 (color)
• Sensor Type: CMOS
• Sensor Size: Full-frame 36x24 mm, 43.3 mm diagonal
• Sensor Resolution: 62 MP, 9576x6388 px
• Pixel Size: 3.76 µm
• Bayer Pattern: RGGB
• Full Well Capacity: 51.4 ke
• Peak Quantum Efficiency: 91%
• Exposure Time: 32 µs - 2000 s
• ROI (Region of Interest): Supported
• Shutter Type: Rolling shutter, electronic
• Back Focus: 17.5 mm
• Sensor Window: Coated with D60-2 IR CUT
• Buffer Size: 256 MB DDR3
• Compatible Operating Systems: Windows, Mac OS, Linux
• Ports: 1x USB 3.0 (input), 2x USB 2.0 (output)
• Cooling System: Two-stage Peltier cells, maximum power consumption 12V, 3A
• Camera Power Consumption: 5V, 650 mA
• Minimum Operating Temperature: -5°C
• Maximum Operating Temperature: 45°C
• Connector: M42x0.75
• Weight: 700 g
• Dimensions: 90x97 mm

Supported Resolutions:

16-bit ADC

• 9576 × 6388 @ 2.05 fps
• 7680 × 4800 @ 2.72 fps
• 6400 × 4096 @ 3.18 fps
• 4096 × 2160 @ 5.97 fps
• 3840 × 2160 @ 5.97 fps
• 1920 × 1080 @ 11.66 fps
• 1280 × 720 @ 17.10 fps
• 640 × 480 @ 24.81 fps
• 320 × 240 @ 45.21 fps

Kit Components:

• ASI 6200MC-PRO camera
• Case
• USB 3.0 cable (2m)
• 2x USB 2.0 cable
• T2 intermediate ring (21 mm)
• T2-M48 intermediate ring (16.5 mm)
• M54-M48 intermediate ring (21 mm)
• M42-M48 adapter
• 2" end cap
• Allen key

Warranty:

The ASI 6200MC-PRO camera comes with a 24-month warranty, providing peace of mind for its users.
