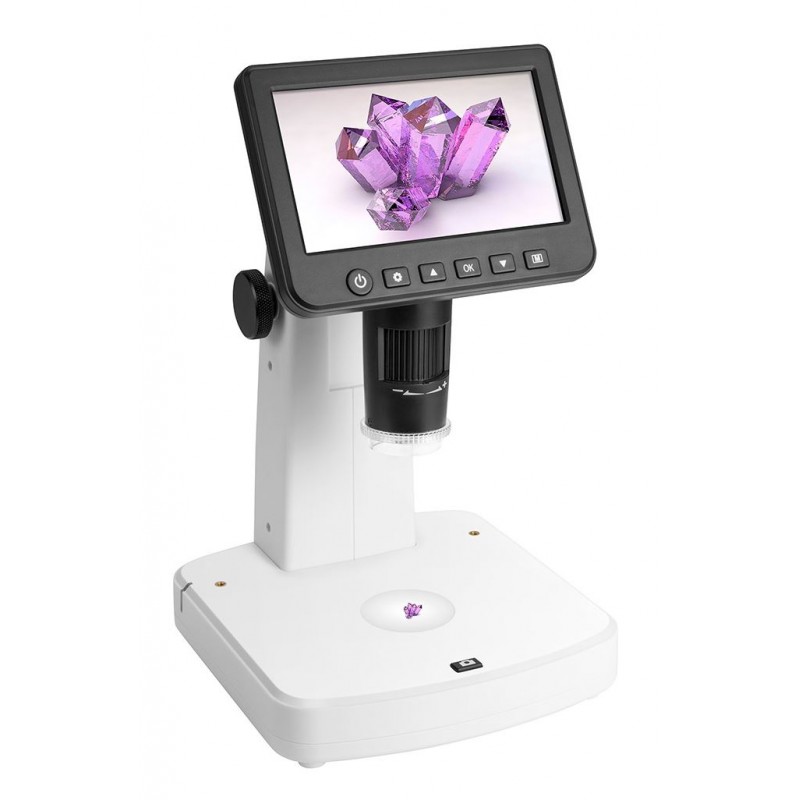

Levenhuk DTX 700 LCD Digital Microscope
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Levenhuk DTX 700 LCD Digital Microscope

The Levenhuk DTX 700 LCD Digital Microscope is your versatile answer to handling intricate tasks and persistent curiosity. Perfect for jewelers, electronics enthusiasts, geologists, numismatists or anyone keen to explore the microscopic world; this device offers high precision for working with jewelry, electronic elements, mineral slices, coins or metals. Hobbyists can use it at home to delve into intricate worlds of insects and botanical wonders. The standout feature, its LCD screen, saves users from the fatigue associated with long work sessions using traditional eyepiece microscopes. It's time to explore the microscopic world without straining your eyes, with Levenhuk DTX 700 LCD Digital Microscope.
359.46 $
Tax included

292.24 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Levenhuk DTX 700 LCD Digital Microscope is suitable for working with jewelry pieces, electronic plates, minerals, coins, and sections of metals. This microscope is also useful for home use, e.g. for studying insects and plants. Levenhuk DTX 700 LCD is equipped with an LCD screen, that reduces eyestrain during lengthy work, and it is more comfortable than looking through an eyepiece of a standard microscope.

An image is formed by a 5M digital camera. The camera provides 10–300x magnification, and an additional zoom allows for observing objects at up to 1200x magnification. A colorful and detailed image is transmitted to a built-in LCD screen. In addition, a built-in camera allows for capturing images and shooting videos. Control buttons are located right below the screen. They are used to set up photo and video quality, turn in and turn off time-lapse mode, choose circular video mode, and set the date and time.

This self-sufficient microscope does not require connecting to external devices. A memory card is required for saving photos and videos (purchased separately). The microscope can be connected to an external monitor, a TV, or a computer. The kit includes all the necessary cables and software. Note: the software that is installed in a computer allows for measuring objects (line, radius, diameter, three-point angle). This software also allows for adding extra images and texts on top of images captured by a microscope.

The illumination system of the microscope consists of bright LED lights with adjustable brightness. There is a built-in polarizing filter, which reduces parasitic reflections when studying shiny metals.

The microscope is powered by an AC supply or a built-in battery, which provides up to three hours of continuous work.

Features:

Digital microscope with a 5M camera and a color LCD screen

LED illumination with brightness adjustment

Built-in polarizing filter

Ability to record images and videos; an image is transmitted to an external screen

Image processing software with measurement function

Powered by an AC power supply or the built-in battery

The kit includes:

  • Microscope
  • Adapter (100–240 V, 50/60 Hz)
  • USB cable
  • AV cable
  • Calibration scale
  • Software CD
  • User manual and lifetime warranty

Recommendations on using the software: in order for the PortableCapture Plus program (and its other versions) to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Caution! Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries. Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.

Levenhuk DTX 700 LCD Microscope is not compatible with external digital cameras.

Specifications

  • Product ID 75075
  • Brand Levenhuk, Inc., USA
  • Warranty, years lifetime
  • EAN 5905555004389
  • Package size (LxWxH), cm 31.5x20.5x19
  • Shipping Weight, kg 1.52
  • Type digital
  • Head digital screen/PC monitor
  • Optics material optical glass
  • Nozzle 5'' color LCD screen (fixed)
  • Magnification, x 10–300, with a digital zoom 10–1200
  • Stage, mm ø45
  • Stage moving range, mm fixed
  • Stage features with clips
  • Focus manual, 5–70mm
  • Body plastic
  • Illumination LED
  • Brightness adjustment ✓
  • Power supply 100–240V, 50/60Hz, 5V, 2A output, built-in 3.7V/2500mAh Li-ion battery
  • Power supply: batteries/built-in battery yes
  • Light filters polarizing
  • Operating temperature range,°C -10...+65
  • Additional battery-operated work: 3 hours; charging time: 7 hours
  • Megapixels 5.0
  • Video recording yes
  • Frame rate 30 frames per second
  • Image format *.jpg
  • Software, drivers photo and video processing software with objects measurement feature
  • Output HDMI/TV, USB 2.0
  • System requirements OS: Windows 7/8/10, Mac 10.14 and later, minimum P2 1GHz, 512MB RAM, 512MB video card, USB 2.0 port, CD-ROM
  • Ability to connect additional equipment microSD card up to 32 GB (not included), computer: via an USB cable (included), TV: via an AV cable (included)
  • User level beginners, experienced users
  • Assembly and installation difficulty level easy
  • Software language Chinese, English, French, German, Japanese, Russian, Spanish
  • Video format *.avi
  • Application for applied research
  • Illumination location dual
  • Research method bright field
  • Maximum resolution images: 12Mpx, 10Mpx, 8Mpx, 5Mpx, 3Mpx, 2Mpx, video: 1080p, 720p
