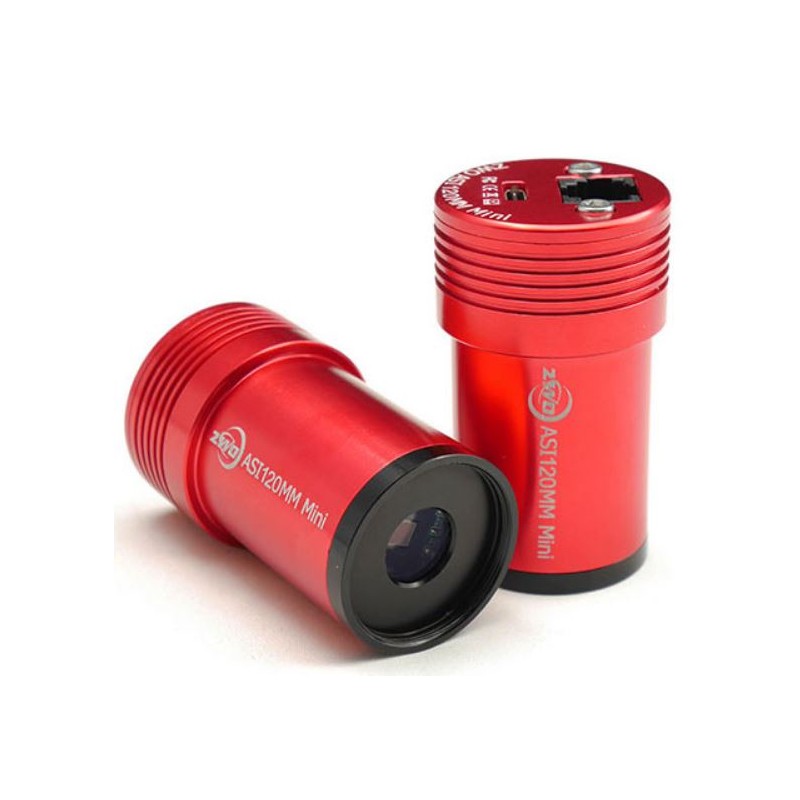

ZWO ASI120MINI astronomy camera

Introducing the ZWO ASI120 MM Mini, a compact astronomical camera equipped with the AR0130CS 1/3" sensor, measuring 4.8 x 3.6 mm. Boasting a resolution of 1280 x 960 pixels and a single pixel size of 3.75 x 3.75 µm, this camera excels in planetary astrophotography and is a reliable choice for guiding purposes. It stands out with its low read noise, generous dynamic range, and a sleek, lightweight design.

Connectivity is made easy with both USB 2.0 and ST4 ports. The USB 2.0 port features a symmetrical USB-C connector, akin to the latest smartphone interfaces. Meanwhile, the ST4 port allows direct connection to the autoguiding port in your assembly, enhancing precision.

Technical Specifications:

• Image Sensor: 1/3" CMOS AR0130CS (monochrome)
• Resolution: 1.2 megapixels (1280 × 960)
• Pixel Size: 3.75 x 3.75 µm
• Exposure Time Range: 64 µs - 2000 s
• ROI (Region of Interest) Selection: Supported
• ST4 Port: Yes
• Focal Length to Sensor Distance: 8.5 mm
• Shutter Type: Rolling Shutter
• Sensor Coating: Layered
• Compatible Operating Systems: Mac, Windows, Linux
• Port: USB-C (Symmetrical)
• Interface Speed: USB 2.0
• Bit Depth: 12-bit
• Connector: 1.25" / M28.5X0.6
• Dimensions: 61 mm (Length) x 36 mm (Diameter)
• Weight: 60 grams

Supported Resolutions:

• Binning 1 × 1: 1280x960 @ 35 FPS, 1280x720 @ 46 FPS, 1024x768 @ 54 FPS, 800x600 @ 90 FPS, 640x480 @ 118 FPS, 320x240 @ 224 FPS
• Binning 2 × 2: 640x480 @ 35 FPS

Rest easy with a generous 24-month warranty that comes with the ZWO ASI120 MM Mini, ensuring peace of mind as you explore the wonders of the cosmos.
