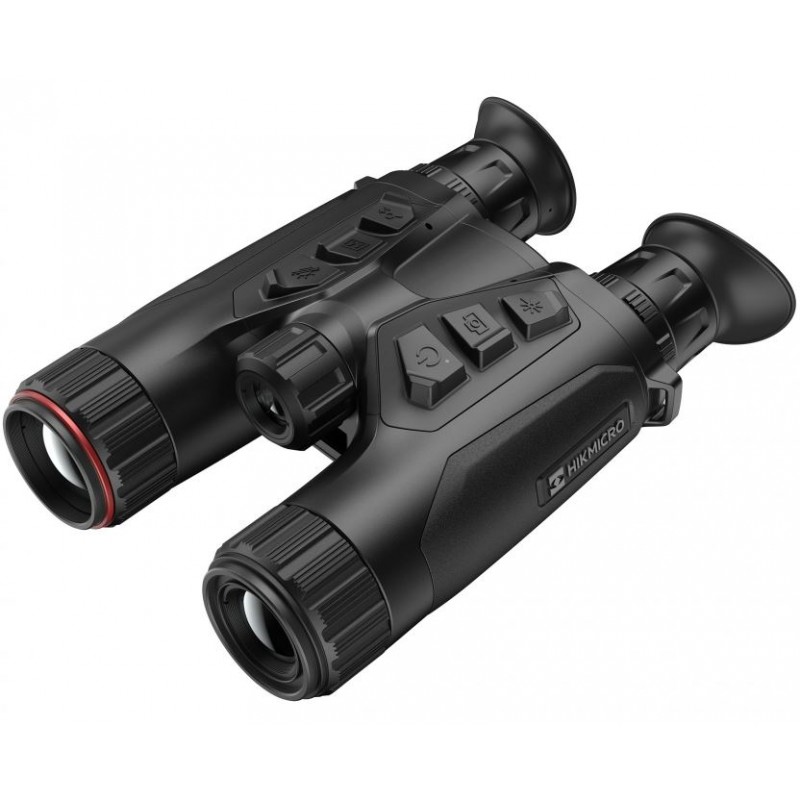

Hikvision Hikmicro Habrok HQ35L LRF 850 nm thermal binoculars

Hikvision Hikmicro Habrok HQ35L LRF 850 nm Thermal Binoculars

Discover unmatched precision and clarity with the Hikvision Hikmicro Habrok HQ35L LRF 850 nm Thermal Binoculars. This advanced device combines a powerful 640 thermal detector, a 2560 CMOS detector, and a 35mm/F1.0 lens, providing a basic 3x magnification perfect for a variety of hunting scenarios.

Crystal-Clear Imaging and Exceptional Detail Recognition

The HIKMICRO HABROK multi-spectrum binoculars feature a high-sensitivity (NETD < 20mK) thermal detector, allowing for easy and accurate identification of objects, details, and backgrounds in various weather and lighting conditions.

High-Definition Digital Camera with 2560x1440 Resolution

Equipped with a 0.001Lux Starlight Camera, the HABROK captures vivid images during daylight and delivers exceptional detail even in low-light environments.

Cutting-Edge Image Algorithm for Superior Quality

Utilizing HIKMICRO's self-developed Zoom Pro image algorithm, the HABROK produces ultra-clear images with remarkable detail and minimal pixilation, especially during digital zoom operations.

Versatile All-in-One Design for Varied Scenarios

The HIKMICRO HABROK combines a thermal camera, digital day & night camera, IR Emitter, and Laser Rangefinder module, making it ideal for use in both day and night activities.

Essential Features for Enhanced Functionality:

• IR Emitter: Built-in emitter with an adjustable beam angle for use in total darkness (850nm).
• LRF: Integrated laser rangefinder with up to 1,000m range @± 1m accuracy for precise distance measurements.

Compact and Ergonomic Design for Comfortable Use

The HABROK maintains the classic design of daytime binoculars with a lightweight (<780g) magnesium alloy housing and an ergonomic design for comfortable handling.

Customizable Visual Experience

Features such as adjustable focus for both lenses and adjustable interpupillary distance cater to various users. The 1920x1080 sub-round 0.49’’ large OLED display offers immersive viewing for an enhanced hunting experience.

Robust Construction for Extended Durability

Crafted from magnesium alloy, the HABROK is built to withstand harsh environmental conditions, ensuring long-lasting durability.

Convenient Replaceable and Rechargeable Batteries

Comes with four 18650 batteries, providing up to 6 hours of continuous operation per charge, allowing users to capture every moment without power concerns.

Energy-Efficient Auto Screen-Off Function

The smart algorithm automatically activates the screen-off function when tilted laterally at 75° or upward/downward at 70°, conserving battery energy effectively.

Included

• Hikvision Hikmicro Habrok HQ35L LRF 850 nm Thermal Binoculars (x1)
• Neck Strap (x1)
• Type-C Cable (x1)
• Tripod Adapter (x1)
• Battery (x4)
• Quick Start Guide (x1)
• Lint-free Cloth (x1)
• Battery Charger (x1)

Technical Specifications:

Thermal Module:

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 640 x 512
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 20 mK (@25°C), F#=1.0
• Lens (Focal Length): 35mm, F1.0
• Detection Range: 1800m
• Focus Mode: Focus Ring
• Field of View (H × V), Degrees / m @100m: 12.5°×10.1°/ 22.0m×17.6m
• Min. Focusing Distance: 3.5m
• Magnification: 3.0x-24.0x (8x)

Optical Module:

• Image Sensor: 1.88'' Progressive Scan CMOS
• Max. Resolution: 2560 x 1440
• Min. Illumination: 0.001 lux @ (F1.0 , AGC On)
• Field of View (H × V), Degrees/m @100 m: 13.9°x7.8° / 24.4m × 13.6m
• Focal Length: 31mm, F1.2
• Min. Working Distance: 3m
• Viewing Range at Night: 400m
• Magnification: 2.9x-23.2x（8x)
• Focus Mode: Focus Ring
• Smart IR: Yes

Image Display:

• Display: 0.49 inch, OLED, 1920 ×1080
• Contrast Adjustment: Yes
• Brightness Adjustment: Yes
• Palettes: Thermal (Black Hot, White Hot, Red Hot, Fusion); Optical (Day, Night, Auto)
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 8mm
• Eye Relief: 15mm
• Diopter (Range): -5D~+3D
• Tone Adjustment: Cold, Warm
• Zoom Pro: Yes

General:

• Protection Level: IP67
• Weight: 780g without batteries
• Dimension: 138.2 mm × 68.4 mm × 212.4 mm (5.4" × 2.7" × 8.4")
• Working Temperature: -30℃ ~ +55℃
• Interpupillary Adjustment Range: 60 mm to 74 mm
• Mounting Adapter: 1/4“-20-UNC

System:

• Record Video: Yes
• Capture Snapshot: Yes
• Hotspot: Yes
• GPS: Yes
• Digital Magnetic Compass: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hot Track: Yes
• Audio Recording: Yes
• Local Album: Yes

Power Supply:

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥6h (25 °C, with hotspot off)
• Type-C Power Supply: 5V DC, 2 A, Supports External Power Supply

Laser Rangefinder:

• Safety Class for Laser: Class 1
• Wavelength: 905nm
• Max. Measuring Range: 1000m
• Measurement Accuracy: ±1m
• Min. Measuring Range: 10m

Infrared Illuminator:

• Emitter: LED
• IR Wavelength: 850nm
• Beam Angle Adjustable: 7.6-11.5°
