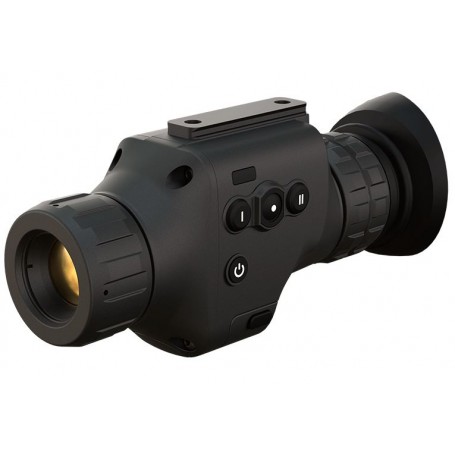

ATN ODIN LT 640 2-8X 25 mm Compact Thermal Monocular

ATN's Obsidian LT core drives this hands free, compact, ergonomic and versitile thermal monucular for the best observation expeirence. In the cover of night, trust ATN to give you sight.

Ergonomic Design

This Compact Thermal Monocular fits in one hand and is easily munipulated, giving the user versitility and easy acess to the menu.

Display

The Hi-Res 1280x960 display will provide clear and vivid images of the scene being observed.

HEAD / HELMET MOUNT

This Compact Thermal Monocular can be: Hand held, Helmet or Head mounted for long term comfortable observation of the scene.

LIGHT WEIGHT

Light weight and Ergonomic — this is one tool you'll want at all times!

INCLUDED ACCESSORIES

• soft carrying case

TECHNICAL SPECIFICATIONS

Lens 25 mm

Resolution 640x480, 60 fps, 12 μm

Magnification 2-8x

Field of View 17.6x13.2

Core ATN Obsidian Core LT

Display Resolution 1280x960 px

Eye relief 25 mm

IP rating Weather resistant

Color modes White Hot, Black Hot

Battery type 1 x CR123A (Li-ion)

Battery life (Li-ion) 2.5 Hrs (or Optional Rechargeable Battery with 5 Hrs of runtime)

Charging USB, type C port is on the Optional Rechargeable Battery

Operating Temperature -20°F to +120°F / -28°C to 48°C

Dimensions 5.16"x2.8"x1.81" / 131x71x46 mm

Weight 285 g

Human Detection Range 1250

Human Recognition Range 580

Human Identification Range 320

Warranty 3 Years
