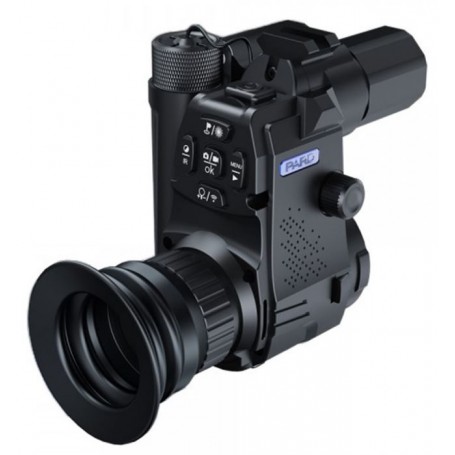

PARD NV-007SP LRF 940 nm Clip-on Night Vision Scope

Quick Attach and Detach

Featuring a ultra compact design, with a overall length of only 96mm.The NV007SP can fit right into your pocket and is very easy to carry.

• Quickly convert to night vision
• Keep scope's current eye relief
• Maintain scope’s zero

1920 * 1080 CMOS Image Sensor

Extremely sensitive 0.001 lux sensor makes ourdoor hunting activity easier to capture sharper and higher clarity images.

Shorter Body Length Compact Design

Ergonomic design with lightweight body makes your cheek more relaxed and comfortable during shooting, no need to adjust shooting postures and using habits.

• Lightweight
• Ergonomic Design

350yds IR Torch Distance

Three-level IR torch Illumination to meet needs in various occasions, easy to detect large or small targets.

• IR illuminating level
• Ultra-easy direction adjustability

Eyepiece Adjustment

By adjusting the eyepiece, the NV007S enables to get clear images without glasses just rotating eyepiece wheel, meeting all kinds of people’s needs.

• Diopter adjustment : ±5D

Self-activated Recording

When the device detects recoil, the whole shooting process will be recorded effortlessly in 20 seconds intervals and saved on the TF card.

• Record thrilling moments
• User-friendly setting steps

Mute Button

The buttons were designed in soft silicone material to minimize sound to zero, offering a clear advantage for any outdoor activity.

Optical Magnification

Utilising your scopes optical magnification to experience HD images without distortion. Optically zoom up to 14x to improve the detail and aiming precision.

• Improve aiming visibility

Specs

Model NV007SP LRF

Sensor

Resolution(px) 2560*1440

Sensitivity(lux) 0.001Lux

Frame rate(fps) 30

Optics

Objective lens 22.5mm

Optical Magnification(x) 4x

Digital zoom(x) 1x-3.5x

PIP zoom(x) 2x

Continuous digital zoom 4x-28x

Field of view (HxV) 22°, 12°, 25°

Eye relief(mm) 25

Diopter adjustment ±5D

Focus range 3cm-∞

Adaptor diameter(mm) 45,48

IR Illuminator

IR Type VCSEL

IR power(w) 5

IR illuminating level 3 levels

IR distance(m) 350

IR Wavelength(nm) 940

Display

Type OLED

Resolution(px) 1024*768

Reticle Style –

Reticle Color –

Color mode Color,Black&white

Photo / Video

Photo resolution(px) 2592*1944

Photo format JPG

Video resolution(px) 1920*1080

Video format MP4

Storage(GB) TF card(128GB MAX)

Main function

LRF detection range(yds) 1200yds

Red dot Yes

Self-activated recording Yes

Auto recording Yes

Loop recording Yes

Time stamp Yes

Record Audio Yes

Keyboard press sound Yes

Exposure compensation Yes

Interfaces

USB Type-C Yes

HDMI Output Yes

Connections

WiFi Yes

Supported Apps PardVision

Power Supply

Battery type 18650 Li-ion Battery

Output voltage(V) 3.7

Operating time(h,max) 8

External power supply(V) USB Type-C

Environmental characteristic

Degree of protection IP67

Operating temp(°C) -25 – +40

Recoil Power(J) 6000

Material

Housing AL6061+Plastic

Objective lens Glass

Measurement

Product dimension(L x W x H, mm) 105*120*71

105*134*71(LRF version)
