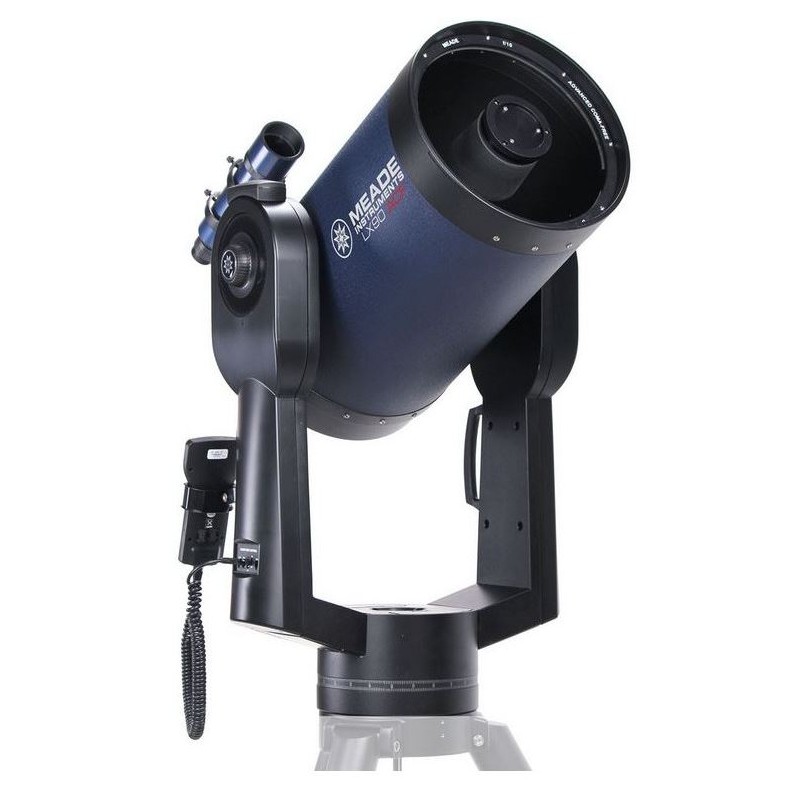

Meade ACF-SC 254/2500 UHTC LX90 GoTo OTA Telescope (without tripod)

The LX90 Mount:

Experience the wonders of the night sky effortlessly with the LX90 mount, designed for astronomers of all levels. Setting up is a breeze - simply confirm a pre-positioned reference star suggested by the mount, and you're ready to explore. This mount operates on the same principles as professional observatories, boasting positioning data for over 30,000 celestial objects right out of the box. From Deep Space Objects (DSOs) to planets, stars, and satellites, the LX90 has you covered. Its intuitive GoTo function offers nine selectable positioning speeds, ensuring swift, precise, and silent slewing to your desired targets. Plus, with software updates available online, you can keep your mount current with the latest data.

Equipped with motorized, 125mm diameter worm-drives on each axis, the LX90 ensures accurate tracking, perfect for capturing stunning astrophotographs. Its computer-optimized double fork mount provides exceptional stability and is remarkably lightweight for easy handling. The adjustable Meade tripod minimizes vibrations, enhancing the system's overall performance. Whether you prefer altazimuth or equatorial setup, the LX90 offers versatility to suit your needs. Control the mount remotely via an external computer using the AutoStar software suite, and add an autoguider port for enhanced functionality.

Paired with Schmidt-Cassegrain optics, the LX90 delivers exceptional performance across various applications, from planetary observation to deep-sky imaging. Its compact design reduces stress on the mount and ensures easy portability. With internal focusing, even with additional accessories attached, achieving precise focus is a breeze.

SC telescopes typically feature a spherical primary mirror, but the LX90 utilizes a correction plate developed by optical designer Bernhard Schmidt to eliminate spherical aberration. This design protects the main mirror from contamination and turbulence, ensuring sharp, clear images. The folded light path, named after Laurent Cassegrain, offers stability and comfort during observation, even without a ladder.

Included in delivery:

• AutoStar handbox with software
• GoTo function with 30,223 objects
• Built-in battery compartment

Included accessories:

• 1.25'' Eyepieces: 26mm
• Finder Scope: 8x50
• Deviating Optics: 1.25", 90° star diagonal
• Carrying Handle: Yes

Specifications:

Optics:

Type: Reflector

Build Type: ACF-Cassegrain

Aperture (mm): 254

Focal Length (mm): 2500

Aperture Ratio (f/): 9.8

Resolving Capacity: 0.54

Limit Value (mag): 13.8

Light Gathering Capacity: 1320

Tube Material: Aluminum

Tube Construction: Full tube

Coating: UHTC

Focuser:

Type of Build: Internal

Gear Reduction: Without

Mount:

Type of Build: LX90

Mounting Type: Azimuthal

Motors: Stepper motors

GoTo Control: Yes

Power Supply: 12V

Battery Compartment: Yes

Battery Life (h): 60

GPS: Yes

Software: AudioStar

GoTo Language: English

Database: 30,000

PEC Correction: Polar mode only (RA)

Precision: 1.5

Interfaces: Autoguider & AUX

Alignment Method: Easy Align

General:

Series: LX90

Total Weight (kg): 23

Weight of the Heaviest Component (kg): 23

Area of Application:

Astrophotography: Yes (Moon & Planets)

Moon & Planets: Yes

Nature Observation: No

Nebulae & Galaxies: Yes

Sun: No (Only with appropriate Sun filter)

Recommended For:

Beginners: Yes

Advanced: Yes

Observatories: No

Miscellaneous:

Battery Type: Baby (C, LR14)
