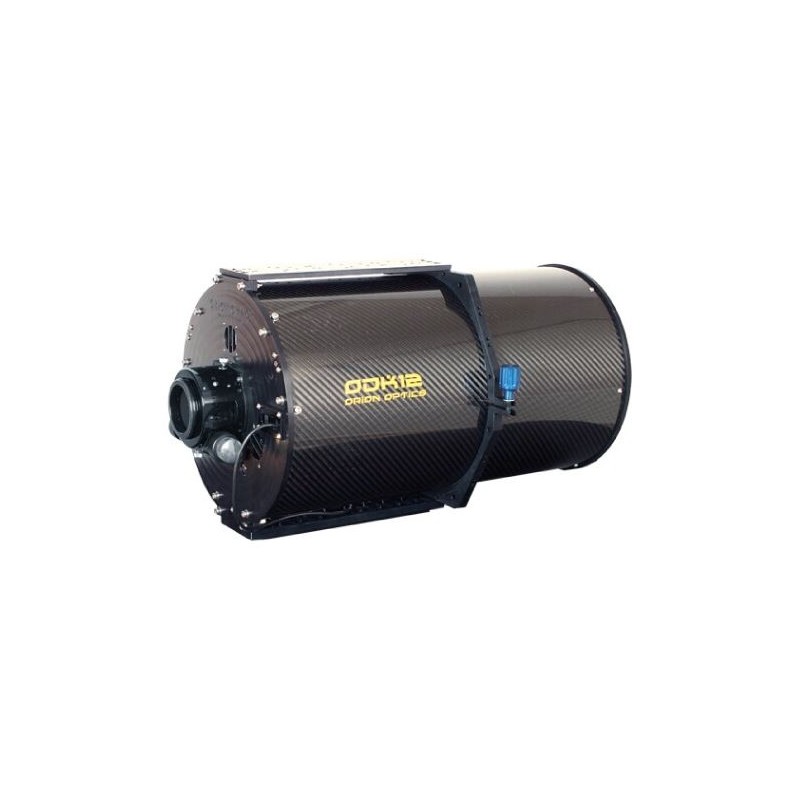

Orion Optics DK 300/2040 ODK12 OTA Dall-Kirkham telescope

The ODK-Series (Optimised Dall-Kirkhams) features a focal ratio of f/6.8, striking a balance between speed for excellent deep sky photo-visual use and sufficient focal length for detailed planetary work, whether visual or CCD applications.

Crafted from a Carbon Fibre sandwich design, the tube is exceptionally sturdy to prevent flexing and maintains zero expansion, ensuring the focal plane stability during long photographic exposures. Its open tube design and short length facilitate remarkably fast cool-down times.

Each model is equipped with three fans positioned behind the primary mirror to aid in cooling down the telescope efficiently.

Precise focusing across the ODK range is achieved with the ACU-3S 3”-Crayford Focuser, featuring a 10:1 reduction drive.

The primary mirror, made from Schott Borosilicate Low Expansion Suprax glass, is meticulously produced to an F/4 paraboloid configuration with a surface accuracy of 1/6 wave or better. Orion Optics UK employs the Zygo Laser Interferometer, one of the world's most precise measuring devices, ensuring top-notch optical quality.

The primary mirror is Hilux coated for optimal aluminium protection, providing the highest possible reflective surfaces.

Orion Optics UK manufactures aluminium tube rings on their own CNC milling machines, offering maximum security and precision. These rings are felt-lined to provide a secure grip to the polished tubes, with pressure adjustment facilitated by large knurled knobs.

The ODK series is supported by the precision ACU-3S 3” focuser, boasting a short draw tube length and internal threaded draw tube (76.2mm) for wide fields without vignetting. It features an ultra-accurate 10:1 slow-motion control and allows for 360-degree rotation for effortless setup with attached equipment.

Included Accessories

• Eyepiece Adaptor: 1.25" - 2"
• Prism Rail: Losmandy-Style
• Tube Clamps: Yes
• Corrector: Integrated

SPECIFICATIONS

Optics

Type: Reflector

Build Type: Dall–Kirkham telescope

Aperture: 300mm

Focal Length: 2040mm

Aperture Ratio: f/6.8

Resolving Capacity: 0.46

Limit Value: 14.2 mag

Light Gathering Capacity: 1840

Max. Useful Magnification: 600

Tube Weight: 19kg

Tube Diameter: 350mm

Tube Length: 615mm

Tube Material: Carbon

Coating: Hilux

Tube Construction: Full tube

Fully Corrected Field: 52mm

Reflector

Main Mirror Construction: Parabolic

Primary Mirror Material: Suprax

Secondary Mirror Material: Suprax

Secondary Mirror Diameter: 120mm

Adjustable: Yes

Ventilation for Central Mirror: Yes

Focuser

Type of Build: Crayford

Connection to Eyepiece: 2"

Backfocus: 218mm

Free Aperture: 76mm

Ring Clamp: Yes

Gear Reduction: 1:10 Fine Movement

Adjustment Range: 30mm

Rotating: Yes

Mount

Type of Build: OTA

Mounting Type: No mount

General

Series: ODK

Area of Application: Astrophotography (very good), Moon & Planets, Nebulae & Galaxies

Sun: No (Only with appropriate Sun filter)

Recommended for: Beginners (No), Advanced (Yes)

Observatories: Yes
