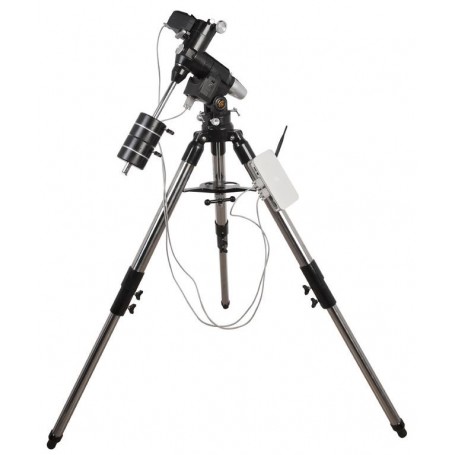

Explore Scientific Mount EXOS-2 PMC-8 Wi-Fi GoTo

The Bresser EXOS-2 Mount:

The EXOS-2 Mount is a sturdy and reliable mount designed to handle substantial loads, with a visual capacity of up to 13 kg and a photographic capacity of up to 10 kg. It offers precise tracking for both visual observation and astrophotography.

Featuring double radial ball bearings, the EXOS-2 ensures precise functionality, while its optimized RA axes minimize play. This robust and precisely engineered mount provides an easy entry point into astrophotography. Additionally, it can be upgraded with motorized 2-axis control.

Equipped with Explore Scientific's PMC-8 GoTo controls, this system boasts advanced features:

• The robust controller box generates its own Wi-Fi signal, providing access to essential interfaces.
• All motors are seamlessly connected to this unit, which includes an ST-4 compatible autoguider interface.
• Microstep operation ensures precise tracking, with PMC standing for Precision Motion Controller.

Operate the controls via Wi-Fi using a PC or tablet (compatible with Windows 8.1, Windows 10, iOS, Android, and mobile devices with screen sizes of 7.1” or higher). The ExploreStars app offers a user-friendly interface, displaying available stars for initial tracking and a vast database of celestial objects along with detailed information.

At the core of the controller lies a fully self-contained 2-channel processor with 8 CPUs and a Wi-Fi ethernet 10/100 adapter with IP functions. This enables operation via web browser, ASCOM, APP, or through a serial connection. The Open GoTo feature allows for custom firmware, enabling users to personalize device functions and create custom object lists.

Please note: Prior to system startup, it's advisable to install the ExploreStars app on your Windows device.

Included components:

• Sturdy mount
• Counterweight kit
• Durable 3-leg steel tripod

Specifications:

Capacity:

Max. Additional Load Capacity (kg): 12

Power Supply: 12V

Counterweights: 2 (4.5kg each)

Mounting:

Saddle: Vixen-Style

Drive Type: Worm Wheel

Autoguider Interface: Yes (ST-4 interface)

Level: Yes

GoTo System: Yes

Equipment:

Tripod:

Max. Height (cm): 108

Material: Steel

Weight (kg): 2.9

General:

Series: PMC-8

Total Weight (kg): 19.5

Type: Mount

Build Type: Equatorial

GoTo Control:

Alignment Method: 3-star

WiFi: Yes
