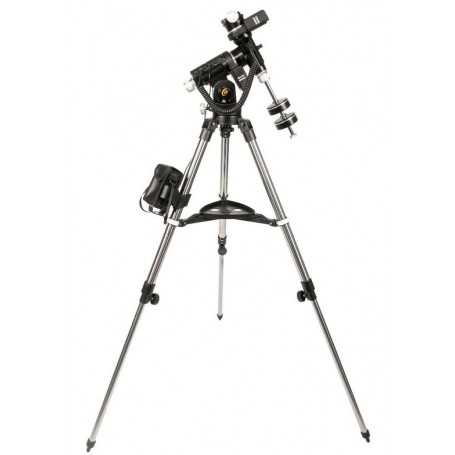

Explore Scientific Mount iEXOS-100 PMC-8 Wi-Fi GoTo
These equatorial mounts are equipped with an integrated PMC-8 system, a robust computerized control system accessible via Wi-Fi using any smartphone or tablet. It combines powerful PMC electronics with a user-friendly graphic interface, GPS functionality, and other features available on smartphones or tablets. The benefits include automatic updates for the essential ExploreStars app.
394.19 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
These equatorial mounts are equipped with an integrated PMC-8 system, a robust computerized control system accessible via Wi-Fi using any smartphone or tablet. It combines powerful PMC electronics with a user-friendly graphic interface, GPS functionality, and other features available on smartphones or tablets. The benefits include automatic updates for the essential ExploreStars app. Additionally, the ASCOM interface allows compatibility with almost every program supporting standard ASCOM.
The initial 2- or 3-star alignment process through the GoTo controls is intuitive, making it straightforward for beginners and exceptionally swift for seasoned observers.
The iEXOS-100 mount offers additional advantages:
- Effortless axial clamping for easy adjustment.
- Micro-stepper motors and precise worm gears in both axes.
- Low-noise toothed belt drive with minimal backlash.
- Mini-USB interface for wired PC connection using INDI/ASCOM.
- ST-4-compatible autoguider interface.
This lightweight mount offers significant electronic capabilities and mechanical features, making it ideal for travel or mobile astrophotography, especially suitable for apochromats with apertures ranging from 80 to 102mm.
Explore Scientific's PMC-8 GoTo controls consist of a sturdy controller box that generates its Wi-Fi signal and provides necessary interfaces. All motors connect to this unit, including an ST-4 compatible autoguider interface. The controls support microstep operation for precise tracking.
Operate the controls via Wi-Fi using a PC or tablet (compatible with Windows 8.1, Windows 10, iOS, Android, and mobile devices with screen sizes of 7.1” or higher) through the specially designed ExploreStars app. This user-friendly platform displays available stars for tracking initialization and numerous celestial objects from the database along with additional information.
At the core of the controller lies a fully self-contained 2-channel processor with 8 CPUs and a Wi-Fi ethernet 10/100 adapter with IP functions, enabling operation via web browser, ASCOM, APP, or through a serial connection. Open GoTo allows users to customize firmware, adapt device functions, and create custom object lists.
Note: Install the ExploreStars app on your Windows device before starting the system.
Specifications:
Capacity:
Max. Additional Load Capacity (kg): 7
Power Supply: 12V
Counterweights: 2
Mounting:
Saddle: Vixen-Style
Motor Type: Stepper Motors
Weight (Mount Head Only) (kg): 4
Drive Type: Worm Wheel
Level: Yes
Hand Controller: No
Controllable via PC: Yes
GoTo System: Yes
Equipment:
Accessory Plate: Yes
Motor-Powered: Yes
Battery Included: No
Tripod:
Material: Steel
Weight (kg): 2.5
General:
Series: PMC-8
Total Weight (kg): 8.5
Type: Mount
Build Type: Equatorial
GoTo Control:
Alignment Method: 2-star
Autoguiding: Yes
Software: PMC-8
GoTo Language: Multilingual
Wi-Fi: Yes
Miscellaneous:
Battery Type: Baby (C, LR14)
Data sheet
