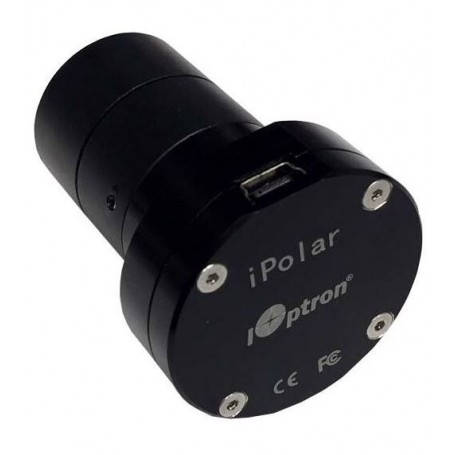

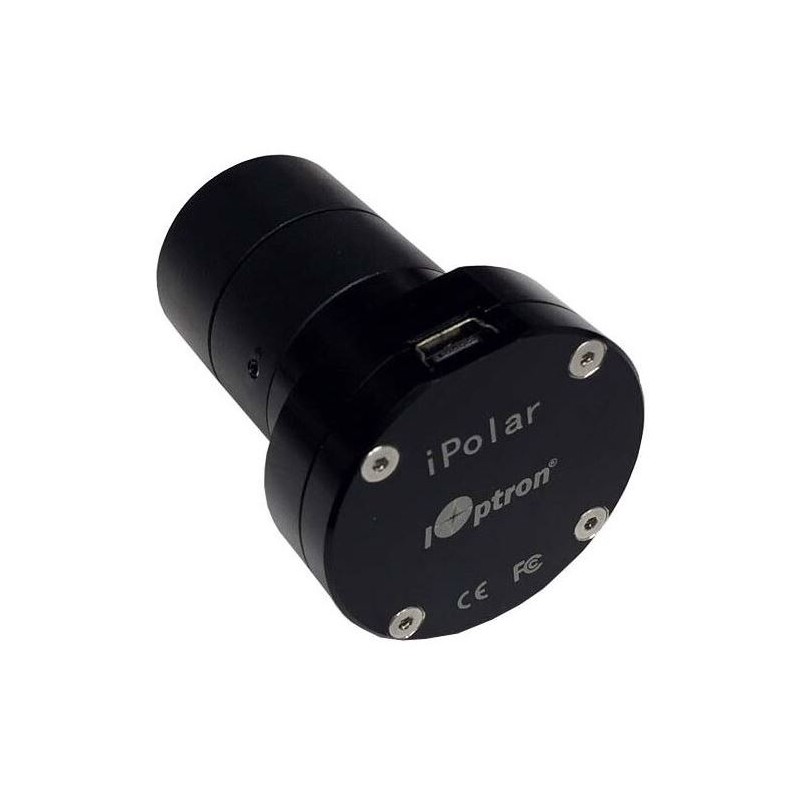

iOptron Pole finder iPolar electronic polarscope for CEM26/GEM28
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

iOptron Pole finder iPolar electronic polarscope for CEM26/GEM28

Achieving precise polar alignment is often a time-consuming challenge. It can take considerable effort and patience, with the risk of setbacks like accidental bumps to the mount. iOptron’s Center-balanced Equatorial Mounts (CEM), such as the CEM25 and CEM60, feature an accessible polar scope, enabling quick and accurate alignment in just minutes.

342.08 $
Tax included

278.11 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

PoleMaster: Precision Made Simple

Achieving precise polar alignment is often a time-consuming challenge. It can take considerable effort and patience, with the risk of setbacks like accidental bumps to the mount. iOptron’s Center-balanced Equatorial Mounts (CEM), such as the CEM25 and CEM60, feature an accessible polar scope, enabling quick and accurate alignment in just minutes. However, conventional methods still require uncomfortable positioning, such as bending or kneeling.

The PoleMasterTM electronic polar scope streamlines this process. Mounted at the front of the R.A. axis, it utilizes a highly sensitive camera to capture images of the northern sky, revealing not just Polaris but also faint nearby stars. Using this data, it calculates the precise position of the North Pole, aligning it with the rotation center of your R.A. axis. With sophisticated algorithms, the PoleMaster detects both points, displayed on-screen for easy adjustment until alignment is achieved.

Key Features:

  • Fast and user-friendly solution
  • Direct alignment with the pole
  • Achieves high precision alignment within two minutes, up to 30 arcsec

This iPolar version includes a rear USB port and is compatible with iOptron CEM26, GEM28, and SkyGuider Pro mounts.



Specifications:

Apparent Field of View: 13°

Position Precision: 30 arcsec

Interfaces: Rear USB 2.0 port

Sensor Type: CMOS Chip

Pixel Size: 3.75

Bit Depth: 8 bits

Supported Operating Systems: Windows Vista, Windows 7/8/8.1/10

Suitable for Mounting: CEM26 / GEM28 / SkyGuider Pro

Weight: 70g

Series: iPolar

Type: Finder

Build Type: Pole Finder

Data sheet

TTP3W76RPV
