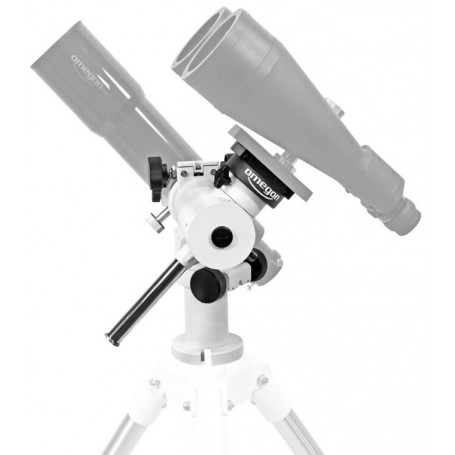

Omegon Mount Twinmaster AZ (without tripod)

Omegon Twinmaster - Your Dual Telescope Altazimuth Mount

Are you the proud owner of more than one telescope? Do you desire a mount capable of accommodating both your primary telescope and perhaps a sizable pair of binoculars? Look no further than the Omegon Twinmaster, an altazimuth mount designed to effortlessly carry two optical instruments simultaneously.

Versatility for Two Instruments

With the Omegon Twinmaster, attaching your main telescope and an additional instrument, such as binoculars, is a breeze. Optimal results are achieved when the two instruments possess distinct characteristics, offering varied observing experiences. While your telescope delves into intricate details, binoculars provide expansive views of the celestial panorama. Enjoy the freedom to pair different instruments according to your preferences.

Effortless Instrument Mounting

Mounting your telescopes or binoculars is simplified through the GP slots, accommodating instruments with standard dovetail rails. Secure your setup swiftly using the side screws or opt for a quick slide-in attachment method. Thanks to this intuitive design, assembling and disassembling your configuration on the azimuth mount is a matter of moments.

Precise Movements in Every Direction

Benefit from manual axis locks that facilitate unrestricted movement of each instrument, easily securing them in position when desired. Two separate knobs offer precise slow-motion adjustments in any direction, ensuring smooth tracking with both instruments simultaneously. Experience stress-free observing with maximum comfort.

Support for Heavy Optical Instruments

Capable of accommodating instruments weighing up to 13kg on each side, the Omegon Twinmaster is ideal for larger optical setups, including a 10-inch SC OTA. Utilize the 20mm counterweight shaft (counterweights not included) to achieve optimal balance, adjusting the load as needed for seamless operation.

Key Advantages:

• Altazimuth mount for simultaneous mounting of two instruments
• Supports heavy optical instruments, up to 13kg each
• Simultaneous tracking using slow-motion controls for both instruments
• Manual clamps for each instrument ensure secure attachment
• Quick connection via GP slot for efficient setup
• Includes one 20mm counterweight shaft for balancing

Specifications:

Max. additional load capacity: 13.0kg

Diameter of counterweight bar: 20mm

Weight of mount head only: 5.5kg

Mounting saddle: Vixen-Style

Special features: Fine adjustment

Fitting for prism rail: Yes

Equipment: Tripod (tripod not included)

Series: Advanced

Type: Mount

Type of build: Azimuthal
