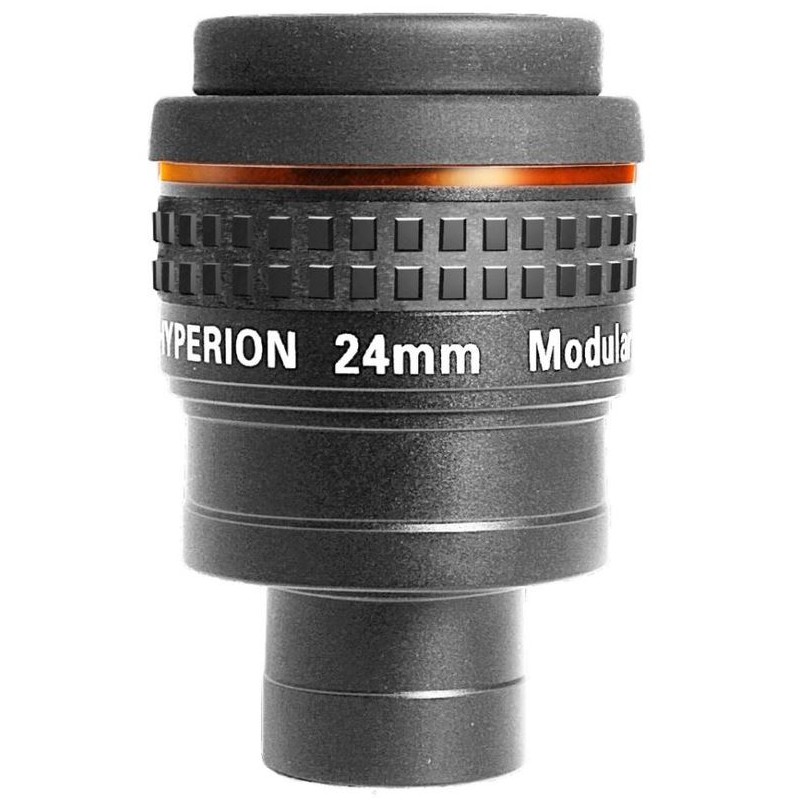

Baader Hyperion eyepiece 24mm

The Baader Hyperion multifunctional wide-angle eyepieces set a new benchmark in optical engineering, blending advanced technology with user-centric features:

These eyepieces boast a 68° field of view, which is ideal for the human eye. This wide angle maintains full visibility of the entire view even with slight involuntary head movements, optimizing the observation experience.

The optical clarity across the entire field is impeccable, thanks to the configuration of 8 lens elements in 5 groups. This setup ensures excellent color fidelity right to the edges of the field of view.

Unique dual functionality allows these eyepieces to offer two focal lengths: a 2" wide field low magnification when the negative achromat group is removed, and a standard magnification with the 1.25" negative achromat group installed.

Designed with high refractive index glass elements, these eyepieces achieve minimal distortion and very low astigmatism. They also boast the shortest field stop position among wide-field eyepieces currently known, enhancing their performance.

These eyepieces are tailored for comfortable binocular viewing, ensuring no 'kidney-bean effect'—the image remains stable and visible even with involuntary head movements, a common issue with many wide-field designs.

Another standout feature is their compatibility as projective lenses for photography. By swapping the eyecup for an M43-T2 adapter, they can connect to SLR and digital cameras. The inclusion of various adapter rings enables compatibility with almost any camera possessing a front thread. These eyepieces also accommodate video cameras and webcams. The option to adjust the focal length by adding spacers, along with their compatibility with bino-viewers due to their diameter, adds further versatility. Fold-down eyecups provide adequate eye relief for spectacle wearers.

Key Advantages:

• Exceptional craftsmanship, ensuring durability and precision.
• Comfortable and relaxed viewing with a generous field of view.
• Outstanding sharpness and superb color fidelity across the entire field.
• Versatility with dual barrel use (1.25" and 2").
• Minimal optical distortion and astigmatism.
• Absence of the 'kidney bean' effect for a stable viewing experience.
• Baader Phantom Group coating™: This advanced 7-layer broadband anti-reflection coating significantly reduces residual reflections and is tailored to each type of glass, ensuring minimal light loss and no interference from scattered light. These coatings are designed to be most effective around 520nm, where the human eye is most sensitive at night, rendering them nearly colorless and highly efficient.

If a lens displays a strong green reflection when viewed directly, it indicates a non-Baader Phantom Group coating, which is indicative of older coating technologies that reflect light within the critical spectral range of 500-550nm, thus reducing optical efficiency.

Specifications:

Focal Length: 24 mm

Apparent Field of View: 68°

Eye Relief: 17 mm

Number of Lenses: 8

Number of Groups: 5

Telescope Connection: 2"

Optical System Coating: Multiple

Special Features:

Optional camera adapter: Yes

Adjustable eyecup: Folding

Filter thread: Yes

Inert gas charge: No

General:

Series: Hyperion

Type: Eyepiece

Build Type: SWA (Super Wide Angle)
