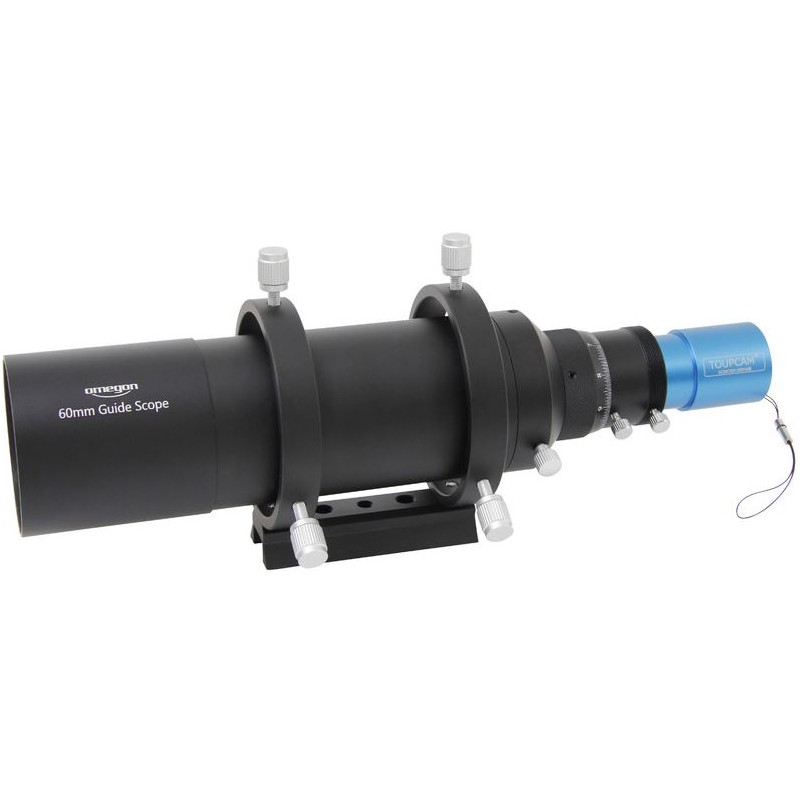

Omegon Camera Easy Autoguiding-Set60

Presenting the Omegon Microspeed 60mm guide scope and the Omegon Pro Guide 1200 M mono guider, this set revolutionizes astrophotography, offering enhanced ease and reduced equipment needs.

Guiding with the Mini Guide Scope simplifies the process, providing the functionality of a traditional guide scope but in a lighter and more user-friendly design. Gone are the days of cumbersome guide scopes; now, with the Mini Guide Scope, locating guide stars is a breeze. Simply attach it to your telescope like a finder or utilize it as a convenient large finder scope for quicker object location during visual observation.

Key Advantages:

• Rapidly locate astronomical objects and guide stars
• Designed for both visual and photographic use
• Compatible with any 1.25-inch eyepiece
• Worm-gear focuser for rapid and precise focusing, preventing rotation of the camera and eyepiece.

What sets our Omegon guide scope apart?

Featuring a built-in worm-gear focuser with 10mm displacement, the Omegon guide scope allows for incredibly precise focus adjustment without any rotation of mounted equipment or the field of view. Its robust black anodized aluminum housing ensures durability, while the milled and knurled focusing ring enables straightforward and precise fine focusing. Complete with matching tube clamps and a Synta-style mounting plate, assembly and disassembly are effortless.

The Omegon Pro GUIDE 1200 Camera serves as a compact autoguiding solution, perfectly suited for beginners venturing into planetary, lunar, and deep-sky astrophotography.

Planetary and Lunar Astrophotography:

Ideal for beginners, this camera facilitates the capture of detailed images of celestial bodies such as Jupiter, Saturn, and lunar craters, mirroring the view through your eyepiece. Share your astronomical experiences with friends and family or enjoy live observations together.

Deep-Sky Astrophotography:

Thanks to the high sensitivity of its modern CMOS chip, imaging nebulae and galaxies is now more accessible than ever before. Capture images revealing details imperceptible through visual astronomy, owing to the sensor's high quantum efficiency and low read noise.

Autoguiding:

With its high sensitivity CMOS sensor, the camera effortlessly locates suitable guide stars across the sky, even fainter ones. Guide with short exposure times and high guiding frequencies to correct minor tracking errors of your mount. Native compatibility with PHD2 and an inbuilt ST4 Guide-Port make it an ideal choice for autoguiding.

Functional Shape:

Crafted from anodized aluminum, the camera's sturdy body resembles a 1.25-inch eyepiece, ensuring compatibility with all telescopes without adding undue strain. The camera's front features a C- & CS-Mount thread or, through an adapter, a regular 1.25-inch filter thread, allowing direct attachment of small CCTV lenses or a vast selection of astronomical filters.

Transmission:

Equipped with a filter window to shield the sensor chamber from dust and humidity, the camera provides accurate color representation for color cameras, thanks to the included infrared-blocking filter. For mono cameras, an anti-reflection window transparent to a wide range of wavelengths enables unrestricted control over the transmission curve, essential for advanced imaging and photometric applications.

Compatibility:

The Omegon Pro cameras integrate seamlessly with a wide range of astrophotography programs through common interfaces such as ASCOM and INDI, with native compatibility expanding to programs like PHD2 and N.I.N.A.

Specifications:

Capacity: Autoguide, Moon & Planets

Sensor Type: CMOS Chip (AR0130CS)

Chip Size (mm): 4.8 x 3.6

Megapixel: 1.2

Pixel Size: 3.75

Colour Camera: No

Image Format: 4:3

Resolution (Pixel): 1280x960

Bit Depth (Bit): 8

Active Cooling: No

Power Supply: USB

Interfaces: USB 2.0, ST-4

Autoguider: Yes

Supported Operating Systems: Windows 7/8/10

Connection (to the telescope): C-Mount

Images per Second: 28 (at full resolution)

Reading Noise: 3.3e-

Software: Included

Operating Temperature: -10°C - 50°C / 30-80%RH

Chip Diagonal (mm): 6

Focal Length (mm): 240

Aperture Ratio (f/): 4

Lens Diameter (mm): 60

Fixation: 1/4" & 3/8"

Connection (to eyepiece): 1.25"

Connector (at camera end): T2 (M42x0.75)

Special Features: Ring Clamp, Rotating, Fine Adjustment, Fitting for Prism Rail (Dovetail rail for universal finder scope shoe)

Equipment: Filter Wheel

General Weight (g): 970

Series: Easy Autoguiding-Set

Type: Camera

Build Type: Guidescope

Area of Application: Autoguide, Moon & Planets
