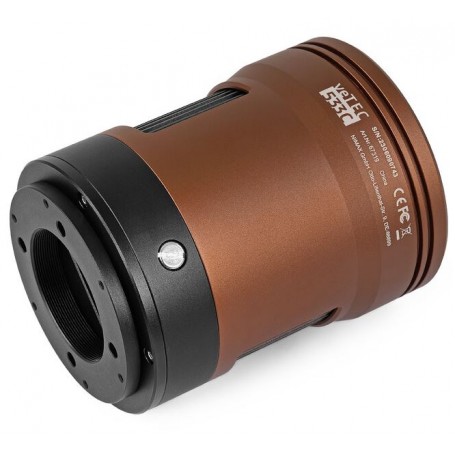

Omegon Camera veTEC 533 C Color

Introducing the Omegon Pro veTEC 533, the upgraded successor to the esteemed veTEC 16000 camera. This advanced model features a new square Sony IMX533 sensor, representing a significant leap forward while retaining the same pixel size of 3.8µm

1080.63 $
Tax included

878.56 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Introducing the Omegon Pro veTEC 533, the upgraded successor to the esteemed veTEC 16000 camera. This advanced model features a new square Sony IMX533 sensor, representing a significant leap forward while retaining the same pixel size of 3.8µm:

Enhanced Features:

  • Improved Quantum Efficiency: Achieving approximately 80% efficiency for superior light sensitivity.
  • Reduced Readout Noise: Now at a mere 1.3e- @Unity Gain, ensuring cleaner images with less interference.
  • Higher Full-Well Capacity: Choose between 50,000 e- or 100,000 e- to suit your specific exposure needs.
  • ADC: Upgraded to 14-bit for precise color rendering and expanded dynamic range.
  • Zero-Amp-Glow: Eliminate unwanted amplifier glow for even clearer images.

The result is a camera that delivers even less noise and greater dynamic range, enhancing your astrophotography experience.

Professional Deep-Sky Astrophotography: With its large square sensor, the veTEC 533 is perfectly suited for capturing wide nebulas, star fields, and lunar landscapes, rivaling the performance of DSLR cameras.

Thermoelectric Cooling: Experience reduced image noise with the advanced cooling system, maintaining temperatures up to 40°C below ambient for exceptionally clean final images.

USB-Hub: Streamline your setup with two integrated USB ports, allowing easy connection of additional devices like guiding cameras through a single hub, minimizing cable clutter.

Adaptable Design: With its T2 thread and short back focus of only 17.5mm, the camera can seamlessly integrate into almost any astrophotography setup. The included 2" nosepiece adapter ensures hassle-free connection to telescopes.

Robust Portability: Transport and store the camera securely in the provided sturdy carrying case, complete with custom-fit foam inlet for added protection.

Professional Planetary, Lunar, and Solar Astrophotography: Capture stunning images of celestial objects with high framerates and USB 3.0 connectivity, facilitated by sophisticated electronics and ample bandwidth.

Transmission: Equipped with a filter window to safeguard the sensor chamber from dust and humidity. The veTEC 533 color variant features an infrared-blocking filter for accurate color reproduction, while the mono variant offers versatile transmission control for advanced applications.

Compatibility: Seamlessly integrate with a wide range of astrophotography programs through common interfaces like ASCOM and INDI. Enjoy native compatibility with popular software suites such as PHD2 and N.I.N.A.



Scope of Delivery:

  • Camera
  • T2 to 2" adapter
  • USB 3.0 Cable
  • 12V 3A Power Supply (EU-Plug)
  • Sturdy carrying case
  • Desiccant plug



Specifications:

Capacity: Full Frame

Sensor Type: CMOS Chip (Sony IMX533)

Sensor Size: 11.3 x 11.3 mm

Sensor Diagonal: 16 mm

Pixel Size: 3.8 µm

Resolution: 3008 x 3008 pixels

Megapixel: 9 MP

Bit Depth: 14 bits

Frame Rate: 20 fps (at full resolution)

Color Camera: Yes

Active Cooling: Yes

Max. Cooling Difference Below Room Temperature: -30°C

Power Supply: 12V (3A)

Interfaces: USB 3.0 (2x USB 2.0 Hub)

Autoguider: No

Supported Operating Systems: Windows 7/8/10, Linux (INDI)

Telescope Connection: 2"

Filter Thread: Yes (2")

Flange Focal Distance: 17.5 mm

Binning: 2x2, 3x3, 4x4 (Digital)

Buffer Memory: 512 MB DDR3 RAM

Shutter: Rolling Shutter

Equipment: Filter Wheel (No), Transport Cases (Yes), Power Pack (Yes)

Cable: USB

Series: veTEC

Length: 104 mm

Diameter: 84 mm

Weight: 540 g

Outer Material: Aluminum

Color: Bronze

Type: Camera

Type of Build: Astronomical Cameras

Area of Application: Autoguider (No), Moon & Planets (Yes), Nebulae & Galaxies (Yes)
