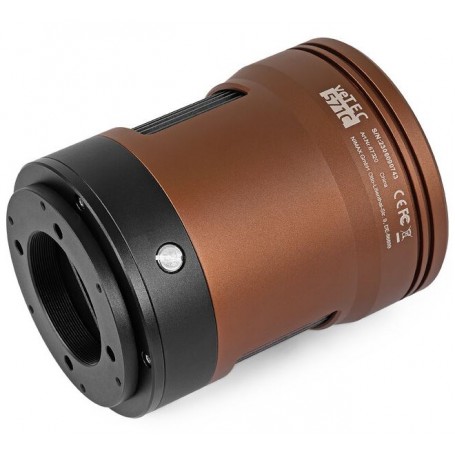

Omegon Camera veTEC 571 C Color

Introducing the Omegon Pro veTEC 571 C, a powerhouse astrophotography camera boasting the latest Sony IMX571 sensor. With a pixel size of 3.8µm and APS-C format, this camera stands as the elder sibling to the veTEC 533 C.

Key Features:

• High Quantum Efficiency: Achieving an impressive efficiency of approximately 80%, ensuring optimal light sensitivity for superior image quality.
• Low Readout Noise: With a mere 1.5e-, experience minimal interference for clearer, more detailed images.
• Expanded Full-Well Capacity: Choose between 50,000 e- or 100,000 e- to tailor exposures to your specific needs.
• 16-Bit ADC: Delivering precise color rendering and an extended dynamic range for unparalleled image quality.
• Zero-Amp-Glow: Eliminate unwanted amplifier glow for distraction-free images.

Professional Deep-Sky Astrophotography: The large sensor is ideal for capturing wide nebulas, expansive star fields, and detailed lunar landscapes, rivaling DSLR cameras in versatility.

Thermoelectric Cooling: Equipped with advanced cooling technology, the camera minimizes thermal noise, ensuring images remain crisp and clean, even at temperatures 30°C below ambient.

Streamlined Connectivity: Benefit from two USB ports at the camera's rear, reducing cable clutter and facilitating easy daisy-chaining of additional devices like guiding cameras.

Versatile Adaptability: Thanks to its T2 thread and short 17.5mm back focus, the camera seamlessly integrates into almost any astrophotography setup. Additionally, the included 2" nosepiece adapter simplifies connection to telescopes.

Robust Portability: Transport and store the camera securely in the provided sturdy carrying case, complete with a custom-fit foam inlet for added protection during travel or storage.

Professional Planetary, Lunar, and Solar Astrophotography: Capture stunning images of celestial wonders with high framerates and USB 3.0 connectivity, facilitated by sophisticated electronics and ample bandwidth.

Transmission: Safeguard the sensor chamber from dust and humidity with the filter window. The color variant features an infrared-blocking filter for accurate color reproduction, while the mono variant offers versatile transmission control for advanced applications.

Compatibility: Seamlessly integrate with a wide range of astrophotography programs via common interfaces like ASCOM and INDI. Enjoy native compatibility with popular software suites such as PHD2 and N.I.N.A.

Scope of Delivery:

• Camera
• T2 to 2" adapter
• USB 3.0 Cable
• 12V 3A Power Supply (EU-Plug)
• Sturdy carrying case
• Desiccant plug

Specifications:

Capacity: APS-C Format

Sensor Type: CMOS Chip (Sony IMX571)

Sensor Size: 23.5 x 15.7 mm

Sensor Diagonal: 28.3 mm

Pixel Size: 3.8 µm

Resolution: 6224 x 4168 pixels

Megapixel: 26 MP

Bit Depth: 16 bits

Frame Rate: 7 fps (at full resolution)

Color Camera: Yes

Active Cooling: Yes

Max. Cooling Difference Below Room Temperature: -30°C

Power Supply: 12V (3A)

Interfaces: USB 3.0 (2x USB 2.0 Hub)

Autoguider: No

Supported Operating Systems: Windows 7/8/10, Linux (INDI)

Telescope Connection: 2"

Filter Thread: Yes (2")

Flange Focal Distance: 17.5 mm

Binning: 2x2, 3x3, 4x4 (Digital)

Buffer Memory: 512 MB DDR3 RAM

Shutter: Rolling Shutter

Equipment: Filter Wheel (No), Transport Cases (Yes), Power Pack (Yes)

Cable: USB

Series: veTEC

Length: 104 mm

Diameter: 84 mm

Weight: 540 g

Outer Material: Aluminum

Color: Bronze

Type: Camera

Type of Build: Astronomical Cameras

Area of Application: Autoguider (No), Moon & Planets (Yes), Nebulae & Galaxies (Yes)
