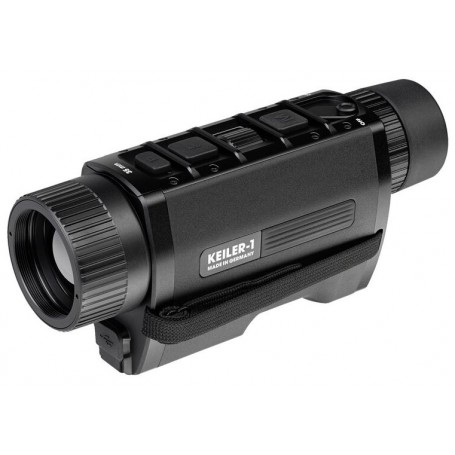

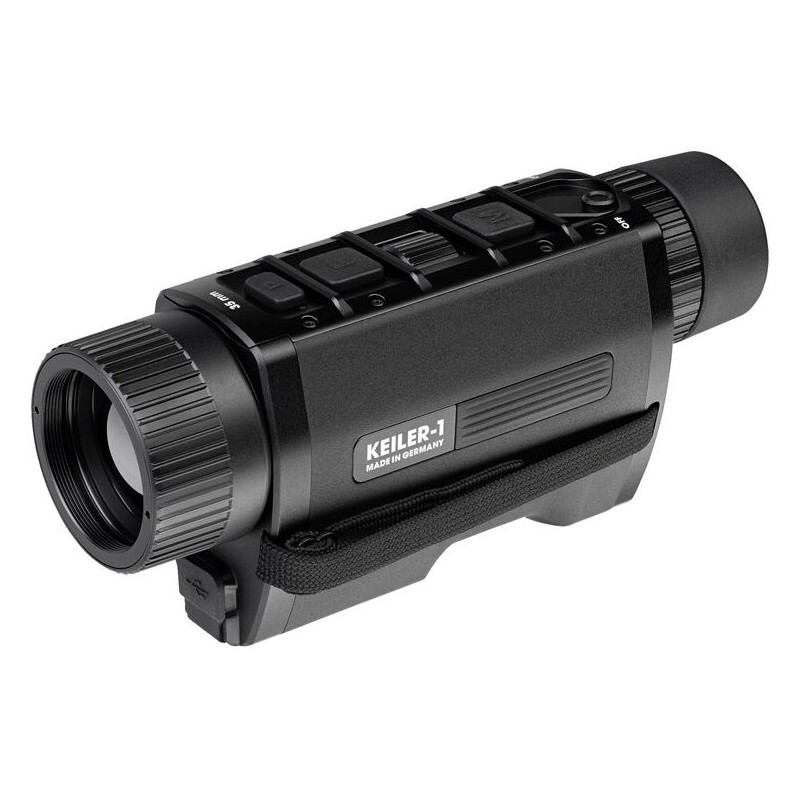

Liemke Thermal imaging camera Keiler-1

EXCEPTIONAL HAND-HELD DEVICES FROM LIEMKE – COMPACT AND PORTABLE

From versatile options for still and stand hunting across fields and forests to specialized long-range units for extensive applications:

The thermal imaging optics of the KEILER series offer top-tier imaging quality coupled with intuitive handling. Their compact size allows for single-handed operation and convenient storage in any coat pocket. Enjoy comfortable day and night observations with maximum precision, all in a pocket-sized package!

SUPERIOR IMAGING

Experience brilliant imagery thanks to the high-resolution 640x512 pixels 12 μm VOx sensor and 35mm f/1.0 lens. Advanced image processing software and two quick-change image modes adapt to various observation conditions, delivering natural-looking images with exceptional detail. Choose from five color modes to suit your preferences.

USAGE RECOMMENDATIONS

All hand-held thermal imaging devices of the KEILER series boast premium quality. While sharing similar functionalities and features, they vary in detection range, field of view, sensor, and lens. Your choice between an all-rounder or a specialized unit largely depends on the conditions of your hunting terrain.

KEILER-1

An outstanding all-rounder tailored for hunting in diverse field and forest environments.

INTUITIVE OPERATION AND CUSTOMIZATION

The central scroll wheel serves as the primary control, allowing intuitive navigation through menus, zooming, and other functions. Customize the menu structure with standard, custom, and basic modes, alongside quick-access options for frequently used functions. With excellent tactile design, you can locate all essential buttons effortlessly, even in complete darkness. Get ready for action: The device is operational within five seconds of switching on!

INCLUDED ACCESSORIES

• Hand strap
• 1 LIEMKE BP-K Li-Ion rechargeable battery
• Neck strap Slim
• Neoprene cover
• Tripod adapter plate with screws and offset wrench
• Power supply unit with USB-C connection and 4 plug adapters
• Cable USB-C to USB-A
• Lens cleaning cloth
• Instruction manual
• Adapter for LIEMKE carrying strap (art. no. 80409753; not included in delivery)

SPECIFICATIONS

Capacity

Build Type: Monocular

Technology: Thermal imaging camera

Magnification: 1.9

Digital Zoom: 10

Detection Distance (m): 1,750

Objective: 35 mm (F1.0)

Sensor Type: VOx

Pixel Size: 12

Display Resolution (Pixel): 1024x768

Image Cycle Rate (Hz): 50

Battery Life (h): Up to 9

Special Features

Video Connection: Yes

WiFi: Yes

Splash-Proof: Yes

Watertight: Yes

Field of View

Field of View at 100m (m): 22x17.6

Area of Application

Hunting & Nature Observation: Yes

General

Length (mm): 158

Width (mm): 47

Height (mm): 72

Weight (g): 465

Series: Keiler
