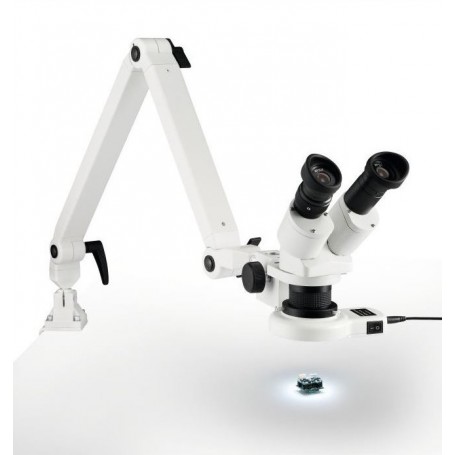

Eschenbach Stereo microscope 33213, articulated arm

Featuring an articulated arm and LED reflected light ring illumination, this device offers precise magnification and optimal visibility for intricate work.

Technical Details:

• Stereo head with a 45° angled view, 360° rotatable, and adjustable interpupillary distance ranging from 54-74mm.
• Magnification ranges from 10x to 20x, upgradeable to up to 40x.
• Lenses include a rotating turret with 1x and 2x options in a coaxial lens configuration.
• Field number: 19
• Working distance: 83mm
• Coarse adjustment for focus on both sides.

Illumination:

• LED reflected light ring illumination, similar to product no. 6091

Please note: This device does not include phase contrast, polarization, fluorescence, interference contrast, dark field, mineralogy, or rechargeable battery operation.

Specifications:

Optics:

Magnification: 20 (10, 20)

Eyepiece: 10 (Wide-angle eyepiece)

Lighting: LED (Ring illumination)

Image scale: 1, 2, coaxial

Mechanics:

Binocular build

Viewing posture: 45° oblique viewing, 360° rotating head

Coarse movement for focusing

Working distance: 83mm

Special Features:

No built-in digital camera

No centering stage

Power plug for power supply

General:

Color: Black-white

Dimensions: 910mm x 350mm x 310mm

Weight: 6790g

Suitable for beginners and advanced users

Field of Application: Suitable for industry, metallurgy, semiconductor technology, materials technology, and parasite analysis.
