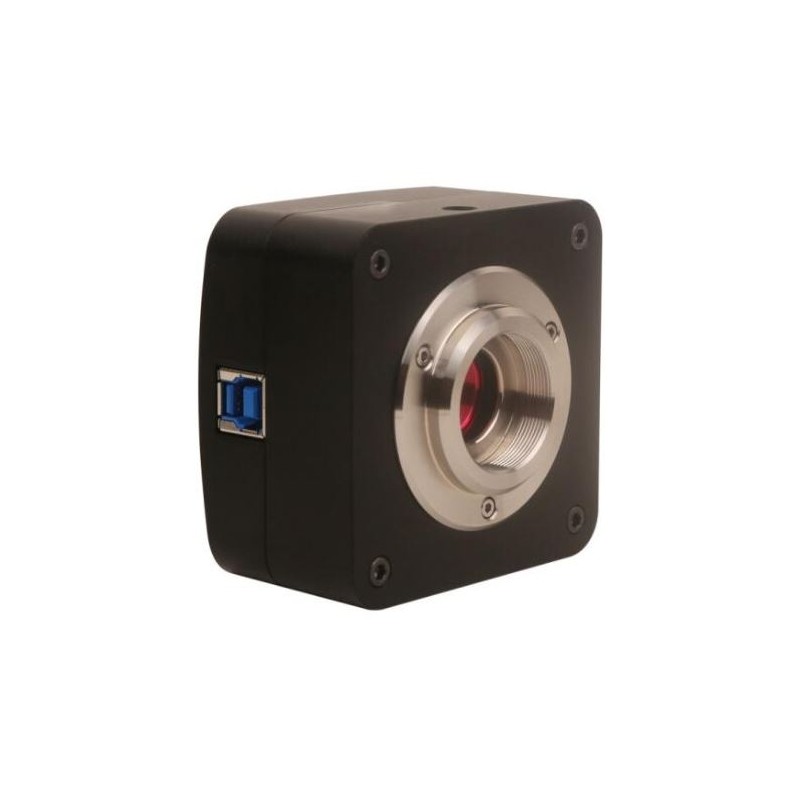

ToupTek Camera ToupCam E3ISPM 20000, color, CMOS, 1", 2,4 µm, 15 fps, 20 MP, USB 3.0

The camera features a SONY Exmor Back-illuminated CMOS sensor with a USB 3.0 interface, providing real-time 8/12/14/16-bit depth switch capabilities depending on the sensor type. It boasts super high sensitivity up to 2350mV (IMX385) with ultra-low noise and low power dissipation.

Offering hardware resolutions ranging from 1.5M to 20M, the camera supports both Rolling Shutter and Global Shutter functionalities. It comes in a standard C-Mount camera design housed in CNC aluminum alloy for durability.

Equipped with advanced video and image processing application ToupView, it ensures ultra-fine color with a hardware Color Engine, enabling high frame rates of up to 15 frames for 20M resolution. The camera is compatible with Windows, Linux, macOS, and Android platforms, offering multiple SDKs for enhanced flexibility.

SPECIFICATIONS

Capacity:

Megapixel: 20 MP

Camera:

Pixel Size: 2.4

Resolution for Photograph (Pixel): 5440x3648

Resolution for Video (Pixel): 5440x3648

Adapter Required: 1x C-Mount

Frame Rate (fps): 15

Image Transmission: USB 3.0

Size of Chip (″): 1/1.8

Extendable Storage: No

Colour Camera: Yes

Shutter: Rolling Shutter

Megapixel: 20

Peltier Cooling: No

Interface: USB

Sensor: CMOS (Sony Exmor)

Software: ToupView/ToupLite

Supported Operating Systems: Windows, Linux, macOS, Android

Video Function: Yes

Spectral Range (nm): 380-650

Sensitivity (mV/s): 462

General:

Series: E3ISPM

Miscellaneous:

Supplier Product Number: E3ISPM20000KPA-E3
