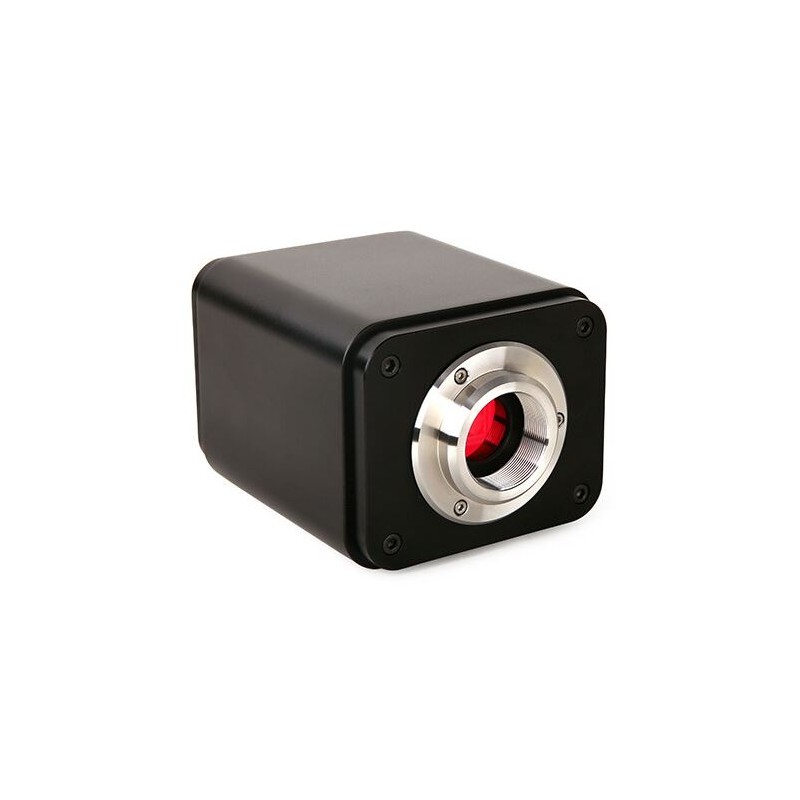

ToupTek Camera ToupCam X7CAM4K 8MPB, color, CMOS, 1/1.2, 2.9 µm, 75 fps, 8 MP, HDMI/LAN/USB

The X7CAM4K series introduces cutting-edge live-view imaging systems featuring 4K resolution (Video) up to 75 FPS (model-dependent). Equipped with Sony CMOS sensors known for their high sensitivity, low dark current, and smear-free imaging achieved through R, G, and B primary color mosaic filters, these cameras are ideal for scientific investigations, teaching purposes (online classes, demonstrations, academic exchanges), medical examinations, or industrial applications.

1488.87 $
Tax included

1210.46 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

X7CAM4K Cameras

The X7CAM4K series introduces cutting-edge live-view imaging systems featuring 4K resolution (Video) up to 75 FPS (model-dependent). Equipped with Sony CMOS sensors known for their high sensitivity, low dark current, and smear-free imaging achieved through R, G, and B primary color mosaic filters, these cameras are ideal for scientific investigations, teaching purposes (online classes, demonstrations, academic exchanges), medical examinations, or industrial applications.

Featuring a standard C-mount interface, these cameras ensure maximum compatibility with a variety of microscope systems. They can function as standalone systems without a PC, when paired with an HDMI monitor or TV, or stream live to a PC via Gigabit Ethernet (LAN) for image and video recording.

All models in the series come with the advanced ToupView/ToupLite video and image processing application, compatible with Windows/Linux/macOS/Android (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).



Scope of Delivery:

Camera, power adapter (EU & US standard), USB mouse, HDMI cable, USB 3.0 cable, CD (driver & software)



SPECIFICATIONS

Capacity:

Megapixel: 8 MP

Camera:

Pixel Size: 2.9

Resolution for Photograph (Pixel): 3840x2160

Resolution for Video (Pixel): 3840x2160

Adapter Required: 0.83x, 0.85x, 1x C-mount

Frame Rate (fps): 75

Image Transmission: HDMI

Size of Chip (″): 1/1.2

Extendable Storage: Yes

Colour Camera: Yes

Shutter: Rolling Shutter

Megapixel: 8

Peltier Cooling: No

Interface: HDMI, USB 3.0, LAN, SD Card

Sensor: CMOS (Sony Exmor)

Software: ToupView/ToupLite

Supported Operating Systems: Windows, Linux, macOS, iOS, Android

Video Function: Yes

Sensitivity (mV/s): 1028

General:

Width (mm): 98.3

Height (mm): 78

Length (mm): 65

Weight (g): 470

Series: X7CAM4K

Field of Application:

Medicine: Yes

Industry: Yes

Education: Yes

Miscellaneous:

Supplier Product Number: X7CAM4K8MPB
