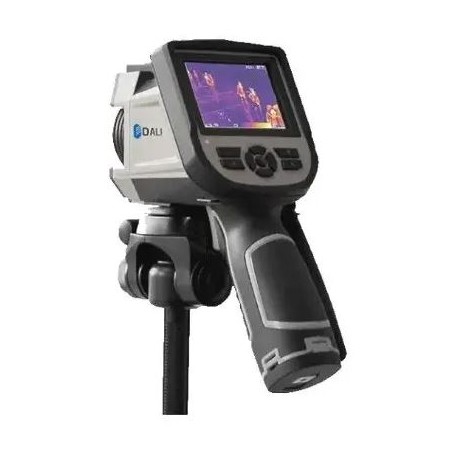

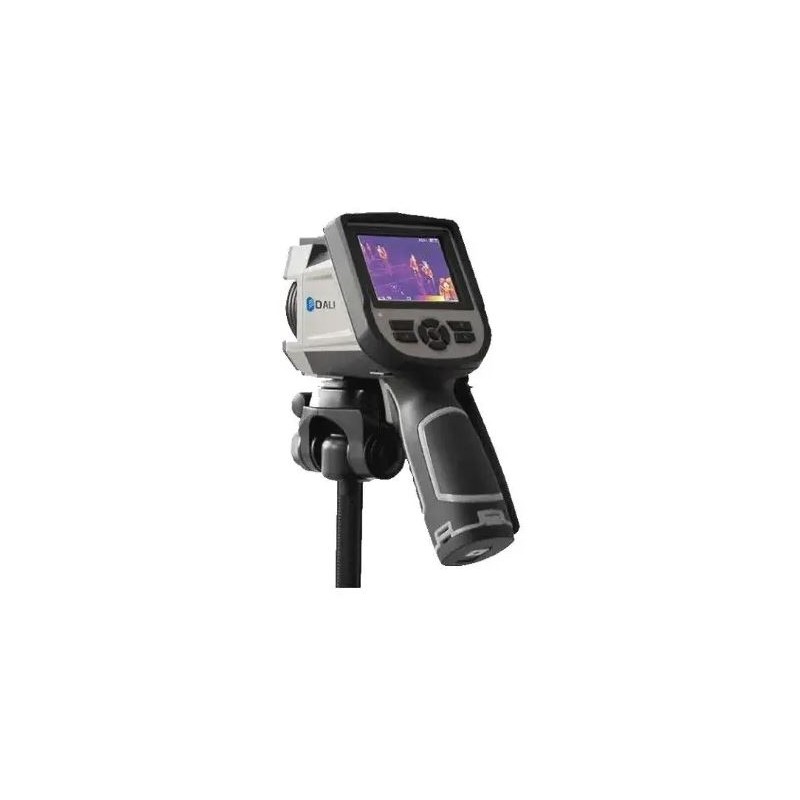

Dali TE-W300H Thermal Screening Camera

The Dali TE-W300H is an advanced infrared thermal imaging camera designed for rapid body temperature screening. It features real-time blackbody calibration and offers a resolution of 160x120 pixels for accurate thermal measurements.

In the Box

• Thermal Camera
• Black Body Calibration Source
• 2 x Tripods
• Video Cable
• Power Adapter

Specifications

Manufacturer: Dali

Model: TE-W300H

Series: Dali Thermal Camera

Origin: China

Production Start: 2020

Warranty: 2 years

SKU: TE-W300H

Optical Specifications

Field of View (FOV): 0°

Instantaneous Field of View (IFOV): 0 mrad

Sensor Type: CMOS

Resolution: 640x480

Pixel Size: 0 μm

Pixel Count: 3MP

Built-in IR Illuminator: No

Thermal Specifications

Field of View (FOV): 25°

Focal Length: 0 mm

Lens Aperture: F1.1

Instantaneous Field of View (IFOV): 2.72 mrad

Sensor Type: Uncooled FPA

Resolution: 160x120

Pixel Pitch: 25 μm

NETD: 0 mK

Refresh Rate: 50Hz

Image and Video Capture

Image Types: Thermal/Optical/Fusion

Video Recording: Yes

Video Output: Yes

Image Resolution: Not specified

Video Resolution: Not specified

Temperature Measurement

Temperature Accuracy: ±0.3°C

Temperature Detection Range: 30°C - 42°C

Face Detection Distance: 2m - 5m

Alarm for High Temperature: Yes

Physical Specifications

Dimensions: 105 mm x 230 mm x 245 mm

Weight: 980g

Material: Plastic, Rubber

Color: Black

Power and Battery

Power Supply: Li-ion Battery

Battery Life: Up to 4 hours

Power Consumption: 0W

Additional Features

Storage Type: Micro SD

Fogproof: Yes

Auto Turn-Off: Yes

Tripod Adaptable: Yes

Supported Languages: English
