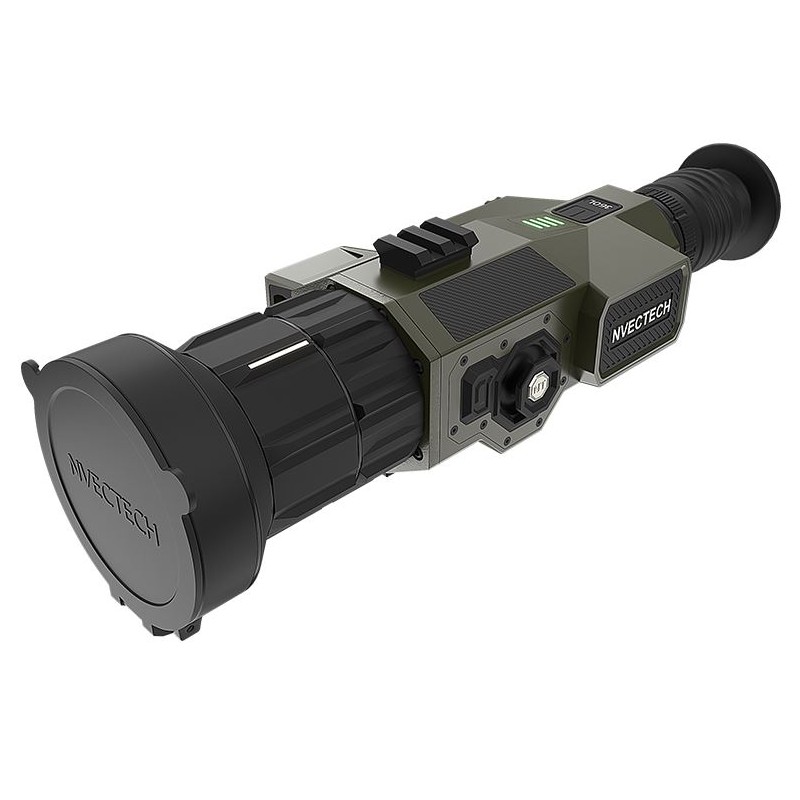

Nvectech Defender 360L - Thermal imaging device

The Defender thermal imaging system is designed for professional use in extreme conditions, offering a high level of accuracy and reliability. Thanks to its innovative features, this system becomes an indispensable tool in hunting and security operations. The main advantages of the system are:

High thermal sensitivity: NETD ≤20mk@300k delivers precise and detailed images, enabling the detection of targets even in the most challenging lighting conditions.

Zoom for all conditions: The system offers smooth optical and digital zoom ranging from 1.8x to 5.5x, allowing for high image quality at varying distances and improving shooting accuracy.

Reliability in all conditions: Rated IP67, the device is resistant to water, dust, and mechanical damage, ensuring stable operation in a temperature range from -25℃ to +55℃.

Innovative combat features: The ballistic calculator, AI rangefinder with a range of 1200 meters, and automatic fire function make this system ideal for complex missions. The CSFBC system and GEO dot function enhance tactical effectiveness.

Long battery life: The integrated battery provides up to 16 hours of continuous operation, making the system a reliable choice for long hunting missions.

Data recording and storage: The device is equipped with 64 GB of storage for photos and videos and supports data transfer via a Type-C port, simplifying the data processing workflow.

Practical and lightweight design: The system has compact dimensions of 379x100x110 mm, making it easy to transport and install. Thanks to the standard Picatinny rail, the device can easily integrate with other accessories.

This thermal imaging system combines advanced technology, high precision, and reliability, making it an ideal tool for any hunting mission.

Specifications:

NETD: ≤20mk@300k
Optical zoom: 1.8x-5.5x
Digital zoom: 1.0-5.0x, smooth and fast
Exit pupil diameter: 45mm
GPS: Yes
Altitude sensor: Yes
Azimuth sensor: Yes
Temperature sensor: Yes
Compass: Yes
Reticle color: Black and white
Maximum recoil force: 10000J
Auto-adjustment: Yes
Manual adjustment: Yes
Adjustment profiles: 5
Picture-in-picture: Yes
AI rangefinder: Yes
Gyroscope: Yes
CSFBC (Combat system from behind cover): Yes
GEO dot: Yes
OSD recording: Yes
Ballistic calculator: Yes
Laser rangefinder: 1200m
Wireless communication: Yes, access point only
Battery life: Continuous operation ≥ 16 hours
Field of view angle: 13.1°x9.8° / 4.4°x3.3°
Lens: 20/60
Resolution / pixel distance: 384 x 288 / 12μm
Spectral range: 8~14μm
Detector type: VOx Microbolometer
Frame rate: 50 Hz
AMOLED display: 0.39 inches, resolution 1024×768
Memory card: 64GB
Photo, recording, playback: Yes
RAV (Recoil Activated Video): Yes
Grid: 7
Battery type: Built-in lithium-ion (2 x 18650)
Type-C port: Data transmission, eyepiece connection
Protection level: IP67, drop resistance 1 meter
Operating temperature: -25℃ to +55℃
Dimensions: 379x100x110 mm
Other accessories: Standard Picatinny Rail, eyepiece
