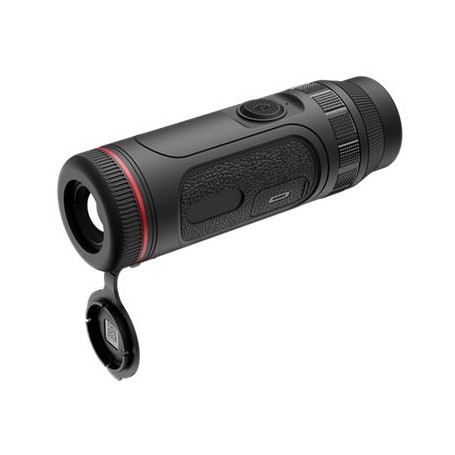

Guide TE411 Handheld Mini Thermal Imaging Monocular

The TE Series Handheld Thermal Imaging Monocular

A compact powerhouse, the TE Series provides high-level night vision at an affordable price. With a highly sensitive infrared detector, it offers various resolutions and lens options to suit your needs across different environments. A quick 10-minute charge delivers an hour of continuous use, making it ideal for any outdoor adventure.

• Resolution: 400×300@12μm
• Weight: Only 288g
• Operation: One-button control
• Durability: IP67 waterproof rating

Sharp Image Quality with 12μm Detector
For crisp and clear visuals, the TE Series is equipped with a powerful 12μm detector. Multiple resolutions and lenses adapt to a variety of activities, ensuring optimal image quality in diverse scenarios.

Effortless Portability
Weighing just over 200 grams, this pocket-sized monocular is as small as a mobile phone and thinner than a wristwatch. Its lightweight design makes it easy to carry and comfortable to hold during extended use.

User-Friendly One-Button, One-Ring Design
Drawing on years of outdoor expertise, the TE Series simplifies operation with a single button and ring, giving you instant access to the menu and key functions, all with streamlined control.

Quick Charge for Extended Use
With its built-in rechargeable battery, the TE Series provides up to 5 hours of runtime. The 20W quick charge feature delivers an hour of power from just a 10-minute charge, ensuring worry-free use during extended outings.

Clear and Comfortable Visuals
The 0.32-inch AMOLED screen offers rich colors and smooth image quality, enhancing the visual experience. With a comfortable eyepiece and 25mm eye relief, you’ll enjoy reduced eye strain during prolonged observation sessions.

Built-In Storage for Audio-Visual Sync
Capture photos, videos, and audio recordings with ease. The 16GB built-in storage allows you to document and share moments instantly, perfect for memorable outdoor experiences.

Upgraded Dual-Band WiFi Connectivity
With enhanced dual-band WiFi, the TE Series provides faster data transfer and extended connectivity up to 26.5 meters. Download updates in seconds and enjoy strong wireless performance for sharing and remote control.

Included Accessories

• Device
• Lens cover
• Eye mask
• Wrist strap
• Quick charging adapter
• USB Type-C cable
• Quick use guide
• Safety Information Manual
• Warranty card

Technical Specifications

Model: TE411
Sensor:

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame rate: 50Hz

Lens:

• Objective lens: 19mm, F1.0
• Field of view: 14.4°×10.8°
• FOV at 100m: 25×19 meters
• Magnification: 1.4x~5.6x
• Detection range: 1000m/1090yd
• Focus: Manual

Display:

• Type: 0.32'' AMOLED, 800×600 resolution
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x

Hardware:

• WiFi: 2.4G, 5G
• Interface: USB Type-C (supports charging)
• Additional features: Microphone, Bluetooth

System:

• Recording: Photo/Video with audio recording
• Storage: 16GB

Power:

• Battery: Built-in rechargeable
• Operating time: 5 hours (supports 20W quick charging)

Environmental:

• Operating temperature: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67 waterproof

Physical Dimensions:

• Weight: 308g (10.86 oz)
• Dimensions: 47×47×148mm (1.85×1.85×5.83 in)
