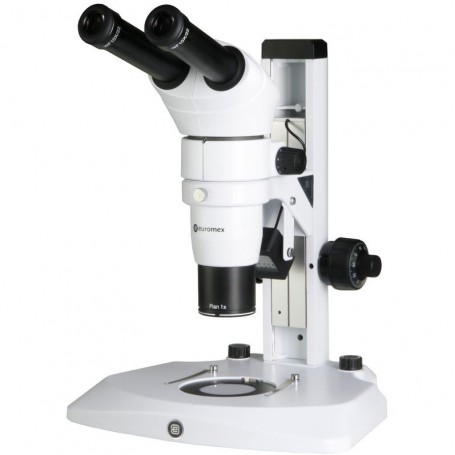

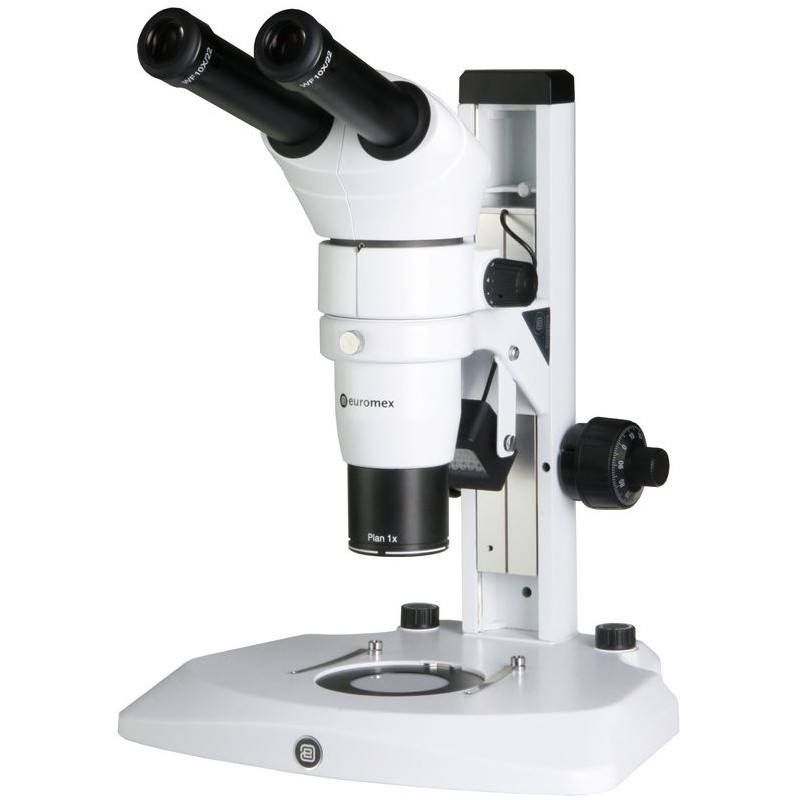

Euromex Stereo zoom microscope DZ.1805, fixed head, 8-64x, LED (47011)

The modern DZ stereomicroscopes are modular, configured around a central zoom body. There are three versions available: one with a 1:6.3 zoom ratio, another with a 1:8 zoom ratio, and a third with a 1:10 zoom ratio. The DZ modular microscope features Extra Wide Field eyepieces, Plan Apochromatic 0.5x, 1x, and 2x common objectives, and an ergonomic stereo head with 5-35° inclined tubes or a fixed stereohead with 45° inclined tubes. The stand includes both incident and transmitted LED illuminations. Along with the Euromex D series, the DZ series belongs to the top-tier stereomicroscopes offered by Euromex.

Six standard configurations are available for magnifications ranging from 8 to 80 times. Custom configurations can be created for magnifications from 4x up to 160 times using the central zoom bodies DZ.1000, DZ.0800, or DZ.0630.

The DZ series is built around a highly precise Infinity Parallel Zoom body equipped with a Plan Apochromatic corrected common main objective. This design provides the necessary high-contrast images and resolving power for high-tech applications. Users can choose between 1:6.3, 1:8, or 1:10 zoom ratio zoom bodies. All three versions can be fitted with three different Plan Achromatic common main objectives with 0.5x, 1.0x, and 2.0x magnifications.

When paired with standard Extended Wide Field EWF10x/22 corrected eyepieces, magnifications up to 160x are achievable. Optional WF 15x/16 and WF 20x/12 eyepieces allow for magnifications up to 320x. Two stereo head versions are available: a fixed 20° bino head or an ergonomic head with adjustable inclination from 5° to 35°.

Stereo Microscope DZ.1805

• Binocular stereo microscope with 1:8 zoom ratio

• Total magnification from 8 to 65x

• Binocular stereo head with 20° inclined tubes

• EWF 10x/22 eyepieces

• Central 0.8 – 6.5x zoom body with click-stop

• Plan apochromatic 1x objective

• Fields of view 27.5 - 4.4 mm

• Working distance is 78 mm

• Flat ergonomic stand with incident and transmitted LED illumination

Specifications

Optics

• Magnification: 8-64

• Image scale: 1:8

• Eyepiece: EWF 10x/22

• Optical system: CMO

Lighting

• Incident light and transmitted light

• Lamp type: LED

• Brightness control: yes

Mechanics

• Working distance: 78 mm

• Viewing posture: 45° angled eyepiece

• Type of build: binocular

General

• Series: DZ

• Fields of application: Industry, Medicine, Education, Biology

• Areas of application: Mineralogy, Metallurgy, Materials technology, University, Materials Science, Marine Biology
