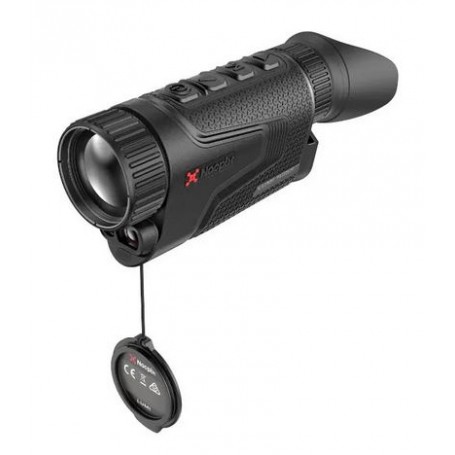

Nocpix Lumi H35R Thermal Monocular

The NocPix Lumi H35R thermal monocular makes a strong impression with its compact design and superior capabilities. It features a 640×512 resolution sensor with 12-micron pixel pitch and 18mK NETD sensitivity, along with an integrated laser rangefinder (LRF) for precise distance estimation.

4295.75 BGN
Tax included

3492.48 BGN net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The NocPix Lumi H35R thermal monocular makes a strong impression with its compact design and superior capabilities. It features a 640×512 resolution sensor with 12-micron pixel pitch and 18mK NETD sensitivity, along with an integrated laser rangefinder (LRF) for precise distance estimation.

Developed with proprietary sensor technology and advanced Reality+ AI image algorithms, the Lumi H35R delivers exceptional image quality that stands out in its class. Its portable size, smaller than many smartphones, makes it incredibly convenient to carry and use.

Key Features:

  • Compact LRF System: 800m range, ideal for hunting and tactical use.

  • Superior Sensor: NETD≤18mK for outstanding performance in harsh conditions.

  • F0.9 Large Aperture: Allows 20% more light compared to F1.0 lenses, producing brighter and clearer images.

  • Reality+ Image Enhancement: Advanced algorithms improve image quality and reduce noise.

  • Silent Operation: Ultra-quiet buttons prevent disturbance during use.

  • Eye-Friendly Color Palettes: Including red and green options to prevent eye fatigue.

  • Replaceable 18650 Battery: With reverse polarity function for ease of use in darkness.

  • 10mm Exit Pupil Distance: Ensures optimal viewing angle and visibility in various situations.

Additional Benefits:
IP67 dustproof rating, lightweight design under 385g, photo and video capabilities with built-in microphone, and 32GB storage.





Specifications:

  • Detector Resolution: 640x512 pixels

  • Detector Pixel Size: 12 μm

  • NETD: ≤ 18 mK

  • Frame Rate: 50 Hz

  • Lens: 35mm F0.9

  • Field of View (H×V): 12.5° x 9.4° / 22m x 16m @100m

  • Digital Zoom: 2.5x - 20x

  • Detection Range: 1800m (Target size: 1.7m×0.5m, P(n) 99%)

  • Eyepiece Diameter: 25mm

  • Exit Pupil Size: 10mm

  • Diopter Adjustment: -5 to +5 D

  • Display Type: AMOLED

  • Display Resolution: 1024x768 pixels

  • Battery: Replaceable 18650

  • Max. Operating Time (22°C): 4.5 hours

  • Laser Rangefinder Range: 800m

  • Microphone: Supported

  • Storage Capacity: 32 GB

  • IP Rating: IP67

  • Operating Temperature: -20°C to +50°C

  • Weight: 385g

  • Dimensions: 147x47x74mm

  • Laser Safety Class: Class 1

The NocPix Lumi H35R combines advanced thermal imaging capabilities with user-friendly design, making it an ideal tool for both hunting and tactical applications.
