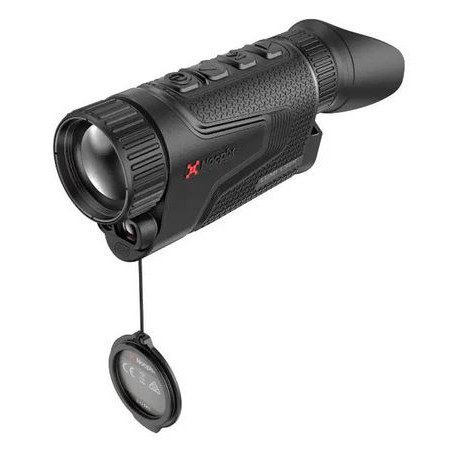

Nocpix Lumi L35R Thermal Monocular
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

New

Nocpix Lumi L35R Thermal Monocular

The NocPix Lumi L35R Thermal Monocular is a high-performance thermal imaging device designed for exceptional clarity in challenging environments such as fog, rain, and low-light conditions. It's suitable for various applications including hunting, wildlife monitoring, security operations, and search & rescue missions.

19456.57 kr
Tax included

15818.35 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The NocPix Lumi L35R Thermal Monocular is a high-performance thermal imaging device designed for exceptional clarity in challenging environments such as fog, rain, and low-light conditions. It's suitable for various applications including hunting, wildlife monitoring, security operations, and search & rescue missions.

Core Sensor Technology:

  • 384×288 resolution sensor with 12μm pixel pitch

  • ≤18mK NETD sensitivity

  • Self-developed sensors for stable performance in extreme temperatures

  • Reality+ AI algorithms for dynamic noise reduction and detail enhancement

Optical Excellence:

  • F0.9 large-aperture lens for 20% more light capture compared to F1.0 lenses

  • 10mm exit pupil diameter for optimal viewing angles

User-Centric Design:

  • Lightweight: <375g

  • IP67 dust/waterproof rating

  • Silent tactile buttons for stealth operations

  • Red/green color palettes to reduce eye strain

Extended Functionality:

  • Built-in LRF with 800m range for precise distance measurement

  • Replaceable 18650 battery with reverse-polarity support

  • 32GB storage for photo/video recording

  • Built-in microphone for audio documentation

Tactical & Recreational Applications:

  • Ideal for hunting, law enforcement, and prolonged field use

  • 4.5-hour runtime with rapid battery-swap capability





Technical Specifications:

  • Detector Resolution: 384x288 pixels

  • Detector Pixel Size: 12 μm

  • Frame Rate: 50 Hz

  • Lens: 35mm F0.9

  • Field of View (H×V): 7.5° x 5.7° / 13m x 10m @100m

  • Digital Zoom: 4x - 16x

  • Detection Range: 1800m (Target size: 1.7m×0.5m, P(n) 99%)

  • Eyepiece Diameter: 25mm

  • Exit Pupil Size: 10mm

  • Diopter Adjustment: -5 to +5 D

  • Display Type: AMOLED

  • Display Resolution: 1024x768 pixels

  • Battery: Replaceable 18650

  • Max. Operating Time (22°C): 4.5 hours

  • Laser Rangefinder Range: 800m

  • Microphone: Supported

  • Storage Capacity: 32 GB

  • IP Rating: IP67

  • Operating Temperature: -20°C to +50°C

  • Weight: 375g

  • Dimensions: 147x47x74mm

  • Laser Safety Class: Class 1

The NocPix Lumi L35R combines advanced thermal imaging capabilities with a compact, user-friendly design, making it an ideal tool for both professional and recreational use in challenging environments.
