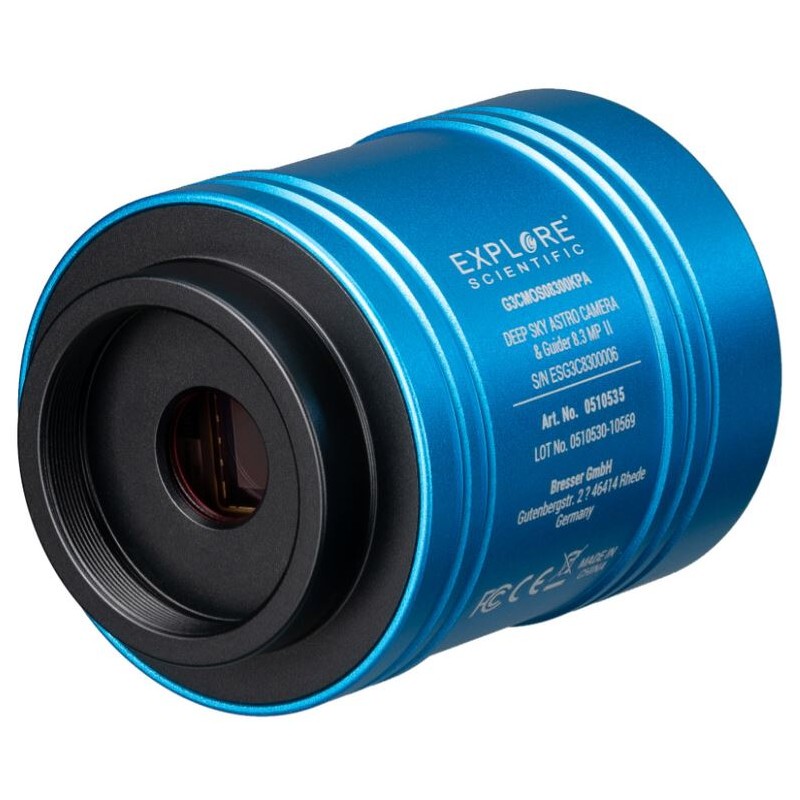

Explore Scientific Camera 8.3 MP II USB 3.0 Color (82781)

This advanced astronomy camera, featuring the new high-sensitive SONY IMX585 Exmor CMOS color sensor, delivers exceptional image results with remarkably short exposure times, even when used with basic telescope equipment. Its versatility extends to functioning as an autoguider, capable of actively tracking the main imaging device when using an SLR or CCD astro camera. This all-round camera excels in producing super-sharp, high-resolution planetary images, with its 4K resolution of 3840x2160 pixels ensuring optimal image quality.

Explore Capture Professional Software

The included Explore Capture professional software offers a comprehensive suite of features:

• Basic functions for image and video capture

• Special functions for image post-processing and guider setup

• Live image display

• Exposure settings

• White balance

• Dark image capture

• Stacking

• Timelapse recording

• And more, all individually configurable

This sophisticated software simplifies the entry into astrophotography. Automatic settings allow for impressive results without extensive prior knowledge, while more experienced users can switch to manual, professional settings as their skills advance.

BSI (Back-Illuminated) CMOS Structure

The back-illuminated CMOS structure significantly improves sensitivity. Unlike front-illuminated sensors where light must pass through metal wiring before reaching the photosensitive layer, the BSI sensor allows light to directly enter the photosensitive surface from the reverse side. This design increases the quantum efficiency, resulting in higher sensitivity and better performance in low-light conditions.

Global Shutter Technology

The camera employs global shutter technology, ensuring uniform exposure time across the entire image area. This feature is crucial for high-precision applications, particularly when capturing high-speed moving objects or dealing with atmospheric agitation, as it produces undistorted imaging and high picture quality.

Color vs. Monochrome

While black and white cameras offer higher sensitivity and resolution, this color camera provides convenience for those who prefer not to use separate color filters and a filter wheel.

Key Specifications

• Sensor: CMOS Chip (Sony IMX585)

• Chip size: 11.14 x 6.26 mm (12.86 mm diagonal)

• Resolution: 8.3 Megapixels (3840 x 2160 pixels)

• Pixel size: 2.9 µm

• Bit depth: 12-bit

• Interfaces: USB 3.0 / ST-4

• Telescope connection: 1.25" & T2

• Operating temperature: -10°C to +50°C

• Max exposure time: 60 minutes

• Min exposure time: 0.0001 seconds

• Frame rate: 43 fps at full resolution

• Full Well Capacity: 9700 e-

• Supported OS: Windows 10 & 11

• Weight: 300g

• Dimensions: 68mm diameter, 85mm length

This camera is particularly suited for autoguiding and capturing detailed images of the Moon and planets. Its aluminum construction and compact size make it a durable and portable option for various astronomical applications.
