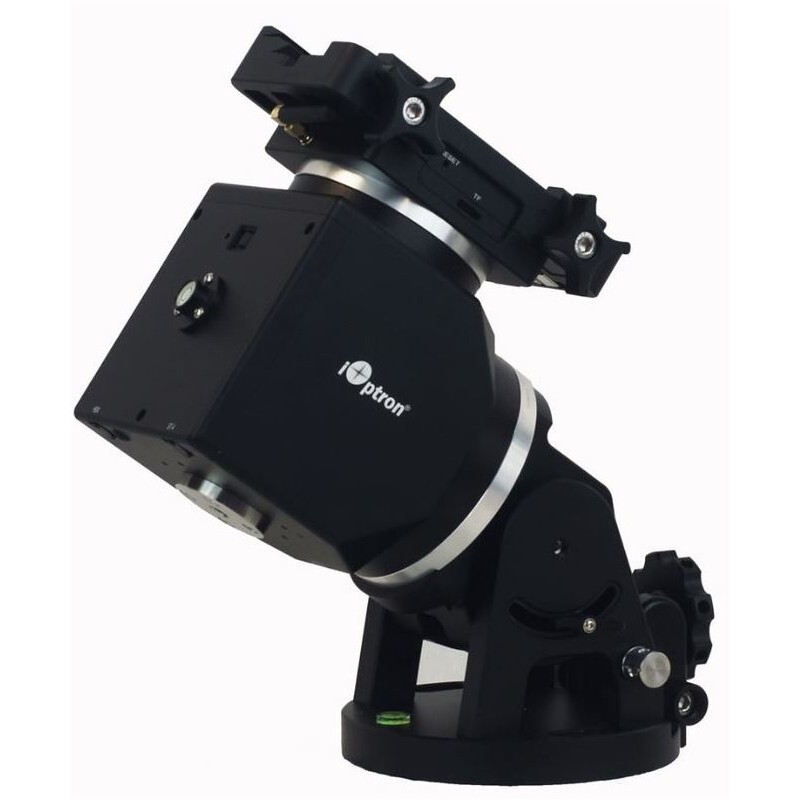

iOptron Mount HAE69 iMate with handset (80213)
The iOptron HAE69B iMate is a cutting-edge dual-function mount designed for both Alt-Az and equatorial (EQ) operation, combining lightweight portability with exceptional payload capacity. Weighing less than 9 kg (19 lbs), this mount can handle payloads up to 31 kg (69 lbs) without requiring counterweights or a shaft, making it ideal for mobile astrophotography and observation setups. Utilizing advanced strain wave gear technology for both RA and DEC movements, the HAE69B delivers unparalleled weight-to-payload efficiency.
20807.6 AED net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The iOptron HAE69B iMate is a cutting-edge dual-function mount designed for both Alt-Az and equatorial (EQ) operation, combining lightweight portability with exceptional payload capacity. Weighing less than 9 kg (19 lbs), this mount can handle payloads up to 31 kg (69 lbs) without requiring counterweights or a shaft, making it ideal for mobile astrophotography and observation setups. Utilizing advanced strain wave gear technology for both RA and DEC movements, the HAE69B delivers unparalleled weight-to-payload efficiency.
The mount’s CNC-machined, black anodized body ensures durability and precision while maintaining a sleek design. Unique features such as an electronic friction brake and power-down memory allow the mount to safely stop during power interruptions and resume tracking or GoTo slews without requiring realignment.
The "iMate" models include a powerful 64-bit ARM-based onboard computer with Wi-Fi, preloaded KStars planetarium software, Ekos control and automation tools, and INDI drivers. This setup supports most current and future devices such as cameras, focusers, and filter wheels, offering users flexibility in brand and model choice. With 32GB eMMC storage and an expandable TF (micro SD) slot for up to 64GB, the iMate can manage fully automated imaging sessions across multiple platforms including Windows, macOS, Linux, iOS, and Android.
The HAE69B iMate features an internal mainboard that eliminates the need for handsets. All accessories connect directly to the iMate system, ensuring no cable drag during operation. The HAE69BEC variant includes a high-precision RA axis encoder for superior tracking accuracy, allowing many users to image without guiding.
Key Features:
-
Advanced Strain Wave Gear Technology: Ensures precise RA and DEC movements.
-
Payload Capacity: Supports up to 31 kg (69 lbs) with a mount weight of only 8.6 kg (19 lbs).
-
Low Periodic Error: Less than ±15 arcseconds with a 270-second gear period.
-
CNC-Machined Construction: Durable aluminum design with a sleek black anodized finish.
-
Electronic Friction Brake: Safely stops movement during planned or unplanned power interruptions.
-
Power-Down Memory: Saves position and location for seamless resumption after power loss.
-
Built-In Open-Source iMate Computer: Preloaded with KStars/Ekos/INDI software for control and automation; includes Wi-Fi connectivity.
-
iMate Ports: Features 3x 12V DC outputs, 2x USB2.0 ports, and 1x USB3.0 port.
-
No Cable Drag: Internal cable management ensures smooth operation without tangling.
-
Dual Saddle Compatibility: Supports Vixen-style and Losmandy-style dovetails for versatility.
-
Integrated ST-4 Autoguiding Port: Ensures compatibility with guiding systems.
-
Optional iPolar Electronic Polar Scope: Enables easy polar alignment for EQ operation.
-
Zero Position Locator: Automatically finds the zero position for precise alignment.
-
Firmware Upgrade Port: USB port allows updates and computer control integration.
-
Aluminum Carrying Case: Included for safe transport.
Specifications:
Capacity:
-
Maximum Payload: 31 kg
Interfaces:
-
Wi-Fi, USB, HC (Hand Controller)
Mounting Saddle:
-
Compatible with Losmandy and Vixen dovetails
Weight:
-
Mount Head Only: 9 kg
Power Supply Requirements:
-
Voltage: 12V DC; Current: 6A
Cable Management System:
-
Internal routing
Materials:
-
Right Ascension Axis: Aluminum
-
Declination Axis: Aluminum
Motor Type:
-
Stepper motors
Drive Type:
-
Harmonic/Strainwave drive
Special Features:
-
GoTo System: Yes (Go2Nova® software)
-
PEC Correction: Yes (Permanent PEC available)
-
Polar Alignment: Easy Polar Alignment (Optional iPolar scope)
Equipment Included:
-
Transport Cases: Yes
-
Power Pack: Yes
General Information:
The HAE69B is part of the HAE series of mounts and supports GPS functionality, Wi-Fi connectivity, autoguiding compatibility, PEC correction, and advanced GoTo controls with a database of 212,000 celestial objects.
The iOptron HAE69B iMate is an excellent choice for astronomers seeking a lightweight yet powerful mount capable of delivering precision tracking, advanced automation features, and compatibility with modern astrophotography equipment across multiple platforms.
