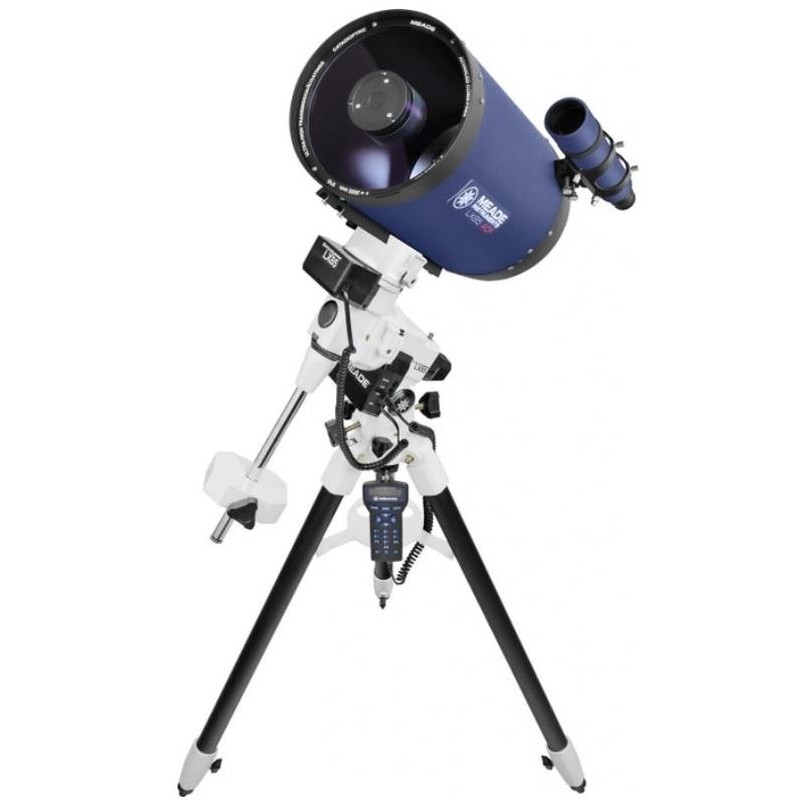

Meade Telescope ACF-SC 203/2032 UHTC LX85 GoTo (59579)

This Schmidt-Cassegrain telescope is a versatile instrument designed for both visual observation and astrophotography. Its compact optical design makes it easy to transport and mount, while the internal focusing system ensures smooth and precise adjustments, even when using additional astrophotography equipment. The telescope features a spherical primary mirror corrected by a special Schmidt plate, resulting in sharp, aberration-free images and a fully sealed optical tube that protects the optics from dust and air turbulence. The secondary mirror is mounted on the correction plate, creating a folded light path that keeps the eyepiece at a comfortable height and reduces leverage stress, making it user-friendly for all ages.

The advanced ACF (Advanced Coma-Free) optics eliminate common mirror aberrations, providing crisp, point-like stars across the entire field of view and a flatter image plane—especially beneficial for astrophotography. Ultra-High Transmission Coatings (UHTC) on the corrector plate increase light transmission by up to 15%, delivering brighter and more detailed views of celestial objects. The LX85 equatorial mount is optimized for astrophotography, featuring powerful servomotors, Meade’s Smart Drive technology for precise tracking, and AudioStar GoTo control with a 30,000-object database and built-in audio commentary. The mount supports autoguiders, is lightweight for portability, and can handle telescopes up to 15 kg.

Please note: The telescope does not include a power cable. Suitable cables and adapters are available separately.

Specifications

Optics
Type: Reflector
Design: ACF-Cassegrain
Aperture: 203 mm
Focal Length: 2032 mm
Aperture Ratio (f/): 10
Resolving Capacity: 0.68 arcseconds
Limiting Magnitude: 13.3
Light Gathering Power: 840x
Maximum Useful Magnification: 406x
Tube Weight: 5.2 kg
Tube Diameter: 241 mm
Tube Length: 460 mm
Tube Material: Aluminium
Coating: UHTC
Tube Construction: Full tube
Focuser: Internal
Eyepiece Connection: 2"

Mount
Type: LX85 Equatorial
Mounting Saddle: Vixen-Style
Motors: Servomotors
Load Capacity: 15 kg
Mount Weight: 4.9 kg
GoTo Control: Yes (AudioStar, 30,000 object database, English language)
Cable Management: External
Power Supply: 12V
Power Consumption: 5000 mA
Interfaces: Autoguider & AUX
PEC Correction: Meade Smart Drive
Polar Alignment: Easy Polar Alignment

Tripod
Type: Aluminium tripod
Tripod Leg Diameter: 45 mm
Accessory Plate: Yes
Maximum Height: 110.5 cm
Minimum Height: 80 cm
Tripod Weight: 5.6 kg

Included Accessories

• 1.25" eyepieces: 26mm, 9mm

• 8x50 finder scope

• 1.25", 90° star diagonal

• 1.25"-SC eyepiece adaptor

• 4 kg counterweight

General
Series: LX85
Total Weight: 25.5 kg

Area of Application

• Astrophotography: Yes

• Moon & Planets: Yes

• Nature Observation: No

• Nebulae & Galaxies: Yes

• Solar Observation: No (only with appropriate solar filter)

Recommended For

• Beginners: Yes

• Advanced Users: Yes

• Observatories: No

This telescope is an excellent choice for ambitious beginners and experienced astronomers looking for a portable, high-performance system for both visual and photographic exploration of the night sky.
