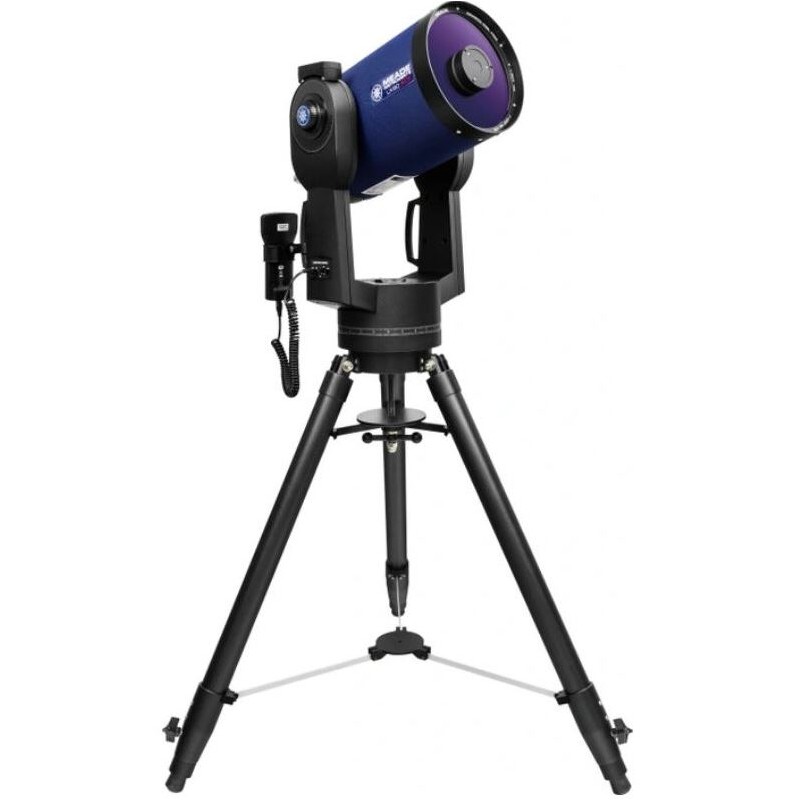

Meade Telescope ACF-SC 203/2000 UHTC LX90 GoTo (76344)

The LX90 mount makes observing the night sky incredibly accessible, even for those with no prior experience. Simply set up the telescope and confirm the reference star suggested by the mount—the rest is handled automatically. The system includes a comprehensive database of over 30,000 celestial objects, including deep-sky objects, stars, planets, the Moon, asteroids, comets, and artificial satellites. The GoTo function allows for quick, precise, and quiet slewing to any object in the database, with nine selectable positioning speeds. The AutoStar hand controller can be updated online, ensuring your object database is always current.

Precision tracking is achieved through motorized 125mm worm drives on each axis, making the LX90 suitable for long-exposure astrophotography. The double fork mount is both lightweight and highly stable, while the adjustable steel tripod minimizes vibrations for optimal performance. The mount can be operated in both altazimuth and equatorial modes and is compatible with external computer control and autoguiders. Power can be supplied via batteries, car battery, or a plug-in adapter.

Included with the LX90 are the AutoStar hand box with software, GoTo functionality for over 30,000 objects, and a built-in battery compartment.

The telescope itself features Schmidt-Cassegrain optics, making it suitable for a wide range of applications, from planetary observation to deep-sky astrophotography. Its compact design reduces stress on the mount and makes it easy to transport. The internal focusing mechanism allows for precise adjustments, even with astrophotography accessories attached. The optical tube is fully sealed, protecting the main mirror from dust and turbulence.

The ACF (Advanced Coma-Free) optics eliminate typical mirror aberrations, producing sharp, point-like stars across the entire field and a flatter image plane—ideal for astrophotography. Ultra-High Transmission Coatings (UHTC) on the corrector plate increase light transmission by up to 15%, resulting in brighter and more detailed views.

The AudioStar controller provides a user-friendly interface with a large object database, guided tours, position display, and PC connectivity. Its built-in speaker offers over four hours of audio commentary about objects in the field of view, enhancing the observing experience.

Specifications

Optics
Type: Reflector
Design: ACF-Cassegrain
Aperture: 203 mm
Focal Length: 2000 mm
Aperture Ratio (f/): 10
Resolving Capacity: 0.68 arcseconds
Limiting Magnitude: 13.3
Light Gathering Power: 840x
Maximum Useful Magnification: 406x
Coating: UHTC
Tube Construction: Full tube
Correction Plate Material: Float glass
Primary Mirror Material: Pyrex glass
Secondary Mirror Material: Pyrex glass
Secondary Mirror Design: Hyperbolic
Main Mirror Construction: Spherical
Ventilation for Central Mirror: No
Corrector Plate Coatings: UHTC
Focuser Connection: 1.25"
Focuser Type: Internal

Mount
Mounting Type: Azimuthal
GoTo Control: Yes
Tracking Speeds: 6.5, 3, 1.5 (degrees/sec); 128, 64, 16, 8, 2, 1 (sidereal speed)
Power Consumption: 1200 mA
Power Supply: 12V
Mount Design: LX90
Encoder: No
GoTo Database: 30,223 objects
Software: AutoStar #497
Precision: 3
GPS: Yes
Alignment Methods: AutoAlign, 2-star
GoTo Language: English

Tripod
Type: Steel tripod
Height: 76–112 cm

Included Accessories

• 1.25" eyepiece: 26mm

• 8x50 finder scope

• 1.25", 90° Amici prism

• AutostarSuite software

General
Series: LX90
Special Recommendation: Yes
Weight of Heaviest Component: 15 kg
Total Weight: 24 kg

Area of Application

• Astrophotography: Yes

• Moon & Planets: Yes

• Nature Observation: Yes

• Nebulae & Galaxies: Yes

• Sun: No (only with appropriate solar filter)

Recommended For

• Beginners: Yes

• Advanced Users: Yes

• Observatories: No

This telescope and mount combination is ideal for both beginners and advanced astronomers who want a reliable, feature-rich system for visual observation and astrophotography.
