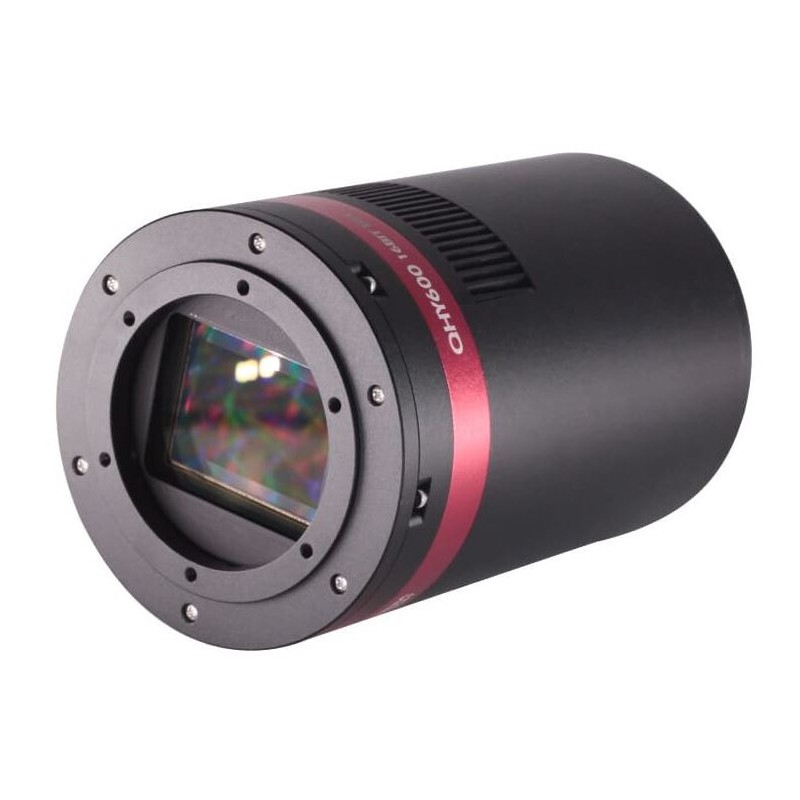

QHY Camera 600PH-M Mono (84754)

The QHY Camera 600PH-M Mono is a high-resolution, cooled monochrome astrophotography camera designed for advanced imaging tasks such as deep-sky, lunar, planetary, and even all-sky observations. It features a large, back-illuminated CMOS sensor for exceptional sensitivity, advanced cooling and anti-dew technology, and robust sealing to prevent humidity and condensation. The camera is ideal for users who require precise control for techniques like LRGB and narrowband imaging, as well as scientific applications like spectrometry and photometry.

Back-Illuminated CMOS Sensor
The back-illuminated structure allows more photons to reach the photosensitive layer, increasing quantum efficiency and sensitivity. This results in better performance when imaging faint celestial objects.

Cooling and Anti-Dew Control
Dual-stage TE cooling, a built-in dew heater, and a sealed sensor chamber with a silicon gel tube keep the sensor dry and free from condensation, ensuring low noise and reliable operation even during long exposures.

Frame Rate

• Full resolution: 4.0 FPS (8-bit output), 2.5 FPS (16-bit output)

• ROI (Region of Interest): Up to 160 FPS at 9600 x 100 pixels

Specifications

Sensor type: CMOS (Sony IMX455)
Sensor size: 36 x 24 mm (full-frame)
Megapixels: 61
Pixel size: 3.76 µm
Photo resolution: 9576 x 6388 pixels
Bit depth: 16 bits
Active cooling: Yes (up to -35°C below ambient)
Interface: USB 3.0
Telescope connection: M54 thread
Color camera: No (monochrome)
Maximum exposure time: 60 minutes
Minimum exposure time: 40 microseconds
Frame rate (full resolution): 2.5 FPS
Read noise: 1.0 – 3.7 e-
Full well capacity: Greater than 51 ke-
Flange focal distance: 14.5 mm
Power supply: 12V (not included)
Shutter type: Rolling shutter
Cable length: 1.5 meters
Quantum efficiency: 87%
Internal memory: 2 GByte DDR3
Dark current: 0.0022 e-/pixel/sec
Filter wheel: Not included
Weight: 780 grams
Diameter: 90 mm
Length: 141 mm

Recommended uses: All-sky imaging, meteor detection, lunar and planetary imaging, deep-sky objects such as nebulae and galaxies
Not suitable for: Use as an autoguider
