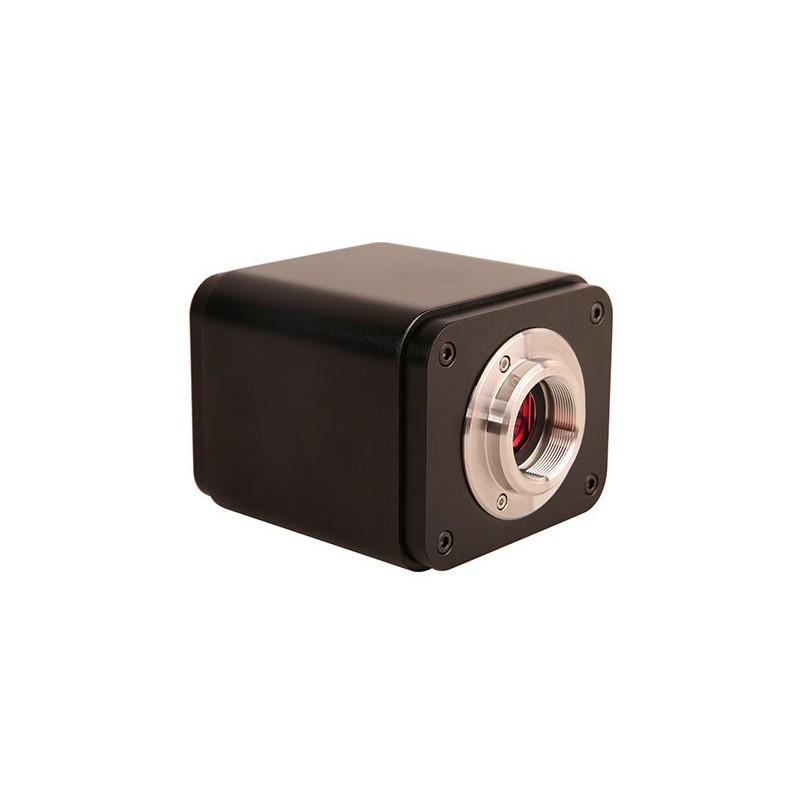

ToupTek Camera ToupCam XCAMLITE4K 8MPB, colour, CMOS, 1/1.2", 2.9 µm, 30/20 fps, 8 MP, HDMI/USB 3.0 (77263)

The ToupTek ToupCam XCAMLITE4K 8MPB is an advanced 8 MP color camera designed for high-quality live-view imaging in medical, educational, and industrial environments. It features a Sony Exmor CMOS sensor that delivers 4K resolution video at 30 frames per second, with high sensitivity, low noise, and no smear due to the use of RGB primary color mosaic filters. The camera can be used as a stand-alone system with an HDMI monitor or TV, controlled directly via an integrated XCAMView interface and a USB mouse, or connected to a computer via USB 3.0 for image and video recording with ToupView software. Its sturdy aluminum alloy housing ensures durability in professional settings.

A standard C-mount interface guarantees compatibility with a wide range of microscope systems. The camera is highly versatile, supporting Windows, Linux, macOS, iOS, and Android, and is also compatible with various programming languages and platforms for advanced customization and measurement tasks.

Key Features:

• 8 MP color camera with Sony Exmor CMOS sensor

• 4K resolution (3840 x 2160 pixels) for both images and video

• Frame rate: 30 fps

• Pixel size: 2.9 µm

• Standard C-mount interface (adapters required: 0.8x, 1x)

• HDMI output for stand-alone operation with a monitor or TV

• USB 3.0 connection for PC use

• Integrated XCAMView for direct camera control without a PC

• Photos and videos can be saved to an SD card

• High sensitivity: 2188 mV/s

• Rolling shutter

• No Peltier cooling

• Sturdy aluminum alloy housing

• Compatible with Windows, Linux, macOS, iOS, and Android

• Video function: Yes

General Information:

• Width: 88 mm

• Height: 78 mm

• Length: 65 mm

• Series: XCAMLITE4K

• Suitable for: Medicine, hobby, industry, education

• Supplier product number: XCAMLITE4K8MPB

Included Accessories:
Camera, power adapter, USB mouse, HDMI 2.0 cable, USB 3.0 cable, CD with driver and software
