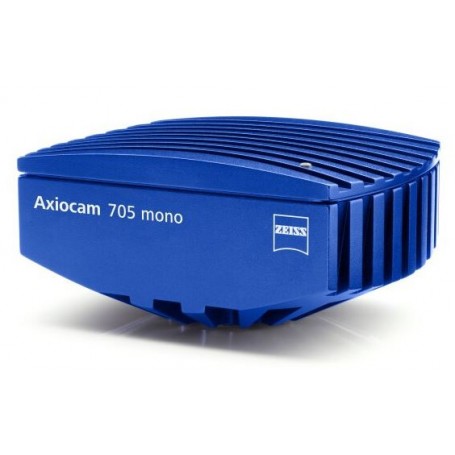

ZEISS Camera Axiocam 705 Mono R2 (D), 5 MP, Monochrome, CMOS, 2/3", USB 3.0, 3.45 µm, 60 fps (78512 / 426560-9061-000)

ZEISS Axiocam Family – Optimized for Scientific Microscopy

ZEISS microscope cameras are specifically engineered for scientific research, laboratory documentation, and advanced imaging applications. Unlike conventional digital cameras, these models are tailored to meet demanding microscopy requirements. Sensor size, pixel dimensions, and resolution options are carefully selected to balance sensitivity, spatial resolution, and frame rate performance.

ZEISS Axiocam 705 Mono R2 – High-Resolution, High-Speed Imaging

The Axiocam 705 mono R2 is a 5-megapixel monochrome CMOS camera designed for fast and highly sensitive imaging. It is particularly suitable for fluorescence microscopy and time-lapse experiments involving dynamic processes. The camera delivers more than 60 frames per second at full 5-megapixel resolution. By reducing resolution or using subsampling and binning, frame rates can reach several hundred frames per second.

Hardware triggering enables precise timing control for demanding multidimensional imaging experiments. Active sensor temperature stabilization and low readout noise make the camera ideal for capturing faint fluorescence signals and sensitive samples. Analogue pixel binning and adjustable signal amplification further enhance sensitivity. With quantum efficiency up to 72% and spectral sensitivity extending from ultraviolet to near-infrared light, the camera supports advanced fluorescence applications.

Key Features

• Scientific 5 MP monochrome camera with 64-bit driver software

• USB 3.0 PCIe x1 interface with 3 m USB 3.0 cable

• Broadband-coated protective glass

• SONY IMX250 Exmor CMOS sensor with Pregius global shutter

• Resolution: 2464 × 2056 pixels (5.07 MP)

• Pixel size: 3.45 µm × 3.45 µm

• Sensor size: 8.5 mm × 7.1 mm (2/3 inch, 11.1 mm diagonal)

• Spectral sensitivity: Approximately 350–1000 nm

• Full well capacity: Approx. 11,000 electrons at 1x gain

• Adjustable gain levels: 1x, 2x, 4x, 8x, 16x

• HDR mode with dynamic range up to 1:25,000

• Global shutter for distortion-free imaging

• Selectable digitization: 8, 12, or 14 bits per pixel

• Exposure time range: 0.1 ms to 60 s

• Temperature stabilization at 18 °C (ambient 18–30 °C)

• Freely adjustable region of interest (ROI)

• Hardware trigger input and output (accessories required)

• USB 3.0 interface, USB 2.0 compatible with reduced speed

• C-mount optical interface

• Maximum lens insertion depth: 5 mm

Performance Overview

• Full resolution frame rate: Up to 60 fps

• Higher frame rates with reduced ROI or subsampling (up to 436 fps depending on configuration)

• Readout noise from 2.20 e- (1x gain) down to 1.15 e- (16x gain)

• Dark current: Less than 0.5 e-/pixel/second at 18 °C

• Dynamic range varies by amplification setting, up to 1:5000

Software and Compatibility

• Compatible with ZEN 3.6 (blue edition) and ZEN core 3.5 or later

• Supported operating system: Windows 10 x64

• Software functions include automatic or manual exposure control, over- and underexposure adjustment, and spot or area metering

Physical Specifications

• Dimensions: 108 × 78 × 43 mm

• Weight: 580 g

• Housing: Blue anodized aluminum with cooling fins

• 1/4 inch standard photo thread

• Power supplied via USB 3.0 or USB 2.0 (maximum 7 W)

• Operating temperature: 5 °C to 35 °C

• Maximum humidity: 80% non-condensing

Scope of Delivery

• Camera

• USB 3.0 cable

• Power supply unit

• IR filter

Technical Overview

• Megapixels: 5 MP

• Photo and video resolution: 2464 × 2056 pixels

• Frame rate: 60 fps

• Sensor type: Sony Exmor CMOS with global shutter

• Sensor size: 2/3 inch

• Pixel size: 3.45 µm

• Spectral range: 350–1000 nm

• Interface: USB 3.0

• Video function: Yes

• Series: Axiocam

Fields of Application

• Industry

• Medicine

• Education

• Scientific research

• Advanced laboratory microscopy

Supplier product number: 426560-9061-000
