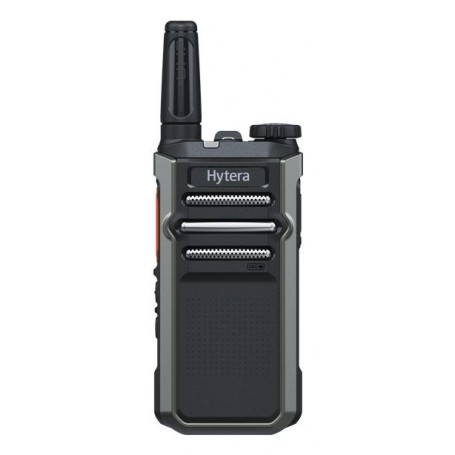

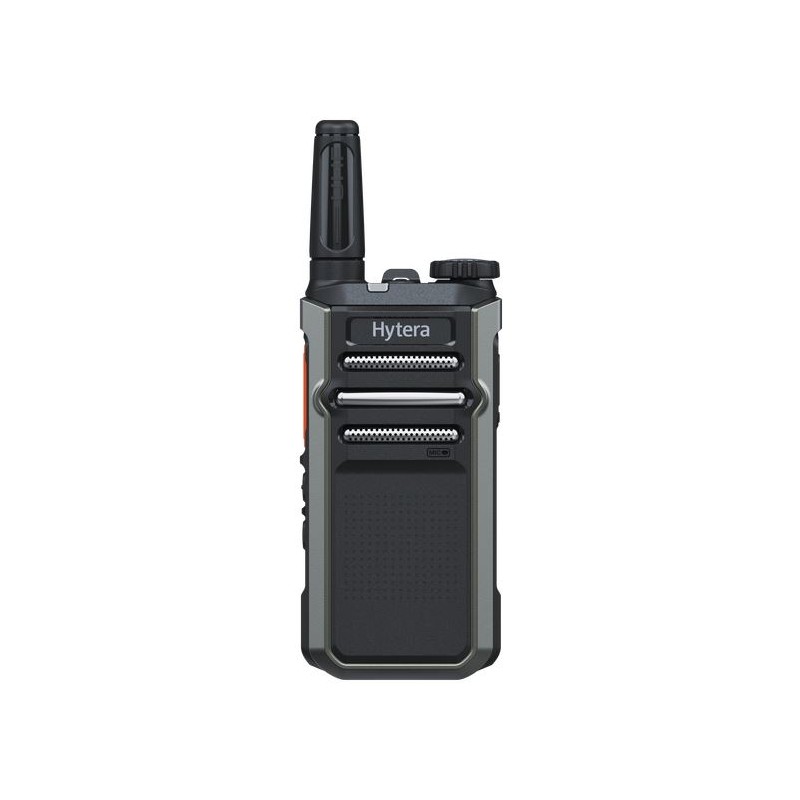

Hytera AP325 Handheld Analogue Radio UHF Uc: 430-470 MHz

The AP325 aims to empower commercial users, such as supermarkets, hotels, and logistics, to enhance efficiency and productivity. The radio provides more efficient and reliable communication with a lightweight body, loud and clear audio, and a powerful battery for ease of use across commercial industries.

Designed for your business:

• Professional noise cancellation algorithm
• Outstanding sound through the design of a large acoustic cavity
• Easy to carry thanks to the integration of a compact body and an extremely compact antenna
• Longer communication distance by brand new RF solution
• Charge, program and update with just one Type-C USB port

EXTENDED COMMUNICATIONS DISTANCE

Stay always connected with brand-new RF solution, 3W TX power and a RX sensitivity up to 0.18 μV

CLEAR AND LOUD AUDIO

Professional noise reduction algorithm | up to 20 dB noise reduction | 3W speaker outputs up to 90dB audio

IMPROVED USER EXPERIENCE

Long-life keys | 3.5 mm jack audio connector | USB Type-C port for programming and upgrading.

FAST CHARGING

100% charged in 2.5 hours | Thanks to USB Type C connectivity it can be easily charged with standard USB cables and power supply units and even USB power banks.

EASY TO CARRY

The very low weight and the 4.5 cm ultra-stubby antenna facilitates carrying anywhere on the body.

SIMPLE AND STYLISH

Metal channel selector knob | metal mesh speaker | dual-shot injection molding & plating case

Technical Specifications

General

Frequency Range Uc: 430-470 MHz

Channels & zones Channel capacity: 32, Zone capacity: 2, Channels per zone: 16

Channel Spacing 12.5kHz/20kHz/25kHz

Operating Voltage 3.8V (rated)

Battery 2200mAh Li-Polymer (built-in)

Battery Life (5/5/90 Duty Cycle, High TX Power) 10 hours

Frequency Stability ±0.5ppm

Antenna Impedance 50 Ω

Dimensions (H x W x D) (mm) 118 x 55 x 25 mm

Weight (with antenna & battery) 130 g

Bluetooth not available

Receiver

Sensitivity 0.18μV (12dB SINAD)

Adjacent Channel Selectivity IA-603: 60 dB @12.5 kHz / 70 dB @20/25 kHz, ETSI: 60 dB @12.5 kHz / 70 dB @20/25 kHz

Intermodulation TIA-603: 70 dB @12.5/20/25 kHz, ETSI: 65 dB @12.5/20/25 kHz

Spurious response rejection TIA-603: 70 dB @12.5/20/25 kHz, ETSI: 70 dB @12.5/20/25 kHz

Blocking TIA-603: 80 dB, ETSI: 84 dB

Hum and Noise 40 dB @12.5 kHz, 43 dB @20 kHz, 45 dB @25 kHz

Rated Audio Power Output 0.5 W

Rated Audio Distortion ≤3%

Audio Response +1~-3dB

Conducted Spurious Emission <-57dBm

Transmitter

RF Power Output 3W / 1W

FM Modulation 11K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz

Conducted/Radiated Emission -36dBm＜1GHz, -30dBm＞1GHz

Modulation Limiting ±2.5kHz @12.5kHz, ±4.0kHz @20kHz, ±5.0kHz @25kHz

FM Hum & Noise 40dB @12.5kHz, 43dB @20kHz, 45dB @25kHz

Adjacent Channel Power 60dB @12.5kHz, 70dB @20/25kHz

Audio distortion ≤3%

Environmental

Operating Temperature -20℃ to +50℃

Storage Temperature -40℃ to +85℃

ESD - to be checked ??? IEC 61000-4-2 (Level 3), ±4 kV (contact), ±8 kV (air)

Dust and Water Intrusion none
