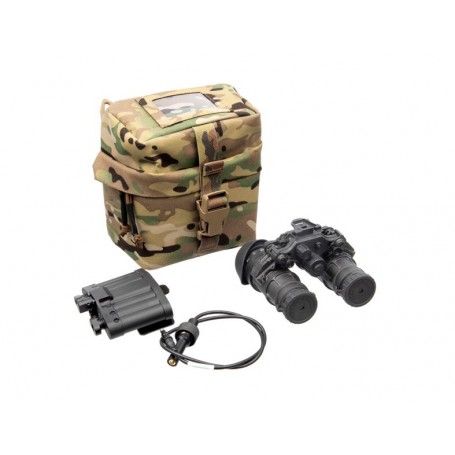

AGM UNVG APW Dual Tube Night Vision Goggle/Binocular (12UN41284124111)

The AGM UNVG is a sophisticated dual-channel night vision system featuring advanced multi-coated optics in a durable, compact composite housing. This versatile device offers exceptional performance in challenging low-light conditions, equipped with an Advance Performance Auto-Gated Gen 2+ P45-White Phosphor Image Intensifier Tube (IIT).

Key Features:

• Bright Light Protection: Automatic cut-off safeguards the high-quality photocathode tube.

• Manual Gain Control: Adjusts image brightness for optimal quality in varying light conditions.

• Flexible Configuration: Independent pod movement allows single or dual eye setups.

• Auto Power-Off: Each tube automatically turns off when flipped up.

• Extended Battery Life: Up to 15 hours on a single AA battery, or 60 hours with the external battery pack.

• Built-in IR Illuminator: Enables visibility in total darkness.

• Mounting Versatility: Compatible with standard dovetail type headsets and helmet mounts.

Additional Features:

• Low power consumption design

• Corrosion and impact-resistant PEEK+Glass fiber housing with matte black finish

• Quick attachment dovetail base

• PVS-14-style compatibility for lenses and attachments

• Ultralight design (17.6 oz / 500 g) for improved mobility and reduced fatigue

• Improved IP Stop design for customizable tube positioning

Package Includes:
Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shields (2), Sacrificial Windows (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery

Specifications:

• Image Intensifier Tube: Advance Performance Auto-Gated Gen 2+ P45-White Phosphor IIT

• Resolution: 64 lp/mm

• Magnification: 1x

• Lens System: 25mm, F/1.23

• Field of View: 40°

• Exit Pupil Diameter: 14 mm

• Focus Range: 0.25 m to Infinity

• Diopter Adjustment: -6 to +2 diopters

• Interpupillary Distance: 56 to 72 mm

• Eye Relief: 25mm

• Manual Gain Control: Yes

• Bright Light Cut-Off: Yes

• Infrared Illuminator: Yes

• Battery Type: One AA (1.5 V) or External Battery Pack (four AA or two CR123A)

• Battery Life (at 20°C, IR off):

  • One AA: up to 15 hours

  • External Battery Pack (four AA): up to 60 hours

  • External Battery Pack (two CR123A): up to 40 hours

• Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)

• Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)

• Protection Level: IP67

• Weight (without batteries):

  • Goggles: 500 g (1.1 lb)

  • External Battery Pack: 250 g (0.55 lb)

• Overall Dimensions: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
