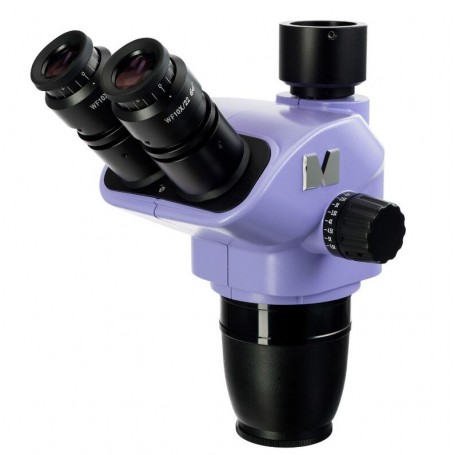

MAGUS Stereo zoom head 8B 6.5x-55x trino Greenough (85498)

The MAGUS Stereo zoom head 8B 6.5x-55x trino Greenough is designed for use with a universal stand and focus mount, allowing for detailed observation of three-dimensional objects. It preserves the virtual volume and fine surface structure of samples, making it well-suited for applications such as restoration, soldering, assembly, and quality control. The Greenough optical design features a 15° stereo angle, providing excellent depth of field and true three-dimensional imaging. The trinocular head allows for easy connection of a digital camera via a C-mount adapter for documentation or live display.

The head comes with 10x/22mm eyepieces, which offer diopter adjustment and a long eye relief, making them comfortable for eyeglass wearers. Magnification can be smoothly increased up to 8.4x with no loss of focus, delivering an upright, spatially accurate three-dimensional image. Auxiliary objective lenses can be added to extend the magnification range and adjust the field of view or working distance to suit specific requirements.

Specifications:
Optics:

• Lighting: None

• Eyepieces: 10x (WF 10x/22 mm)

• Magnification: 6.5x to 55x

• Optical system: Greenough

Mechanics:

• Build type: Trinocular

• Working distance: 105 mm

• Viewing posture: 45°

• Focusing: Coarse movement

• Pupillary distance: 54–75 mm

• Eyepiece tube diameter: 30 mm

• Wide-angle eyepiece: Yes

General:

• Weight: 5000 g

• Height: 290 mm

Field of application:

• Hobby: Yes

• Education: Yes

• Maker: Yes

• Naturalist: Yes
