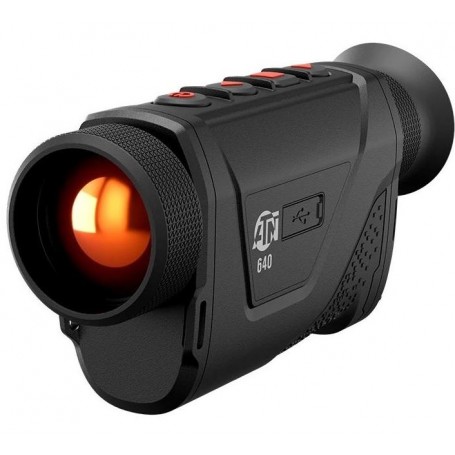

ATN BlazeHunter 2.5-20x,640x512, Pro Thermal Imaging Monocular (TIMNBLH635)

The ATN BlazeHunter series offers advanced thermal imaging monoculars designed for demanding hunters and nature enthusiasts. These devices combine a compact, lightweight build with exceptional image quality, allowing for precise tracking and observation, even in challenging conditions.

The core of the ATN BlazeHunter 635 2.5-20x thermal scope is a low-noise sensor with a resolution of 640 x 512 pixels and a thermal sensitivity (NEDT) of 18 mK. The captured image is displayed on an OLED screen with a resolution of 1440 x 1080 pixels. The electronics are engineered for minimal energy consumption while maintaining maximum functionality, so a standard 18650 battery can power the device for up to seven hours on a single charge.

The optoelectronic system is enclosed in a lightweight, weather-resistant housing that meets the IP67 standard for durability.

Key Features

• Low-noise sensor with 640 x 512 px resolution and 12 µm pixel size

• Thermal sensitivity of 18 mK

• Adjustable magnification from 2.5x to 20x

• OLED display with 1440 x 1080 px resolution and selectable color palettes

• Extremely high detection range

• Ultra-lightweight, waterproof casing

Included Components

• ATN BlazeHunter 635 thermal imaging monocular 2.5-20x 640x512

• Two 18650 batteries

• Charger with cable

• Soft cover

• Carrying bag

• Eye cup

• Optics cleaning cloth

• Neck strap

• Documentation

Technical Specifications

• Sensor size: 640 x 512 px

• Refresh rate: 50 Hz

• Pixel diameter: 12 µm

• NEDT: less than 18 mK

• Lens: 35 mm

• Magnification: 2.5x to 20x

• Field of view: 12.4° x 10°

• Detection range: 1830 m (2000 yards)

• Exit pupil distance: 15 mm

• Display: OLED, 1440 x 1080 px

• Color palettes: white hot, black hot, white hot + red, green hot, sepia, ironbow

• Power supply: 18650 batteries

• Battery life: 7 hours

• Mobile app compatibility: Yes, ATN BLAZE APP

• Waterproof: Yes, IP67

• Operating temperature: -30°C to 50°C

• Dimensions: 152 x 42 x 74 mm

• Weight: 320 g

Warranty

3-year manufacturer warranty
